4-6 Maintenance
3 Open (lift) the Input Guide Roller assembly, as shown in Figure 4-2.
Clean the rollers with Isopropyl alcohol and a clean lint-free cloth.
Check also for accumulations of paper dust or toner on the base plate.
4 Open (lift) the Document Transport Ball Track assembly, as shown in
Figure 4-2. Clean the green belt under the ball track, both Sensor
Reflectors and both Sensors (under the holes in the base plate) with
Isopropyl alcohol and a clean lint-free cloth. Check also for
accumulations of paper dust or toner on the base plate.

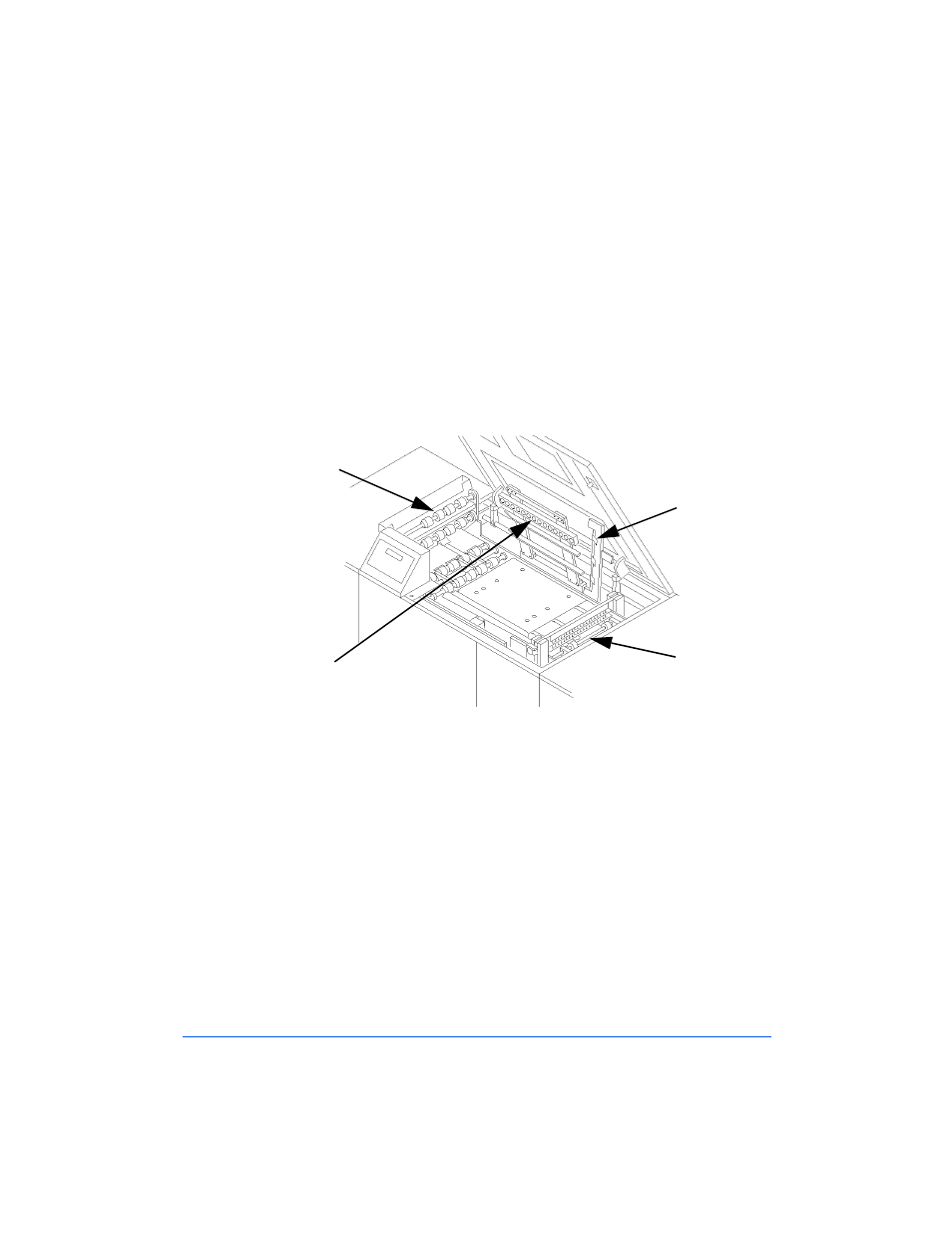

Figure 4-2: The Internal Paper Path Components
5
Open (lift) the Sheet Eject Strap assembly. Clean the green belts under
the straps, the Sensor Reflector and the Sensor (under the hole in the
base plate) with Isopropyl alcohol and a clean lint-free cloth. Clean the
Side Guide and the Infeed Guide, as shown in Figure 4-3. Check also
for accumulations of paper dust or toner on the base plate.
Input Guide
Roller
Document
Transport Ball
Track
Sheet Eject
Strap
Output Guide
Roller
