Xerox 16 Series - Manual (Page 48)

2-6 General Procedures
Removing and Replacing Die Pins
1 To remove and replace individual die pins, slide the Pressure Bar
release levers to the side and lift the Pressure Bar off of the Die, as
shown in Figure 2-4.
You may now remove and replace individual die pins.

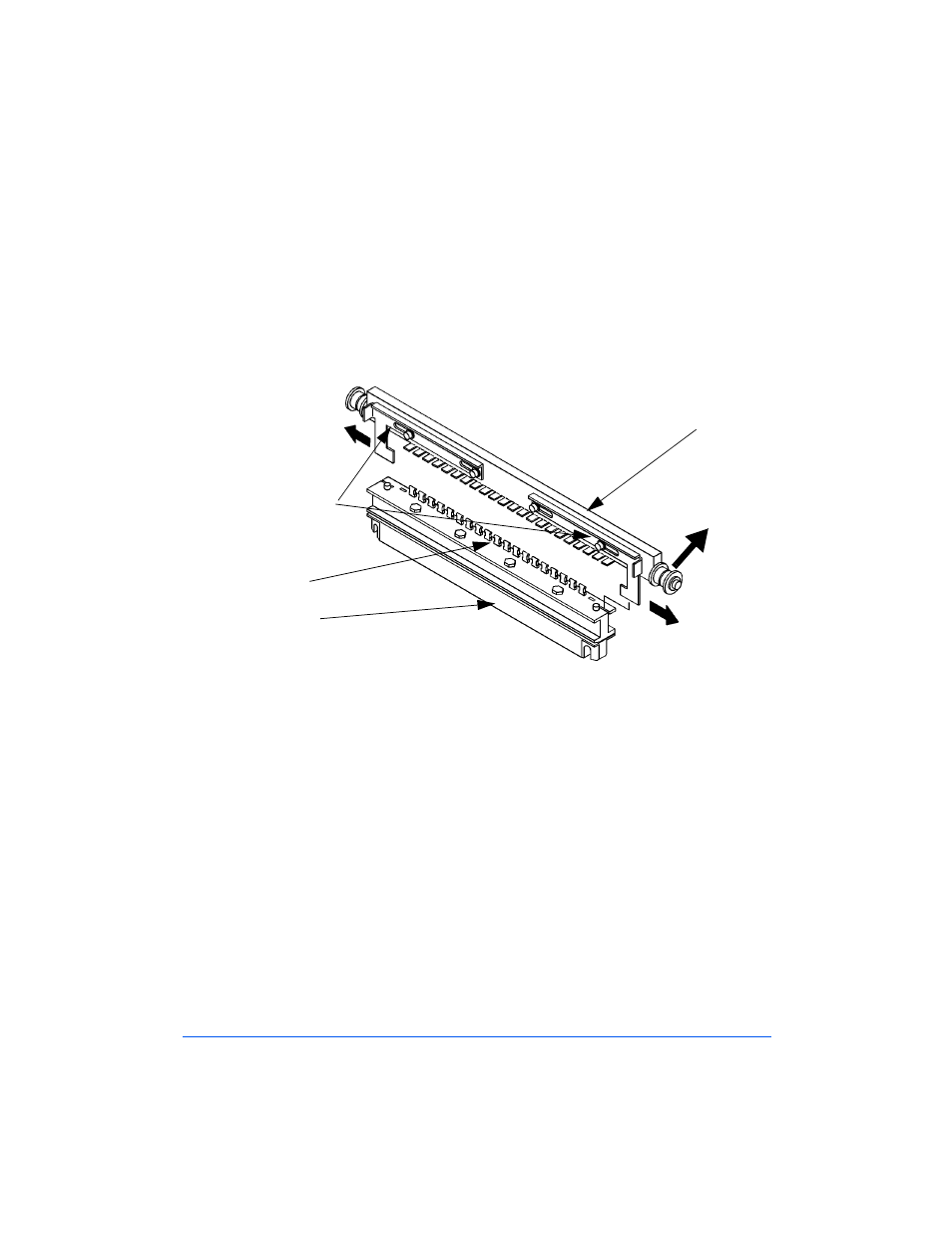

Figure 2-4: Accessing the Die Pins
2 Reverse this procedure to reinstall the Punch Arm.
Pressure Bar
Release
Die Pins
Die Base
Pressure Bar
Lift Pressure
Bar in this
direction
