Setting the Side Guide 2-9
2
Setting the Side Guide
The purpose of this procedure is to ensure that each sheet of paper maintains
registration as it passes through the FusionPunch II.
Note: Use tab stock or cover stock when performing these procedures.
1 Press the STOP/RESET button.
2 Open the Punch Cover.
3 Open the Document Transport Ball Track assembly, as shown in
Figure 2-7.
4
Open the Sheet Eject assembly, as shown in Figure 2-7.

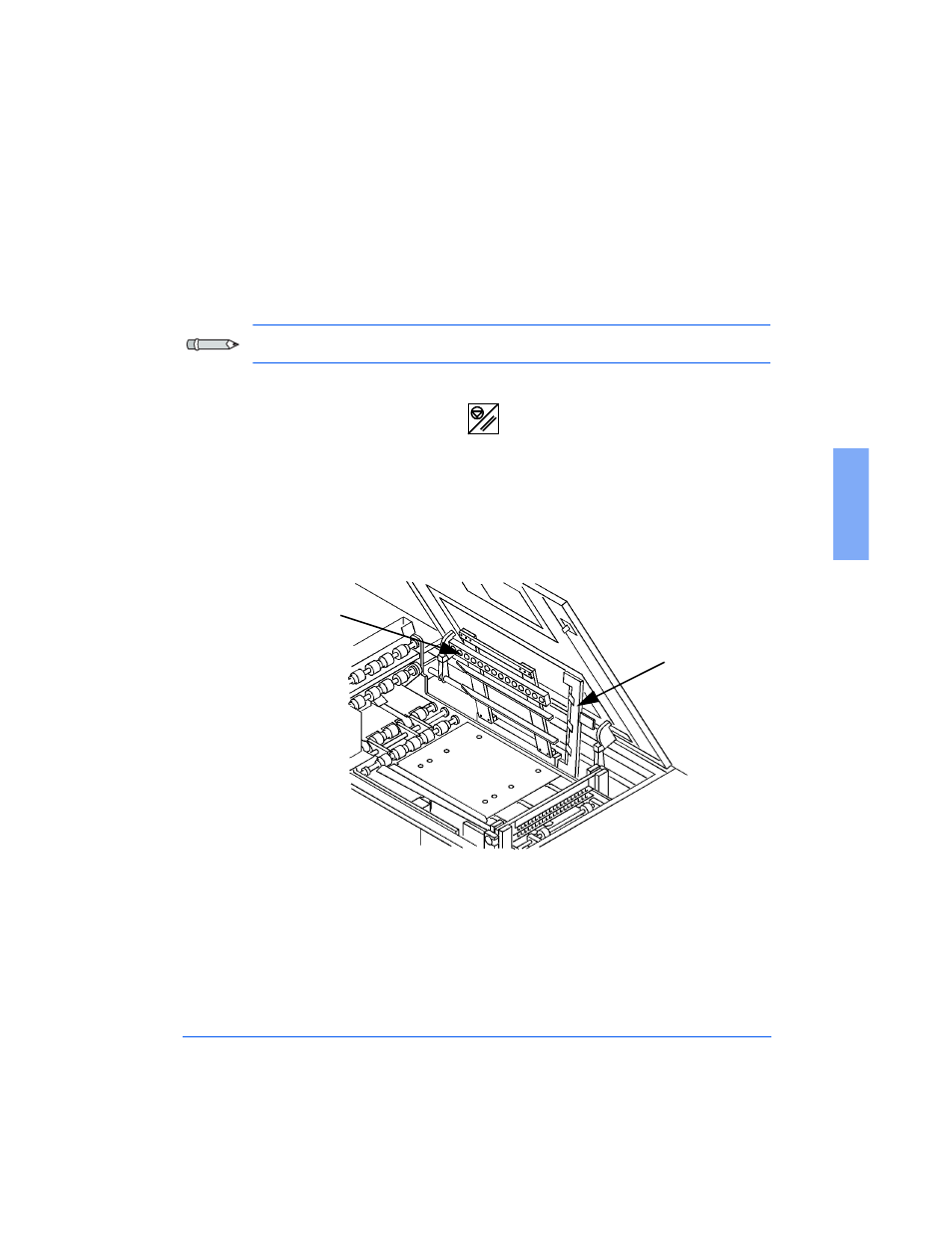

Figure 2-7: Preparing to Adjust the Side Guide
Document
Transport Ball
Track Assembly
Sheet Eject
Strap Assembly
