Changing Die Sets 2-3
2
Changing Die Sets
WARNING: Switch OFF (O) the main power switch before beginning this
procedure.
1
Open the Right Punch Door, as shown in Figure 2-1.
2 Open the Punch Cover, as shown in Figure 2-1.

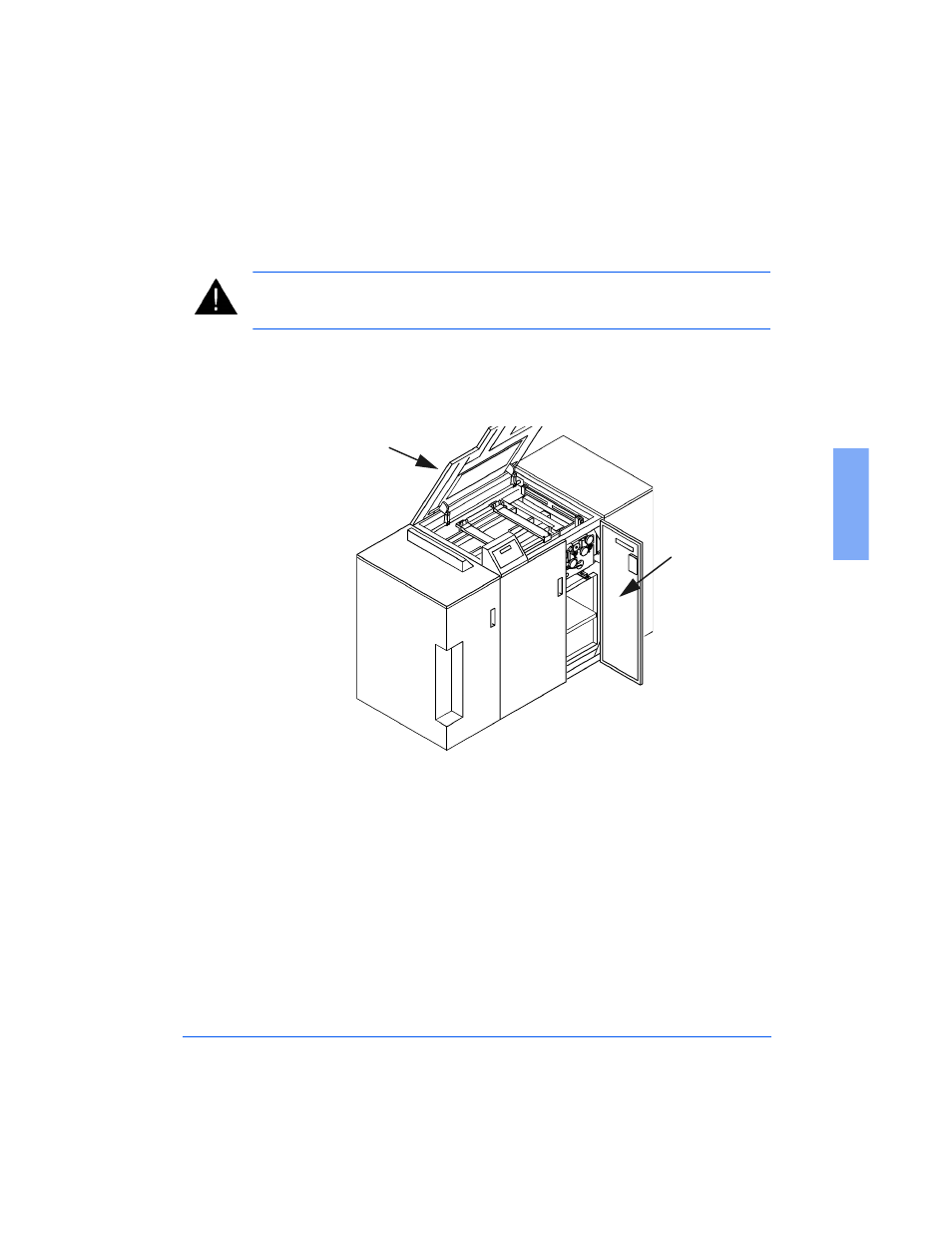

Figure 2-1: Opening the Punch Door and Cover
Right Punch
Door
Punch Cover
