3-4 Troubleshooting
4 Open (lift) the Input Guide Roller assembly, the Document Transport
Ball Track assembly and the Sheet Eject Strap assembly, as shown in
Figure 3-2 and clear any paper that may be jammed in that area.

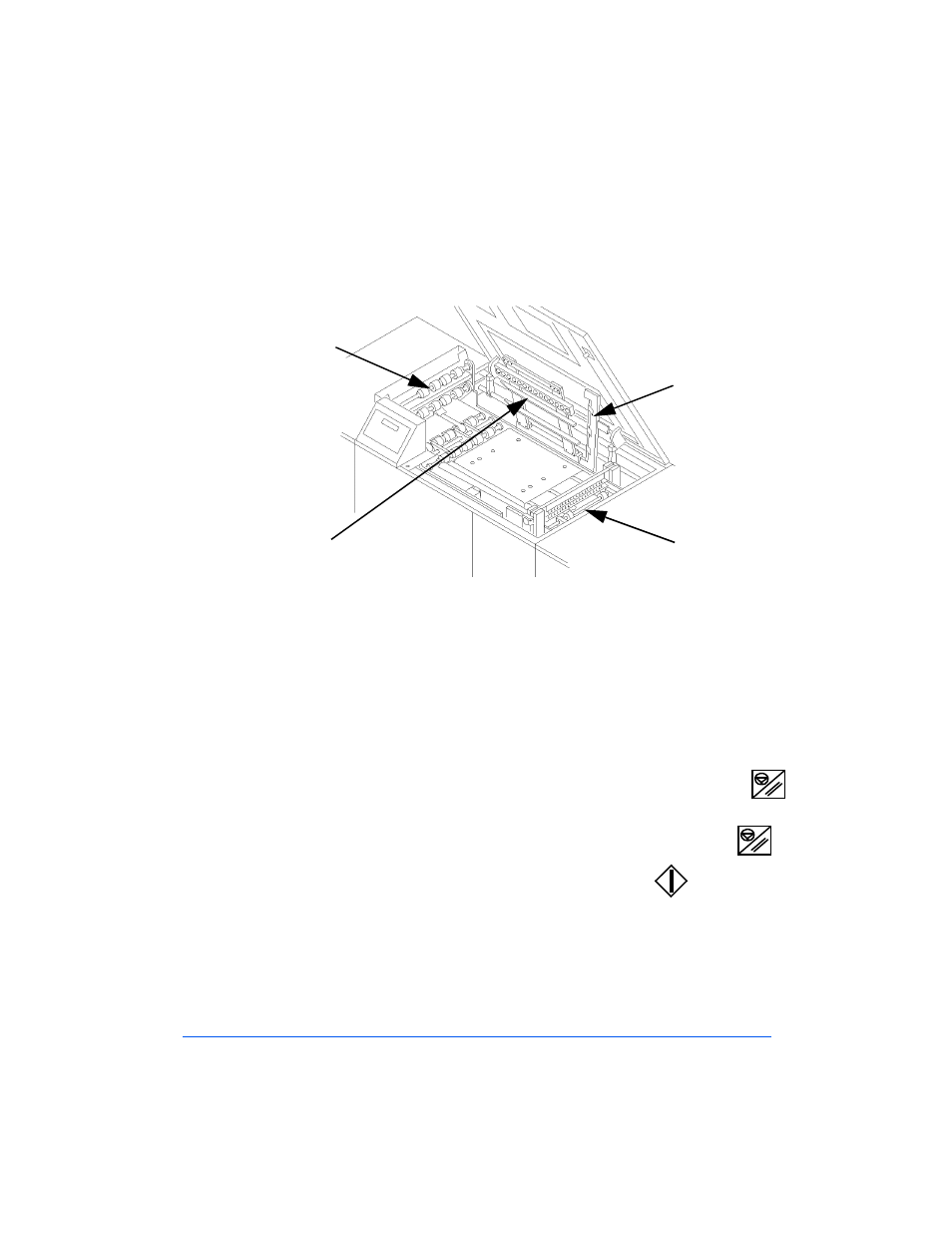

Figure 3-2: The Internal Paper Path Components
5 Remove the Output Guide Roller assembly, as shown in Figure 3-2 and
clear any paper that may be jammed in that area.
6 Reinstall the Output Guide Roller assembly and ensure that all
assemblies are locked down. Then, close the Top Covers.
7 Open the Bypass Stacker Top Cover and clear any paper that might be
jammed in that area.
8 If the FusionPunch II is set up in Cycle Up mode, press the Stop/Reset
button and the job will restart automatically.
9
If the FusionPunch II is set up in Online mode, press the Stop/Reset
button to clear the error message and then press Start .
Input Guide
Roller
Document
Transport Ball
Track
Sheet Eject
Strap
Output Guide
Roller
