Right side and Back side

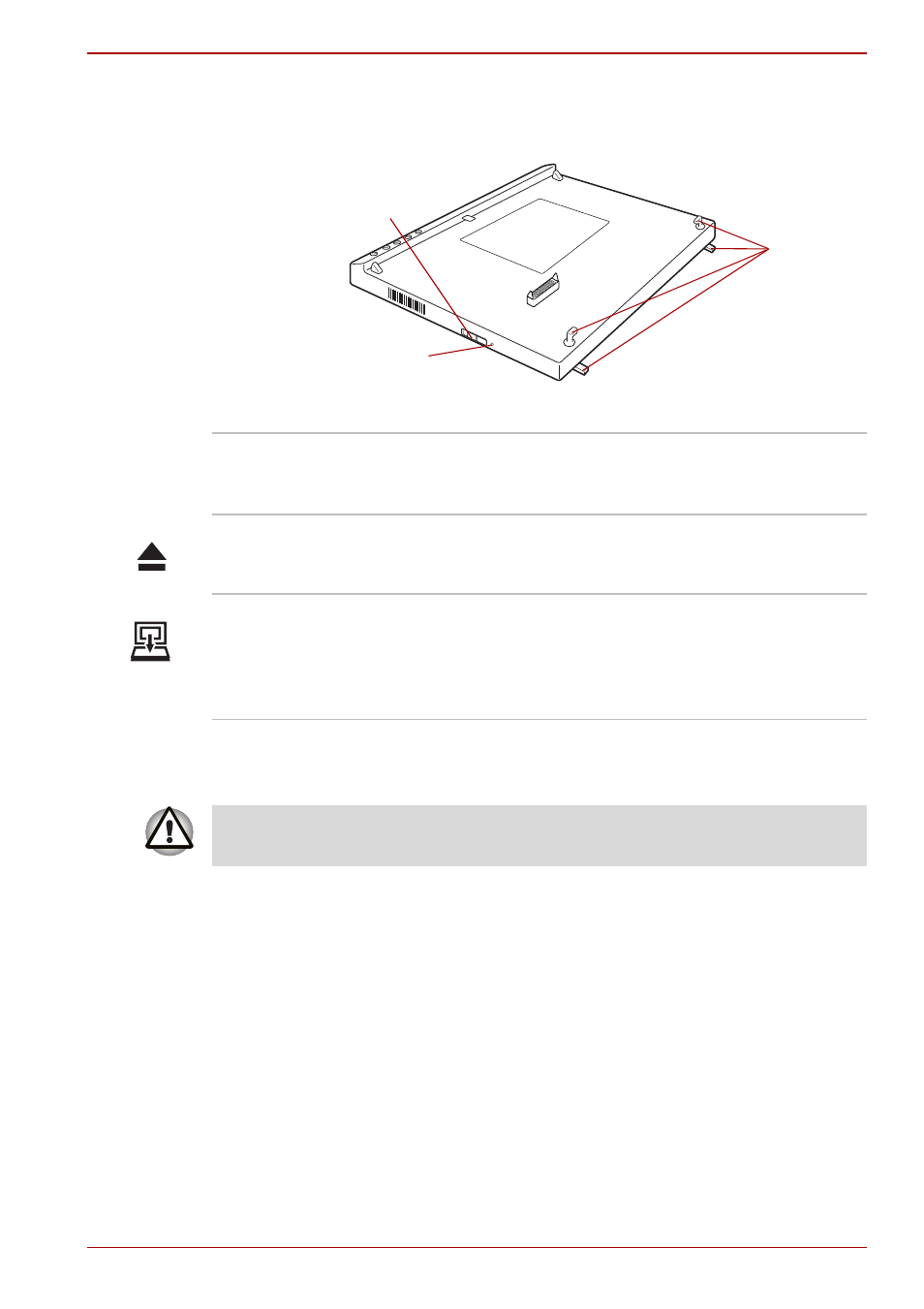

The following figure shows the libretto DVD Dock's right and back side.
Figure 8-12 Right and back side the libretto DVD Dock
Connecting the libretto DVD Dock
Follow the steps below to connect the computer to the libretto DVD Dock.
1. Turn the computer's power off.
2. Disconnect all cables connected to the computer.
3. Place the computer on the libretto DVD Dock so that the Docking holes
of the front-side of the computer are aligned with the libretto DVD
Dock's Front Latches.
Undock switch
Eject switch indicator
Lock lever
Lock lever Rotating this will lock the libretto DVD Dock
connected to the computer so that it cannot be
removed.
Undock switch Slide this switch to the left to eject the computer
from the DVD Dock.
Docking LED This indicator lights when the libretto DVD Dock
is connected to the computer. When the eject
operation is carried out, you should check that
this indicator is not lit before removing the
computer.
Before you connect the libretto DVD Dock, make sure you turn off the
computer and disconnect the AC Adaptor and any other external devices.
