030-300198 Rev. D 87 March 2003
WireSpeed Dual Connect NAT Router User Guide

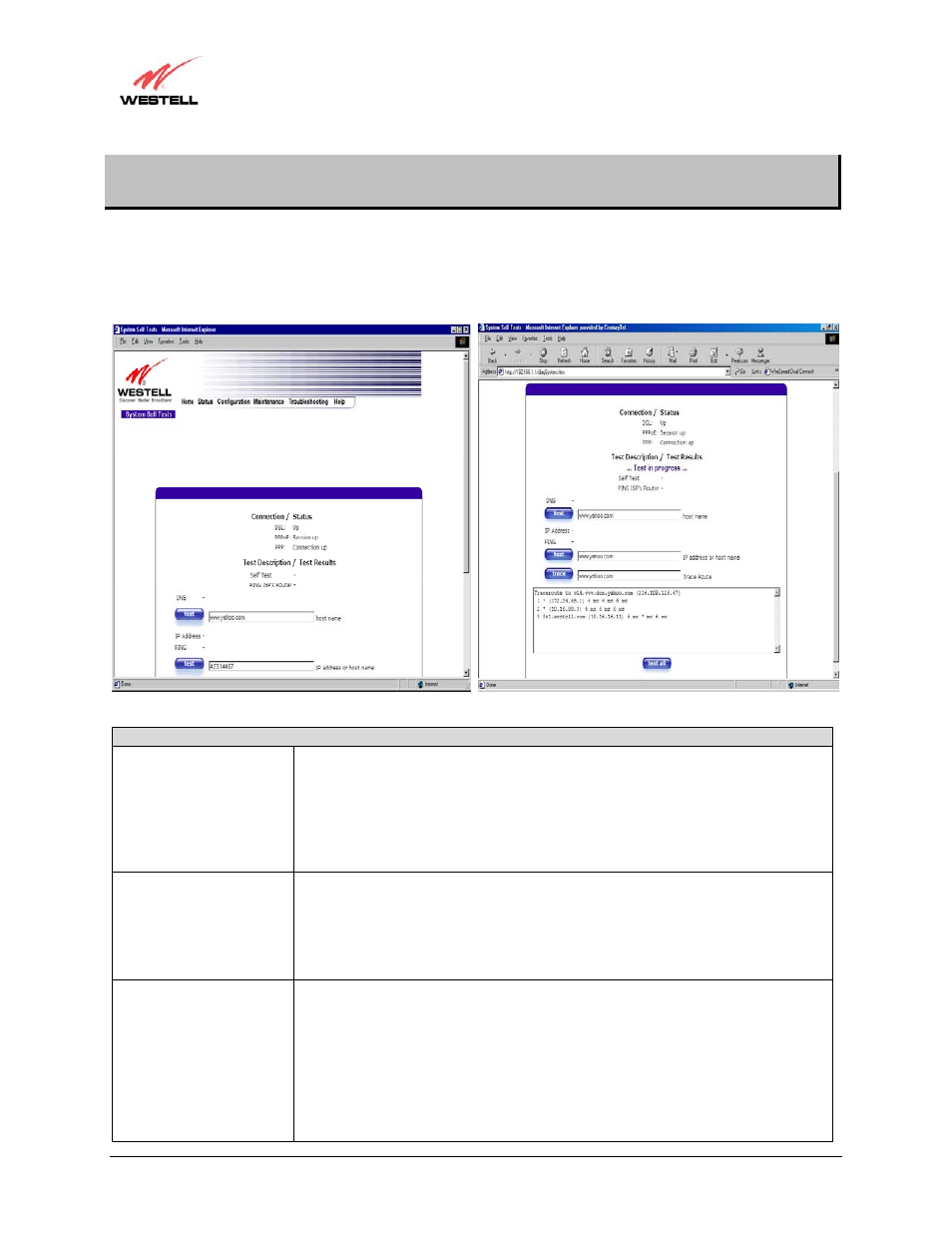

9.6 Troubleshooting
System Self Tests
The following settings will be displayed if you select System Self Tests from the Troubleshooting menu.
Click on test to run a diagnostic test on your Router’s connection.
Connection/Status
DSL The Router checks the status of the Router connection.
Possible responses are:
UP: The Router is operating correctly and has obtained synchronization with the
opposing network device.
DOWN: The Router is operating correctly, but has not synchronized with the
opposing device.
PPPoE Indicates that a PPPoE session is or is not established.
Possible responses are:
Session UP: A valid PPPoE session has been detected.
No Session: Currently there is no active PPPoE session established.
Initiating Session: A PPP session must be connected from the homepage screen.
PPP Indicates that a PPPoE or PPPoA session must already be established.
Possible responses are:
Connection UP: The Router has established a connection
No Connection: There is no PPP connection
Initiating Connection: The PPP connection process has been initiated
Connection Halted: A successful PPP connection was halted
Cannot Connect: A PPP connection could not be made because of a PPPoE session
failure.
