030-300198 Rev. D 74 March 2003
WireSpeed Dual Connect NAT Router User Guide
Adding Local Trigger Ports

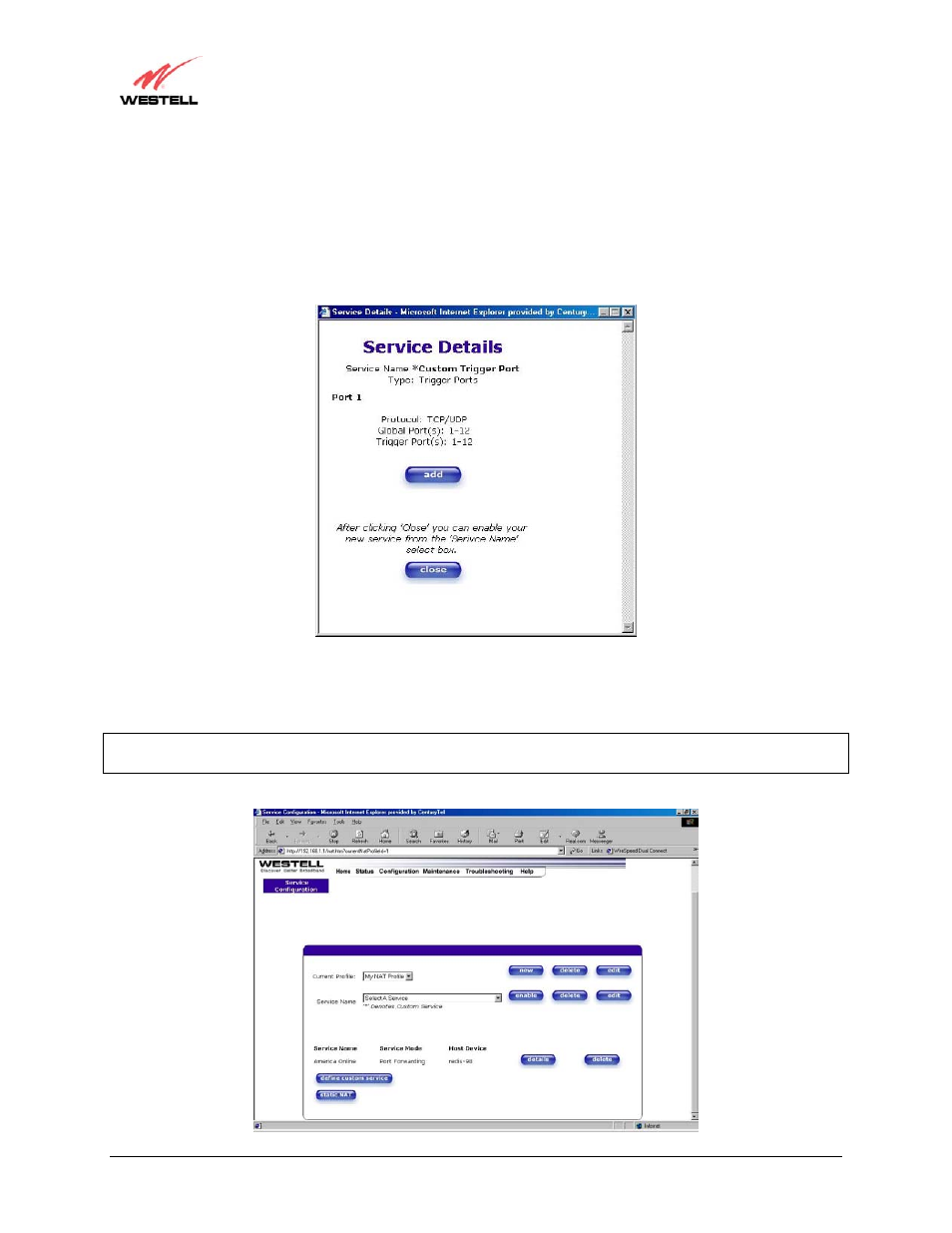

If you made changes in the Local ‘Trigger’ Port Range screen and clicked next, the following screen will be
displayed. You may either click on close to accept the changes, or click on add to go back to the Trigger Ports
screen, enter additional port range values, and click on next. You can repeat this step for each port range that you
want to add (up to 10 trigger ports). When you are finished adding ports to the Local ‘Trigger” Port Range, you must
click on close to accept the information you have entered and to return to the Service Configuration screen.
Static NAT
To configure your Router for Static NAT, select Service Configuration from the Configuration menu.
NOTE: Static NAT will allow you to configure your Router to work with the special NAT services. Only the
Router’s default account profile can be enabled or disabled for a Static NAT.
