030-300198 Rev. D 36 March 2003
WireSpeed Dual Connect NAT Router User Guide

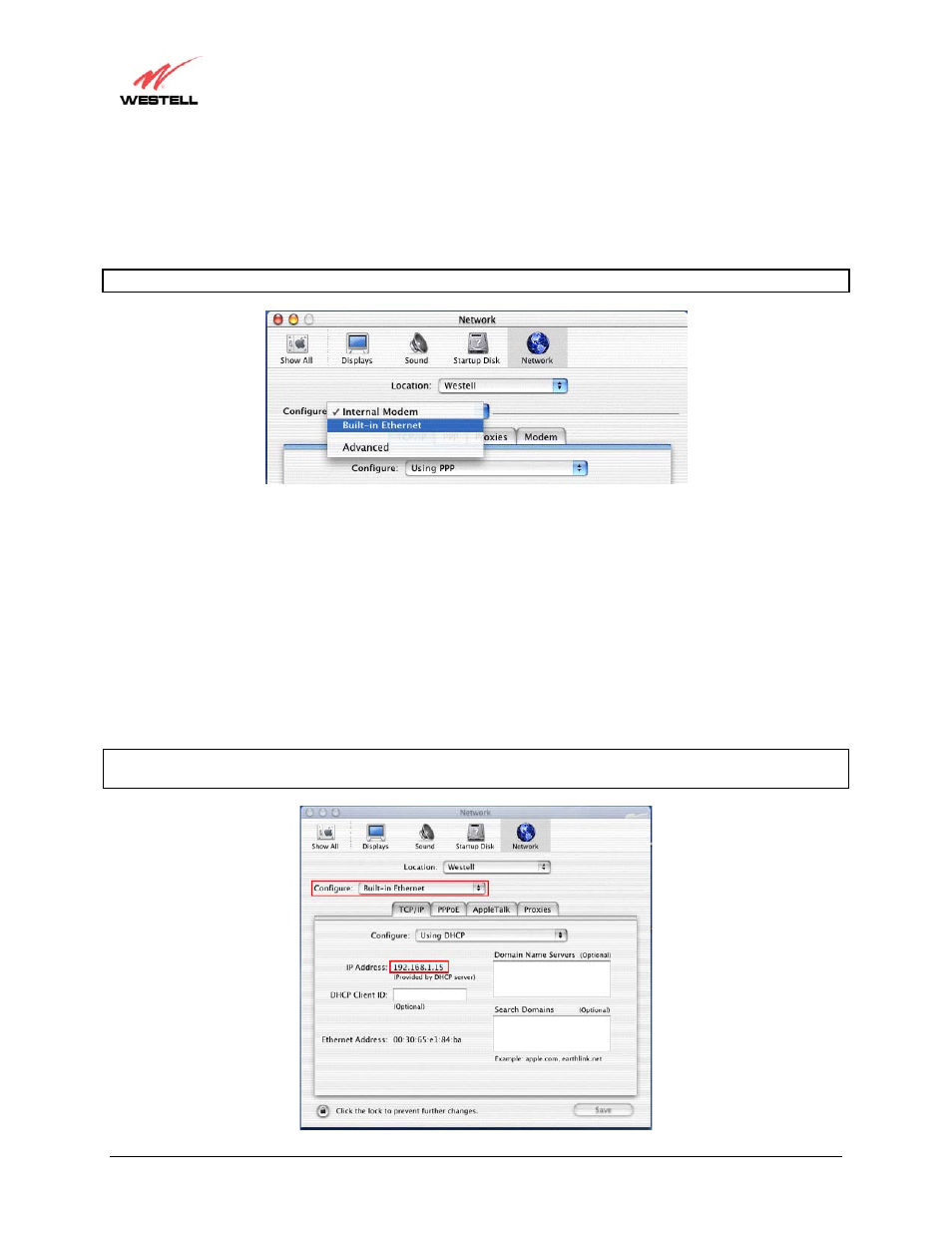

Selecting the Ethernet Configuration
After clicking on OK in the previous step, the Network screen will be displayed. The Network screen shows the
settings for the newly created location. From the Configure field in the Network screen, select Built-in Ethernet.
Click Save.
NOTE: Default settings for the Built-in Ethernet configuration are sufficient to operate the Router.
Checking the IP Connection
To verify that the computer is communicating with the Router, follow the instructions below.
1. Go to the “Apple” icon in the upper right corner of the screen and select System Preferences.
2. From
the System Preferences screen, click on the Network icon. The Network screen will be displayed.
3. From
the Configure field in the Network screen, select Built-in Ethernet.
4. View the IP address field. An IP address that begins with 192.168.1 should be displayed.
NOTE: The DHCP server provides this IP address. If this IP address is not displayed, check the Router’s wiring
connection to the PC. If necessary, refer to section 5 for installation instructions.
