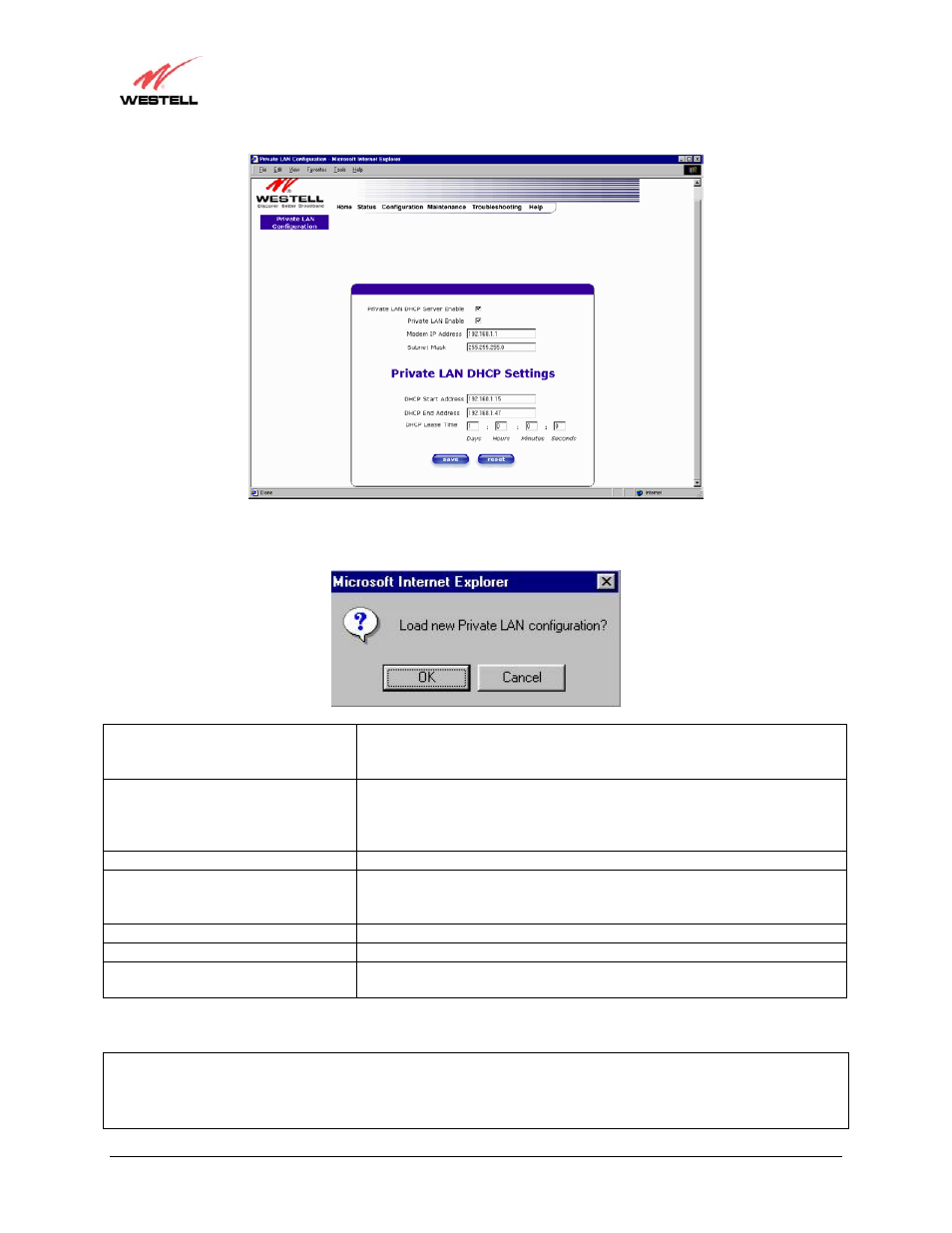

If you made changes and clicked on save, the following pop-up screen will be displayed. Click on OK. This will
save your Private LAN Configuration settings. If you click Cancel, your new settings will not take affect.
Private LAN DHCP Server Enable Default = CHECKED
If this box is CHECKED, it enables DHCP addresses to be served from the
Private LAN pool.
Private LAN Enable Default = CHECKED
If this box is CHECKED, it enables the addresses from the Private LAN to
use the NAT interface.
Modem IP Address Displays the Router’s IP address
Subnet Mask Displays the Subnet Mask, which determines which portion of an IP
address is controlled by the network, and which portion is controlled by the
host.
DHCP Start Address Displays the first IP address that the DHCP server will provide.
DHCP End Address Displays the last IP address that the DHCP server will provide.
DHCP Lease Time Displays the amount of time the provided addresses will be valid, after
which the DHCP client will usually re-submit a request.
NOTE: DHCP Lease Time is displayed in the following format: (dd:hh:mm:ss)* (This value must be greater than 10
seconds.) The default = 01:00:00:00. Seconds must be between 0 and 59, minutes must be between 0 and 59, and
hours must be between 0 and 23.
*(dd = days, hh = hours, mm = minutes, ss = seconds).
