Toshiba TOSNIC-7000S User Manual

Page 53

- 52 -

6 F 3 H 1 0 0 1

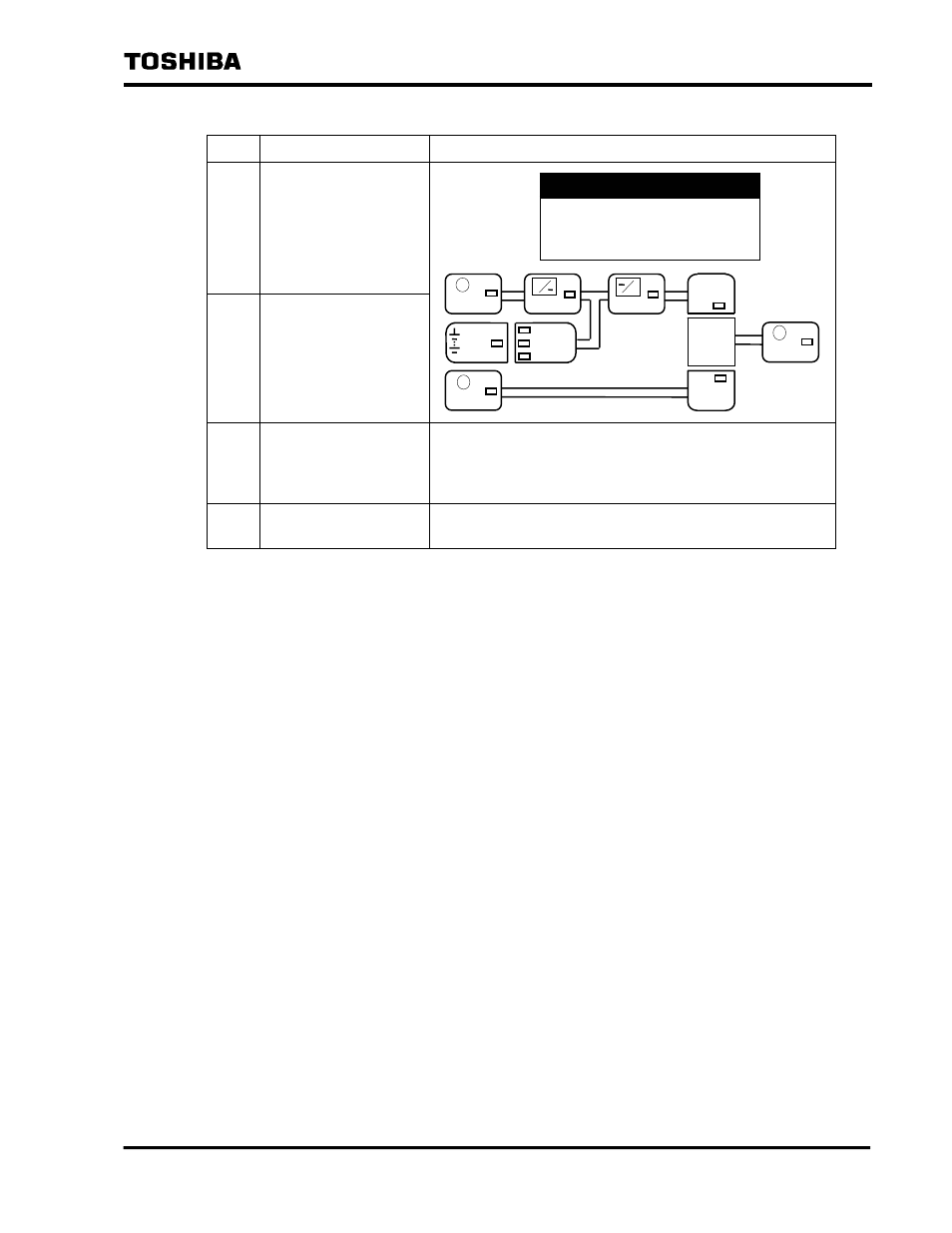

Table 9.11 Restoring UPS Operation (Example)

Step Procedure

LCD/LED

Status (After Execution)

Check the LCD screen.

Also check for other
Failure Data screens
by scrolling with scroll
keys

i and j on the

panel.

2 Turn

6CH

OFF.

Remove the memory
card in the panel and
insert a new memory
card.*

4 Contact

the

Toshiba

Service Center.

Follow the directions given by Service Center personnel.

In the case of other failures as well, restore by doing the following:

(1) Check the nature of the failure on the LCD screen.

(2) Contact the Toshiba Service Center.

(3) Follow the directions given by Service Center personnel.

Note:

Before removing the memory card, always verify that the memory card write LED shown in
figure 9.10 is not lit.

BATTERIES

SWITCH

UPS

BYPASS

DISCHARGE

FLOAT CHARGE

EQUAL CHARGE

～

AC INPUT

～

CONVERTER

～

INVERTER

～

AC OUTPUT

BYPASS INPUT

～

FAULT

1 52R TRIP
98-09-09 08:05:30
↓ANOTHER ITEM
