- 30 -
6 F 3 H 1 0 0 1

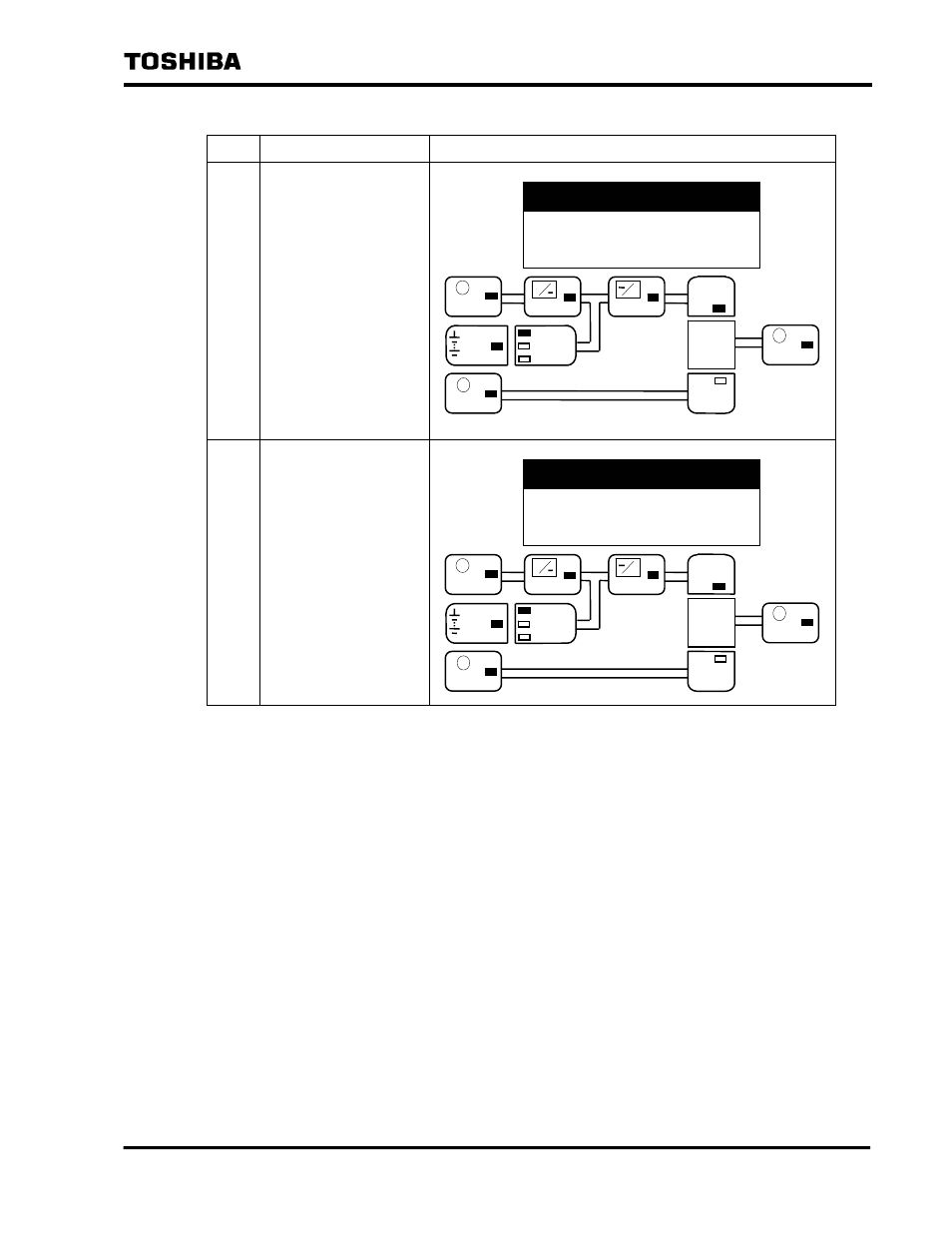

Table 8.1 Startup Procedures (continued)
Step Procedure LCD/LED Status (After Execution)
10 Hold down the “UPS”
key ( g in the Figure
6.3.1 on page14) for at
least 0.5 second. *
→ The will start the
power supply
changing process.
The "BYPASS" LED unlit and “UPS” LED lit.
11 Wait several seconds
for the process to be
completed (change to
UPS power supply).
→This completes the
UPS staartup
operation.
*If for some reason the AC switch dose not function, contact the Toshiba Service Center.
Do not manually operate the solenoid contactor (which is part of AC switch).
UPS SUPPLY
AC-VO 200[V]
AC-
I O 50[ % ]
UPS SUPPLY
AC-VO 200[V]
AC-
I O 50[ % ]
BATTERIES
AC
SWITCH
UPS
BYPASS
EQUAL CHARGE
DISCHARGE
FLOAT CHARGE
～
AC INPUT
～
CONVERTER
～
INVERTER
～
AC OUTPUT
BYPASS INPUT
～
BATTERIES
AC
SWITCH
UPS
BYPASS
EQUAL CHARGE
DISCHARGE
FLOAT CHARGE
～
AC INPUT
～
CONVERTER
～
INVERTER
～
AC OUTPUT
BYPASS INPUT
～
