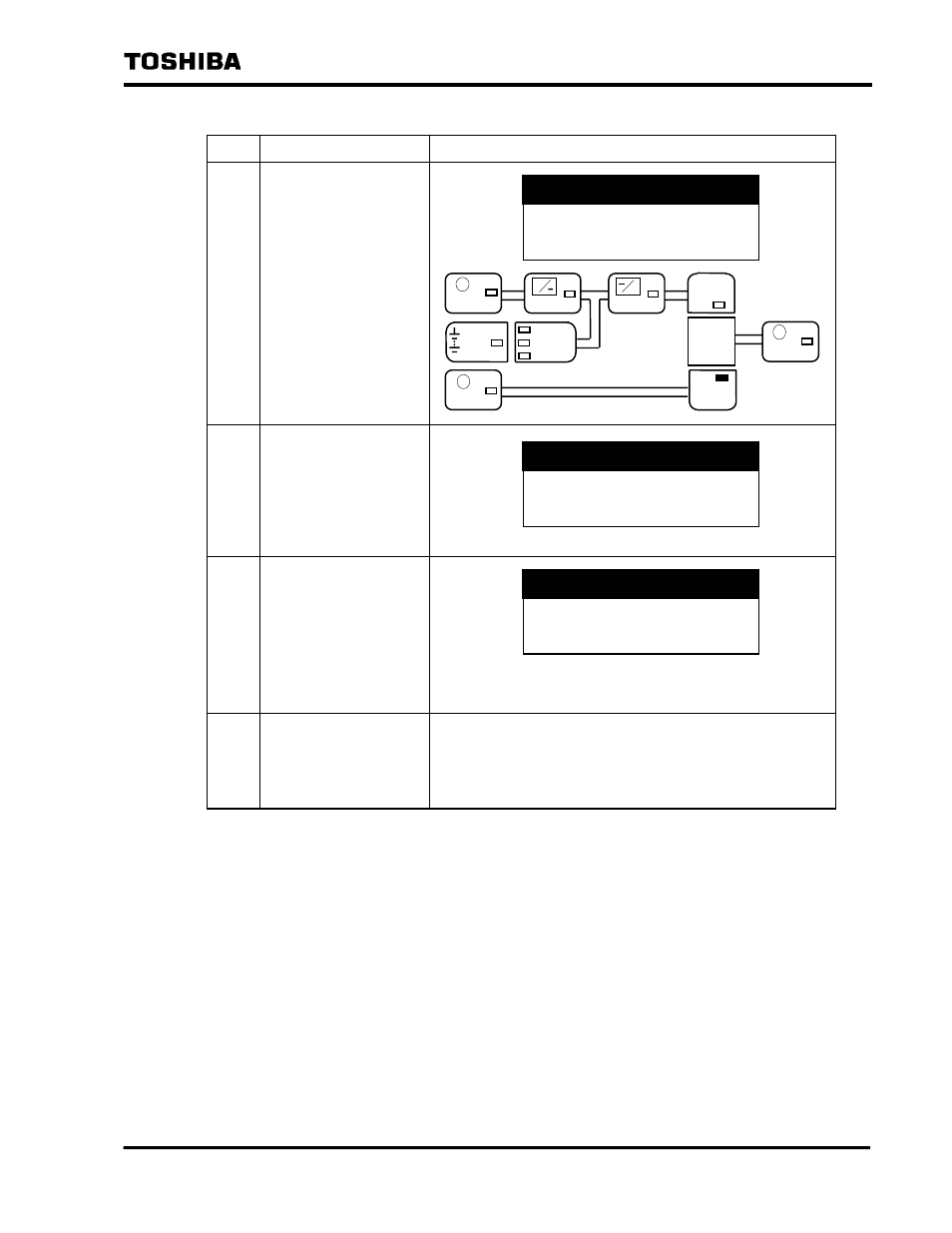

Table 8.4 Complete Shutdown (continued)
Step Procedure LCD/LED Status (After Execution)
8 Turn off the precharge
circuit switch (6CH).
9 Wait about 20 minutes
until the DC capacitor
has been discharge.*
10 Using the scroll keys,
change the display
screen and check to
make sure that the DC
voltage is 0V (see
Section 7.2.4 “LCD
Screen Switching” on
page 24).
11 Set the control power
supply switch (8A) to
the OFF position. *
→ Complete shutdown
Nothing at all is displayed on the LCD and all LEDs are
unlit.
* This operation is different from that displayed in the help message on the screen.
Be sure to perform the operation as described here.
BATTERIES
AC
SWITCH
UPS
BYPASS
DISCHARGE
FLOAT CHARGE
EQUAL CHARGE
～
AC INPUT
～
CONVERTER
～
INVERTER
～
AC OUTPUT
BYPASS INPUT
～
OPERATION GUIDANCE
MOVE #6CH TO ‘OFF’ POSITION
WAIT ABOUT 20 MINUTES
MOVE #8A TO ‘OFF’ POSITION
OPERATION GUIDANCE
MOVE #6CH TO ‘OFF’ POSITION
WAIT ABOUT 20 MINUTES
MOVE #8A TO ‘OFF’ POSITION
DC INPUT
DC-V 0[V]
BATT-V 0[V]
BATT- I 0[A]
