- 29 -
6 F 3 H 1 0 0 1

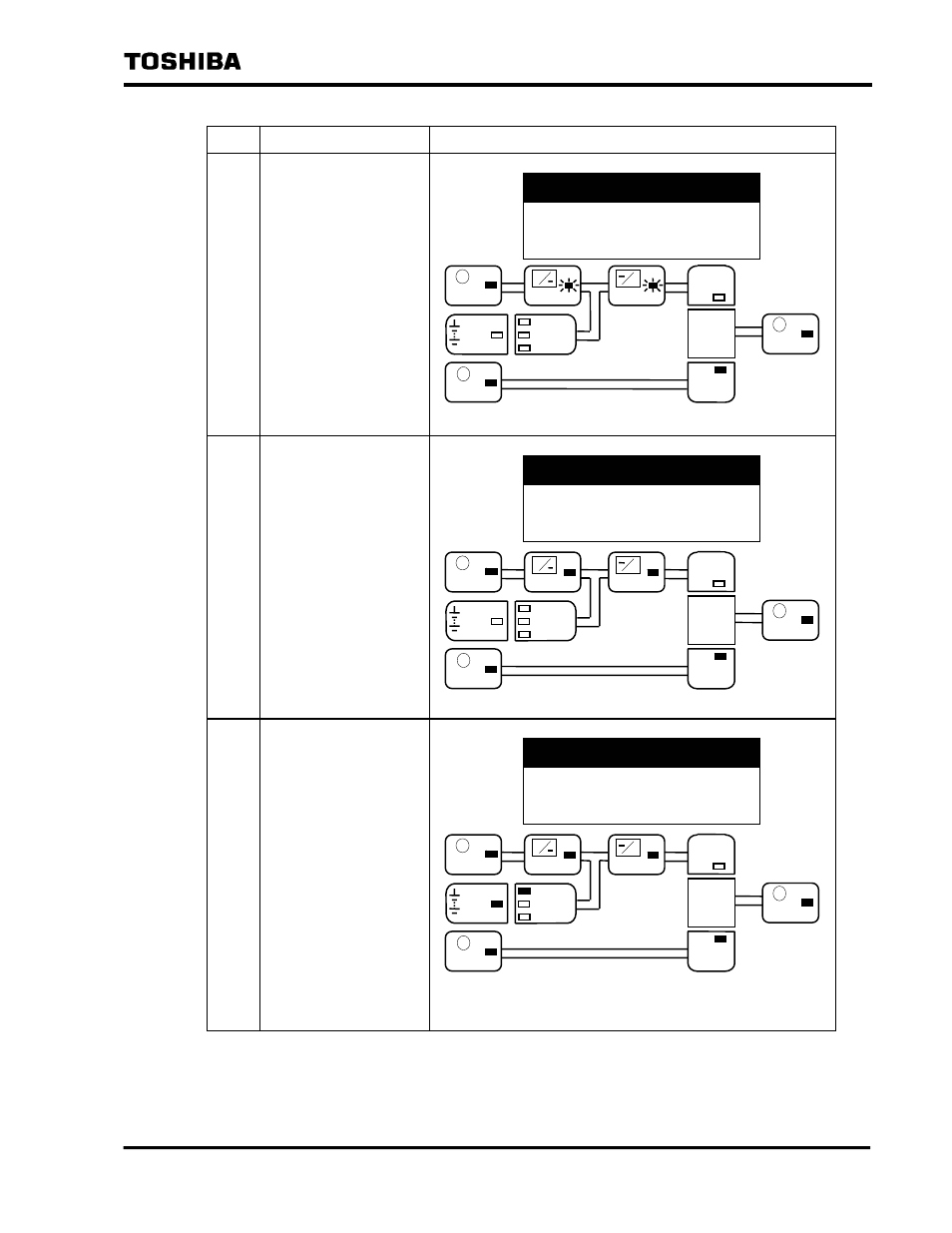

Table 8.1 Startup Procedures (continued)
Step Procedure LCD/LED Status (After Execution)
7 Hold down the "RUN"
key ( d in Figure 6.3.1
on page 14) for at least
0.5 second.
The "CONVERTER" and "INVERTER" LEDs blinking.
8 Wait several seconds
for the startup process
to finish.
The "CONVERTER" and "INVERTER" LEDs lit.
9 When the message
appears, turn on the
main circuit DC input
circuit breaker (72B).
The "BATTERIES" and "FLOAT CHARGE" LEDs lit.
BYPASS
BYPASS
BYPASS
UPS START-UP
MOVE #72B TO ‘ON’ POSITION
AC-VO 200[V]
AC-
I O 50[ % ]
PRESS ‘UPS’ SWITCH
BATTERIES
AC
SWITCH
UPS
BYPASS
DISCHARGE
FLOAT CHARGE
EQUAL CHARGE
～
AC INPUT
～
CONVERTER
～
INVERTER
～
AC OUTPUT
BYPASS INPUT
～
BATTERIES
AC
SWITCH
UPS
BYPASS
DISCHARGE
FLOAT CHARGE
EQUAL CHARGE
～
AC INPUT
～
CONVERTER
～
INVERTER
～
AC OUTPUT
BYPASS INPUT
～
BATTERIES
AC
SWITCH
UPS
BYPASS
DISCHARGE
FLOAT CHARGE
EQUAL CHARGE
～
AC INPUT
～
INVERTER
～
AC OUTPUT
BYPASS INPUT
～
～
CONVERTER
