59
Document
imaging camera
K EY
ST O N E
AU TO SE T
EXIT
ON / STANDBY
VOL / ADJ
ENT ER
M EN U
IN P U T
FAN TEMP LAMP ON
1
2
OVERLAY 3
1
2
INPUT
INPUT
4
RGB picture
2
3 OVERLAY
CAMERA
ARM LIGHT
LOCK
W.BALANCE
CAMERA GAIN
2
MENU
ON/STANDBY INPUT
L-CLICK R-CLICK
ENTER
KEYSTONE AUTO SET
EXIT
PIP FREEZE
MUTE CALL RESIZE
VOLUME/ADJUST
LASER
STORE CAMER A ARM LIGHT LOCK W.BALA NCE GAIN
FOCU S

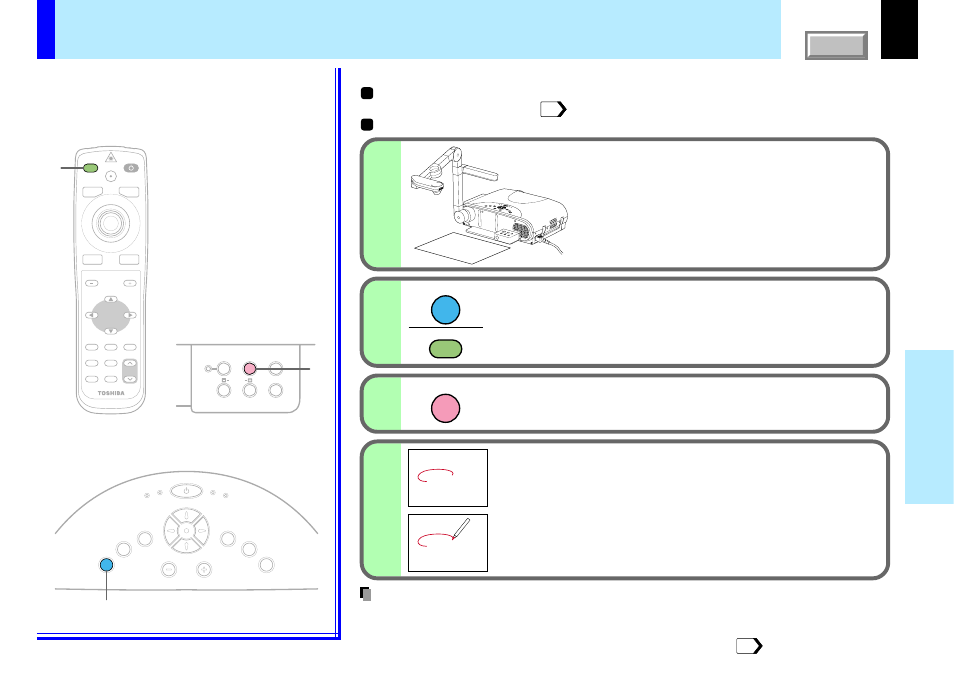

Overlaying projection
• Handwriting in colors except blue and red cannot be displayed properly.
• Handwriting in fine lines may not be displayed properly.
• The depth overwritten can be adjusted from the menu screen.
Select the input source using the overlay
function by pressing INPUT.
Select the input source other than the camera input.
Set the white paper on a flat place
and set the camera so that paper is
projected to the full screen.
The white paper should be projected fully on the
screen.
Press OVERLAY
Draw any line on the paper with a red
or blue pen.
A drawn line is projected on the screen, overlapped
with the picture of the input source.
The position of a pen point can be confirmed on the
screen before drawing anything.
Screen
Paper
46
You can draw figures or letters with a pen on the
picture of RGB input or video input, by using the
overlaying function.
Remote control
Control panel
(Main unit side)
Camera control panel
Preparation
Project a picture on the screen as explained in the step "Picture projection with the
document imaging camera".
Prepare white paper and a red or blue pen.
56
