28
You can also place the materials at the
back of the projector and move the arm
and the camera head for them.

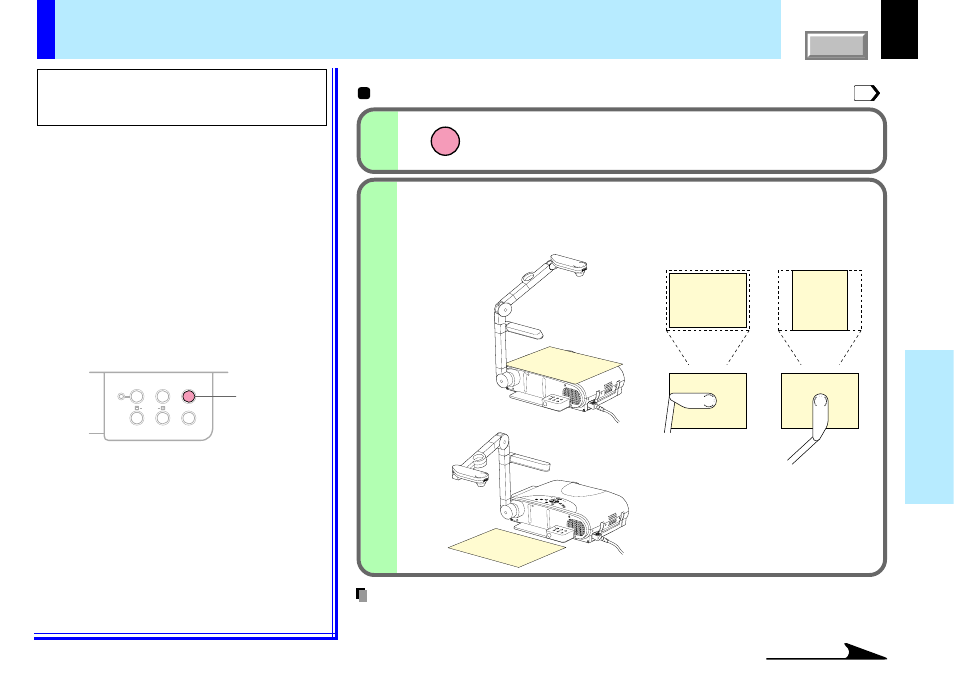

Setting direction
Images on the screen
Camera control panel
Press ARM LIGHT.
The light turns on.
Set a document to be projected.
Place the document (illustrations, etc.) onto or around the
projector, and turn the camera head to the direction of the
document.
• Use the arm light according to the brightness of the room when necessary.
• When setting the materials on the projector, be careful not press the operation buttons.
Picture projection with the document imaging camera
CAUTION
Do not look into the arm light while it is lit.
Preparation
Project a picture on the screen as explained in the step "Projection on the screen".
