Airborne Control Center
Page 30
AirborneDirect™ Ethernet Bridge User's Guide
100-8007-141G
Quatech, Inc. Confidential
BASIC CONFIGURATION SETTINGS
Status Page (Basic Configuration Settings)

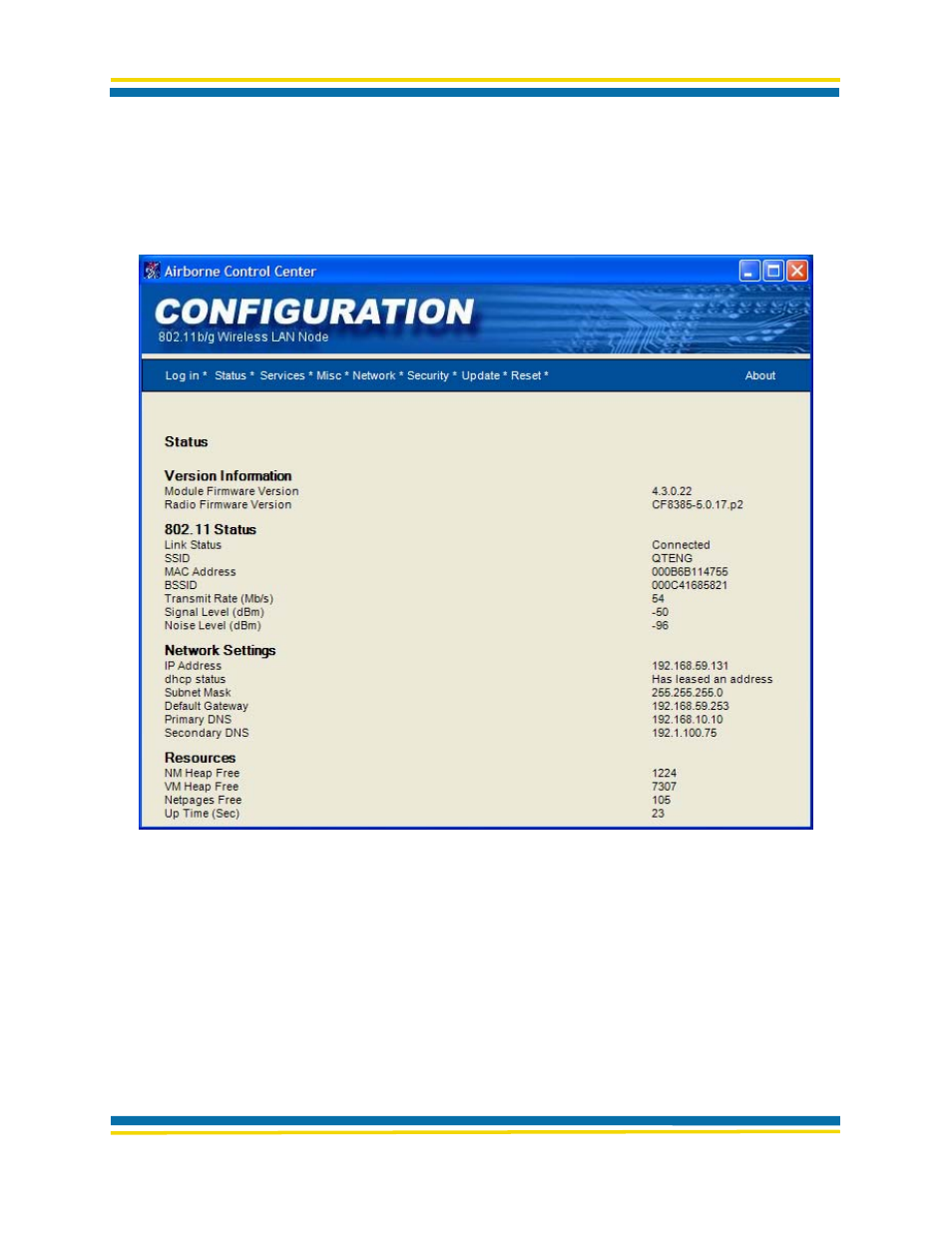

Figure 14. Status Page
The Status Page is the first page that appears in the ACC. This read-only page shows
information about the Bridge. You may need to click the Status button in the navigation bar to
update the contents on this page.
This page shows the Bridge’s version number, 802.11 status, network settings, and resources.
Parameters to note on this screen are:
MAC address
is the MAC address of the Bridge.
BSSID
is the MAC address of the associated Access Point (AP).
RSSI
indicates the receive signal strength in dBm.
