Hardware Installation
Page 10
AirborneDirect™ Ethernet Bridge User's Guide
100-8007-141G
Quatech, Inc. Confidential
Indicator LEDs
The Bridge has three indicator LEDs for viewing its current status and its connections (see
XX
Figure 3
XX
). These indicators allow for monitoring and troubleshooting of the Bridge. They also
indicate the Bridge’s power-up status, link, connection, and data-activity status.
XX
Table 2
XX
describes the status of the indicator LEDs.

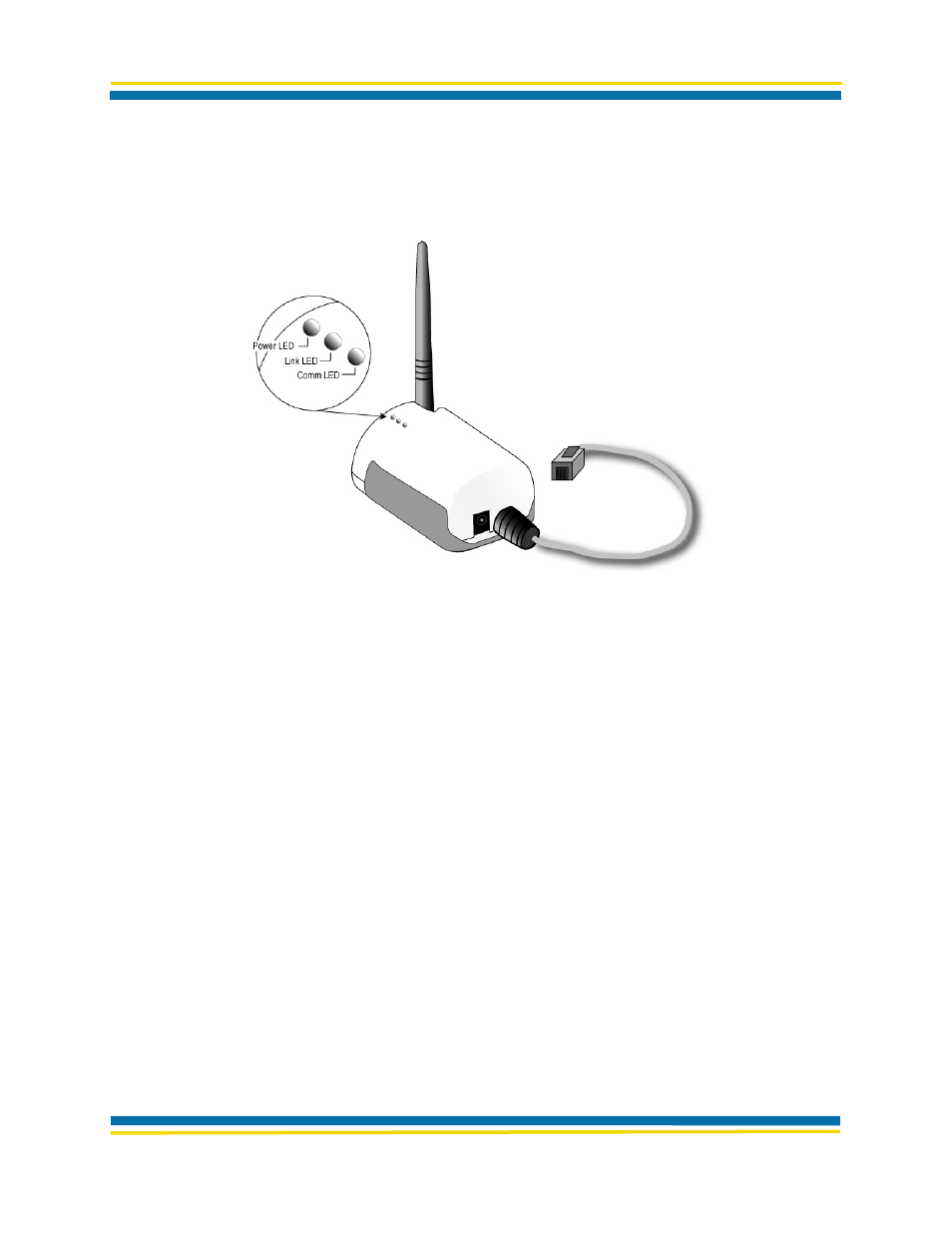

Figure 3. Indicator LEDs on the AirborneDirect™ Ethernet Bridge
