Mounting Cradle
The Bridge comes with a mounting cradle that allows the Bridge to be installed on a vertical
surface, such as a wall (see
XX
Figure 4
XX
). Be careful not to tighten the mounting hardware (user-
supplied) excessively to avoid damaging the cradle. When mounting the Bridge vertically, attach
the cradle to the vertical surface, and then insert the Bridge into the cradle.

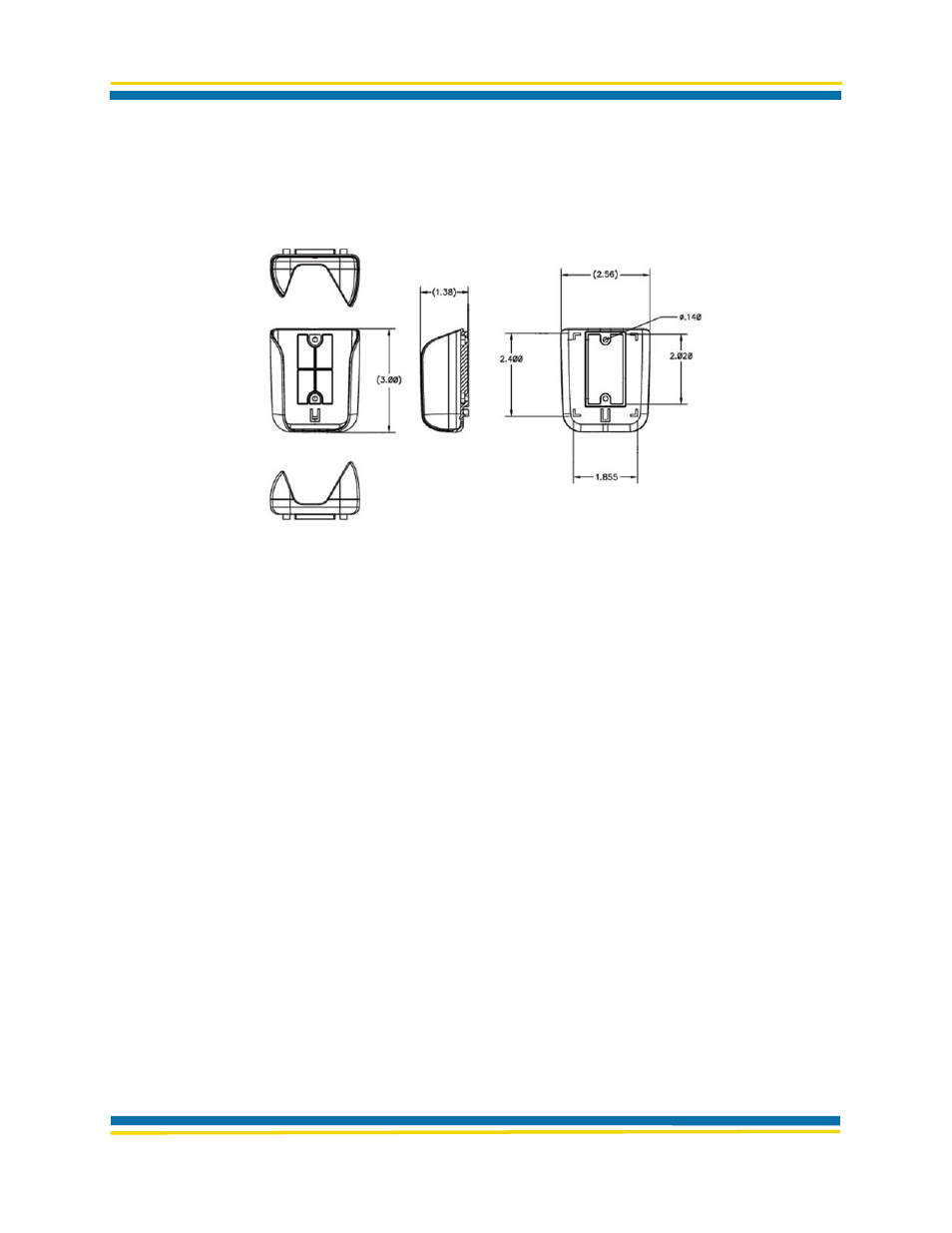

Figure 4. Mounting Cradle Dimensions
