Indicator LEDs

The Heavy-Duty Bridge has four indicator LEDs for viewing its current status and connections
(see Figure 5). These indicators allow for monitoring and troubleshooting of the Bridge. They
also indicate the Bridge’s power-up status, link, connection, and data-activity status. Table 3
describes the status of the indicator LEDs.

Table 3. AirborneDirect™ Heavy-Duty Ethernet Bridge Indicator LEDs

Name

Description

POST

Power on self test completed

CFG

Device has a valid IP address

LINK

Device has successfully
associated/authenticated with an AP.

CONN

TCP/IP connection established with
device.

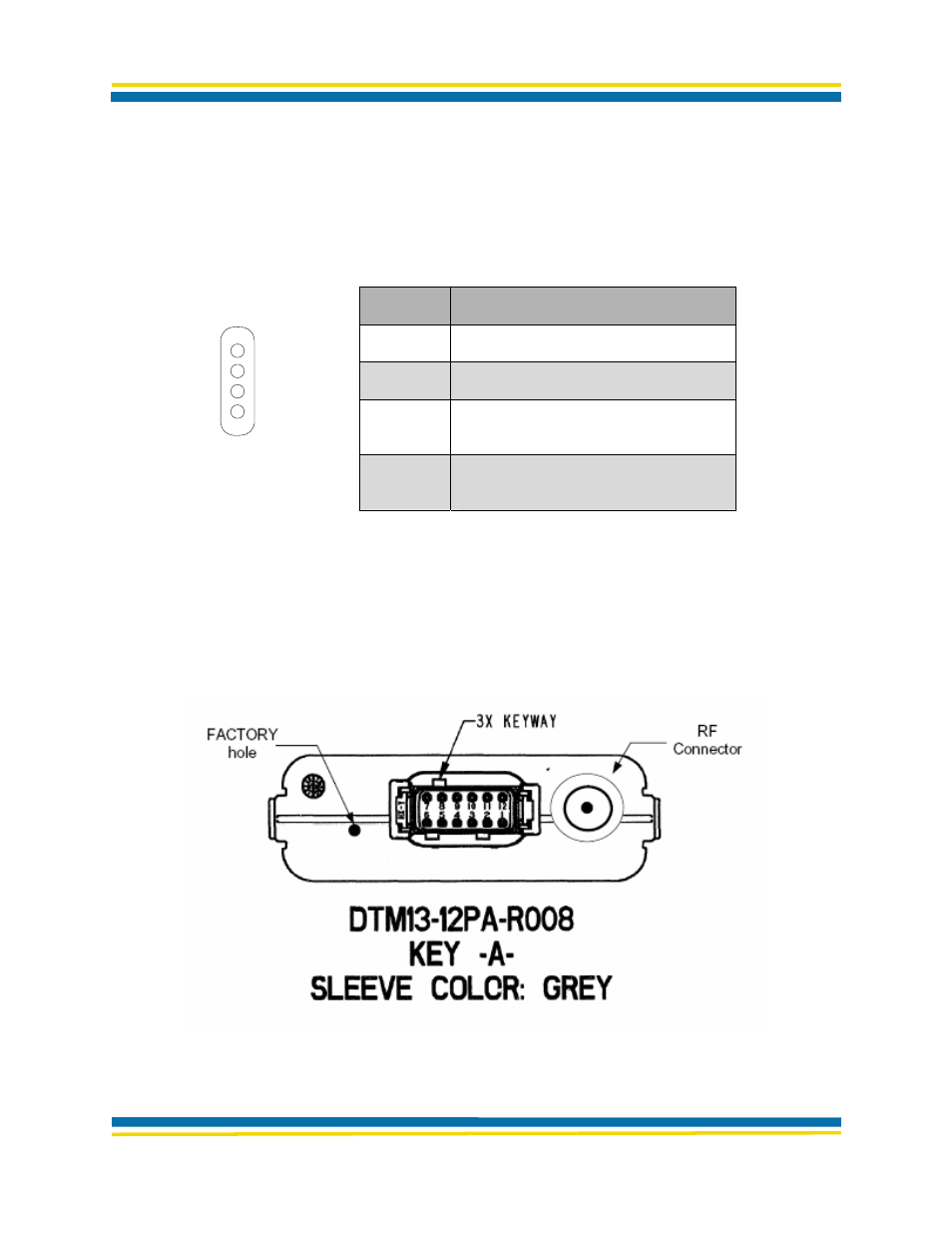

End Cap Layout

The connectors required to attach to the device are:

Ethernet/Power: Deutsch DTM-06-12SSA
RF:

RP-SMA (Male)

Note: FACTORY RESET hole is optional, if a sealed enclosure is required.

Figure 7. End Cap Pin-out and Connector Location

CONN
LINK
CFG
POST
