40
Connecting to the Network Section 3-6
3-6-3 Connecting the Cable
Transceiver Cable (for CS1W-ETN01)
!Caution Turn OFF the PC’s power supply before connecting or disconnecting trans-
ceiver cable.
1,2,3... 1. Prepare a coaxial cable.
2. Connect the transceivers to the coaxial cable.
• Mark the coaxial cable at intervals of 2.5 meters. Then connect the
transceivers at those marks.
• The transceiver connection method depends on the type of transceiv-
er, so refer to the transceiver operation manual.
3. Prepare the transceiver cable, and then connect it to the transceivers.
For more details regarding these steps, refer to Appendix A Network Installa-
tion. The cable preparation should be performed by an experienced profes-
sional.
4. Connect the transceiver cable to the Ethernet Unit connector. The Ethernet
Unit connector has a slide latch conforming to IEEE802.3 specifications
that serves as a lock mechanism. To connect the transceiver cable, oper-
ate the slide latch as described below.
a) First push the slide latch upwards.
b) Insert the cable connector into the Ethernet Unit’s connector with the
two locking posts at the end of the cable connector aligned with the
holes in the slide latch.
c) Then push the slide latch down to lock the cable connector in place.

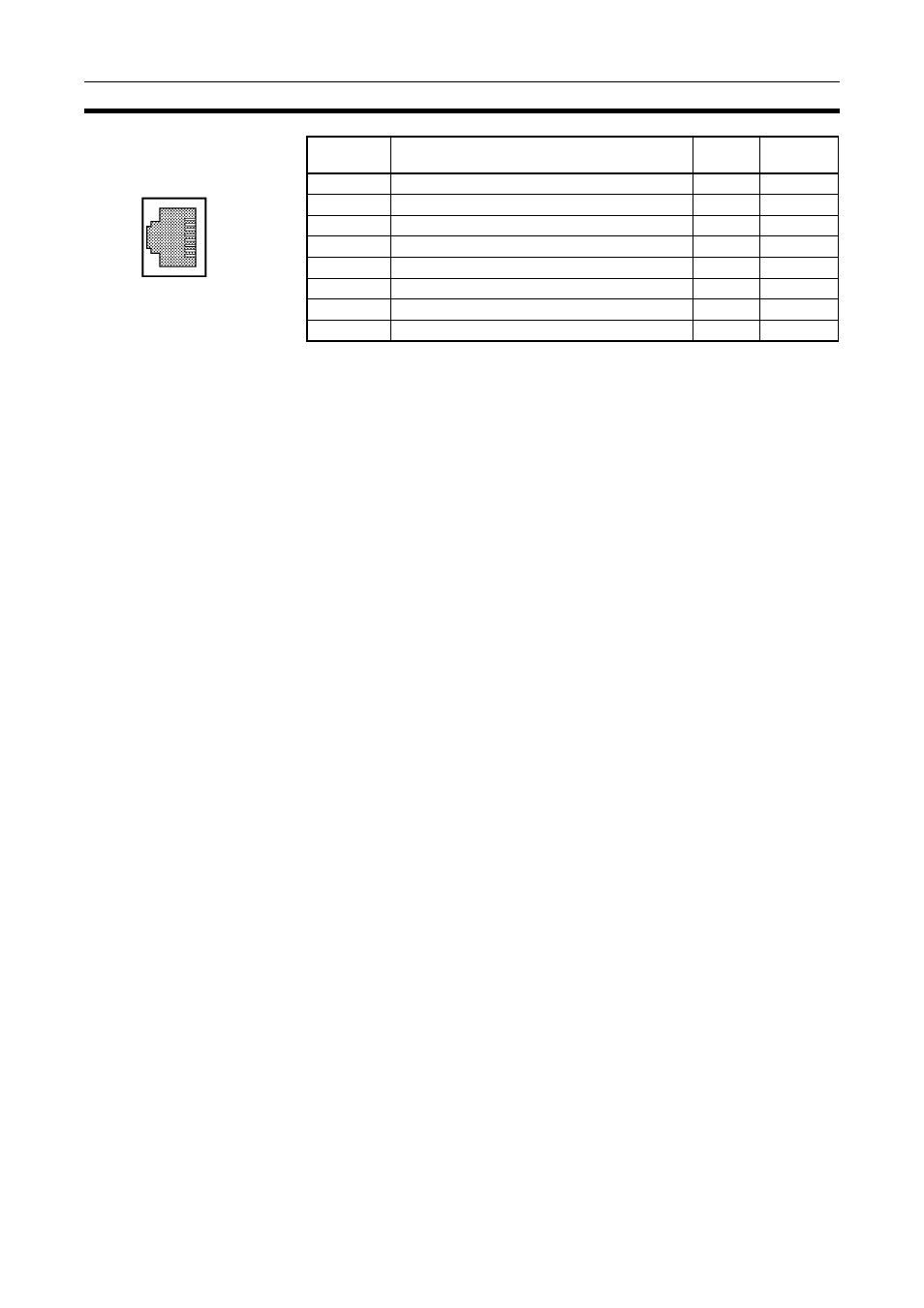

Connector
pin
Signal name Abbr. Signal
direction
1 Transmission data + TD+ Output
2 Transmission data – TD– Output
3 Reception data + RD+ Input
4 Not used. --- ---
5 Not used. --- ---
6 Reception data – RD– Input
7 Not used. --- ---
8 Not used. --- ---
