Related Programming Devices Section 1-4
1-4 Related Programming Devices
The Ethernet Unit functions as a node on the Ethernet network. The basic set-
tings for operation are made in the CPU Bus Unit System Setup in the CS/CJ-
series CPU Unit. Use the CX-Programmer to make the settings.
The following items are included in the System Setup.
When using the default values that are already stored in the CS/CJ-series
CPU Unit, there is no need to make any settings with the CX-Programmer.
Refer to 4-2 CPU Bus Unit System Setup for details on the above settings.

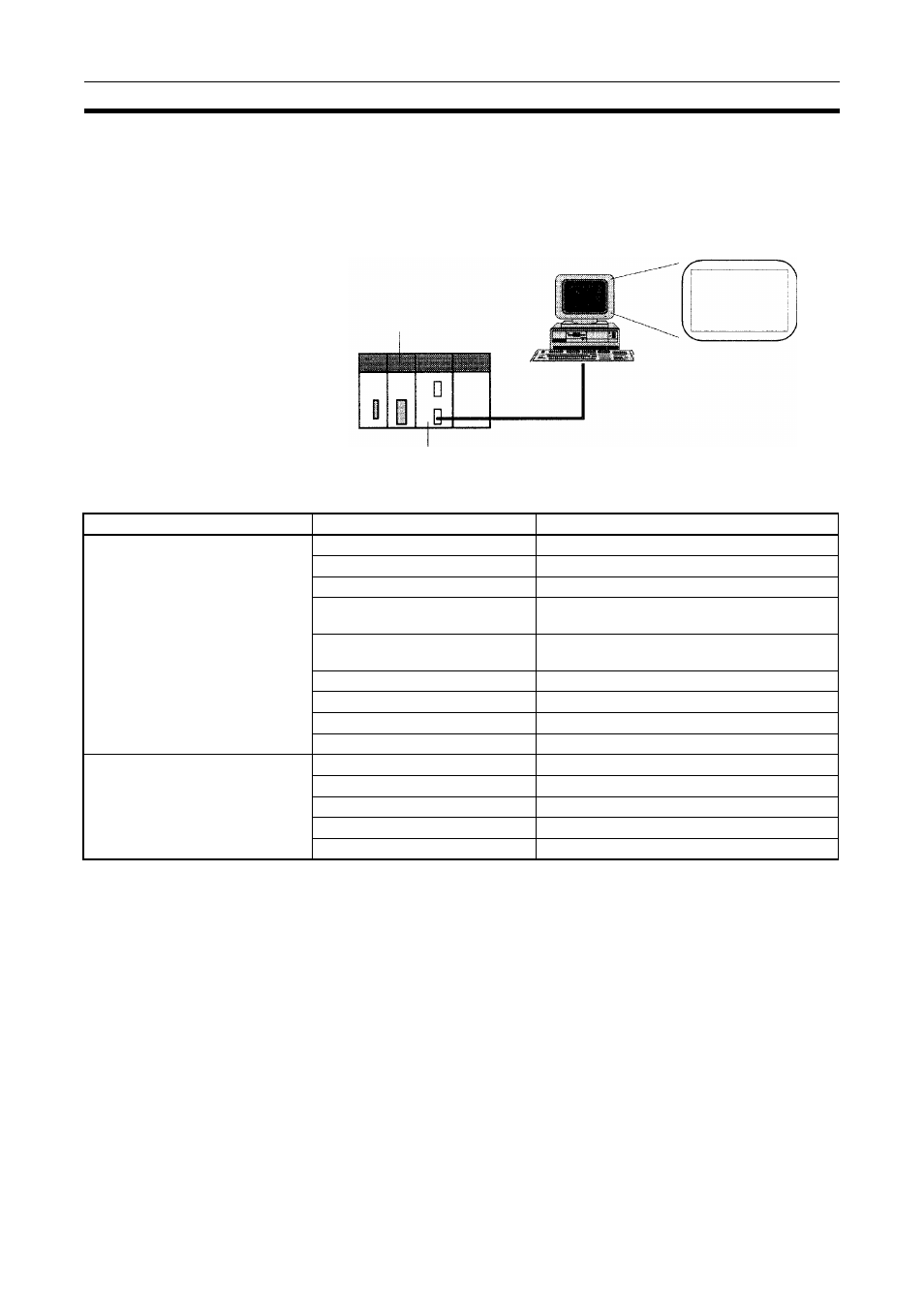

Ethernet Unit
CS/CJ-series CPU Unit
Personal computer running Windows
CX-Programmer
CPU Bus Unit
System Setup
Screen
Screen Item Default
Setup Screen Broadcast setting All 1 (4.3BSD specifications)
Address conversion method Automatic generation
FINS UDP port number 9600
Local IP address (CJ Series only) 0.0.0.0 (Set the IP address in the allocated
words in the DM Area.)
Subnetwork mask 0.0.0.0 (Uses value corresponding to IP
address class.)
FTP login name CONFIDENTIAL
FTP password Not set.
IP address table Not set.
IP router table Not set.
Mail Setup Screen Mail settings None set.
User-created mail data address Not set.
Local node address Not set.
Destination address Not set.
SMTP server address 0.0.0.0 (Not set.)
