Removing Jammed Staples
145
6
Staple unit for saddle stitch function
Reference
Initialize the staple unit for the saddle stitch function after removing jammed
staples. See p.141 “Using “Prepare Stapling ”in User Tools to initialize the sta-
ple unit”.
• 6: Push in the cartridge until it clicks.
• 7: Close the front cover of the finisher.

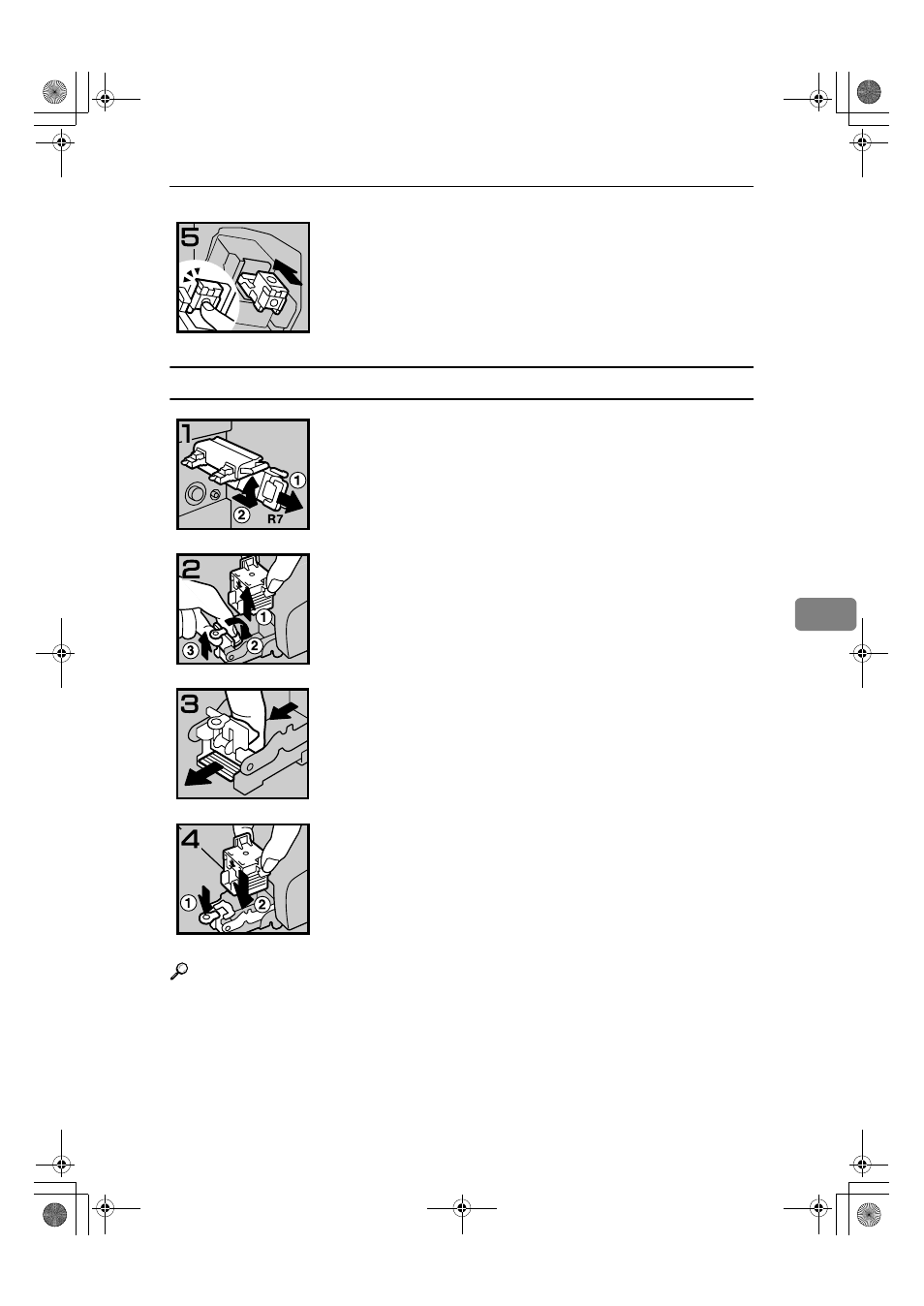

• 1: Open the front bottom cover of the fin-
isher.
• 2: Pull lever R7 and fully pull out the staple
unit.
• 3: Lift the lever of the staple unit while
pulling it.
• 4: Take out the cartridge.
• 5: Pull the blue knob down, and then lift
the knob of the face plate.
• 6: Remove all jammed staples.
• 7: Bring the face plate back into place by
pushing it.
• 8: Push the cartridge.
• 9: Bring the staple unit back into place, and
then close the front bottom cover of the fin-
isher.
