90
Playback

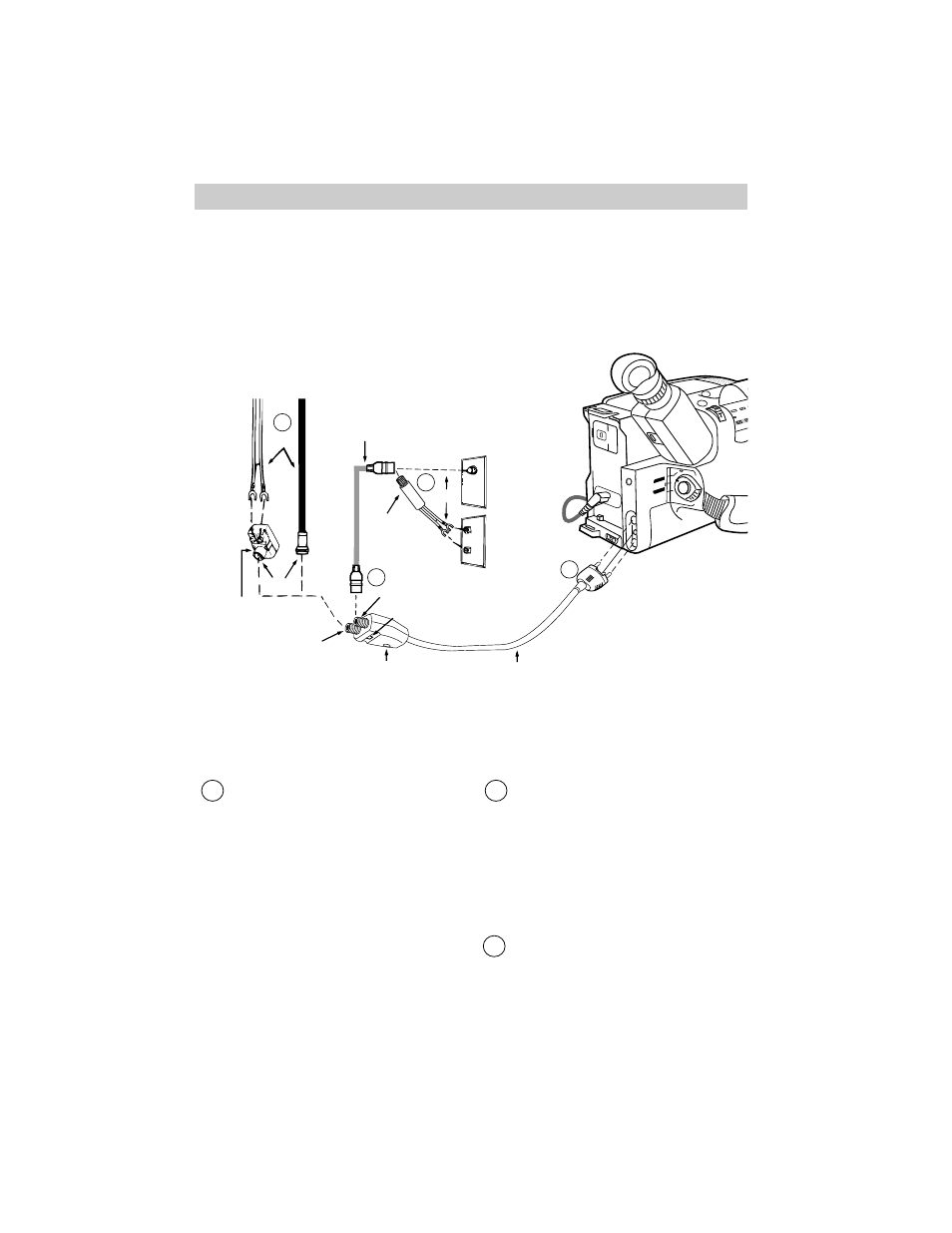

Playback on a TV Without Audio/Video Inputs
To connect your camcorder to a TV without audio/video inputs, you will need an
optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as VH82
or VH90 shown on page 94. If your TV has AUDIO and VIDEO IN jacks (or is
connected to a VCR), refer to pages 84-85.
Installation
1 Disconnect the VHF antenna from
your TV. Connect the antenna to the
IN FROM ANT connector on the RF
output adapter if you are going to leave
the adapter connected to the TV.
Note: If your VHF antenna is the flat
twin-lead type attached by two screws,
you will also need an optional 300/75 ohm
transformer.
2 Attach one end of the optional coaxial
RF cable to the OUT TO TV
connector on the adapter, and attach
the other end to the VHF input on
your TV as shown.
Note: If your TV has 300 ohm screw
terminals, you will need a 75/300 ohm
transformer, such as VH54, shown on
page 94.
3 Attach the RF output adapter’s plug to
the AUDIO, RF DC OUT, and
VIDEO jacks located under the small
cover on the back of the camcorder.
BATT. RELEASE
B C
AUDIO
JLIP
RF
DC OUT
VIDEO
SP•SLP
SNAP SHOT
TRACK ER R/M
W.BAL.
REW
+ –
VCR
CAMERA
POWER
OFF
OR
1
VHF Antenna
OR
OR
2
3
2
VHF
VHF
Back of TV
Optional Coaxial
RF Cable
(such as VH82 or VH90)
Optional RF Output Adapter
(1CVA147C)
Optional
300-75 Ohm
Transformer
IN FROM ANT
Connector
RF Output
Adapter's Plug
CH3/CH4 Switch
Optional
Transformer
(Such as VH54)
VCR/TV Switch
AUDIO, RF DC
OUT, VIDEO
Jacks
OUT TO TV Connector
