Setting Originals
29
2
Setting Originals
Limitation
❒ Set the original after correction flu-
id and ink has completely dried.
Not taking this precaution could
mark the exposure glass and cause
marks to be copied.
Note
❒ Basically the originals should be
aligned to the rear left corner.
However, some copy functions
may produce different results de-
pending on the direction of the
originals. For details, see explana-
tions of each function.
Reference
See
⇒
P.20 “Originals”.

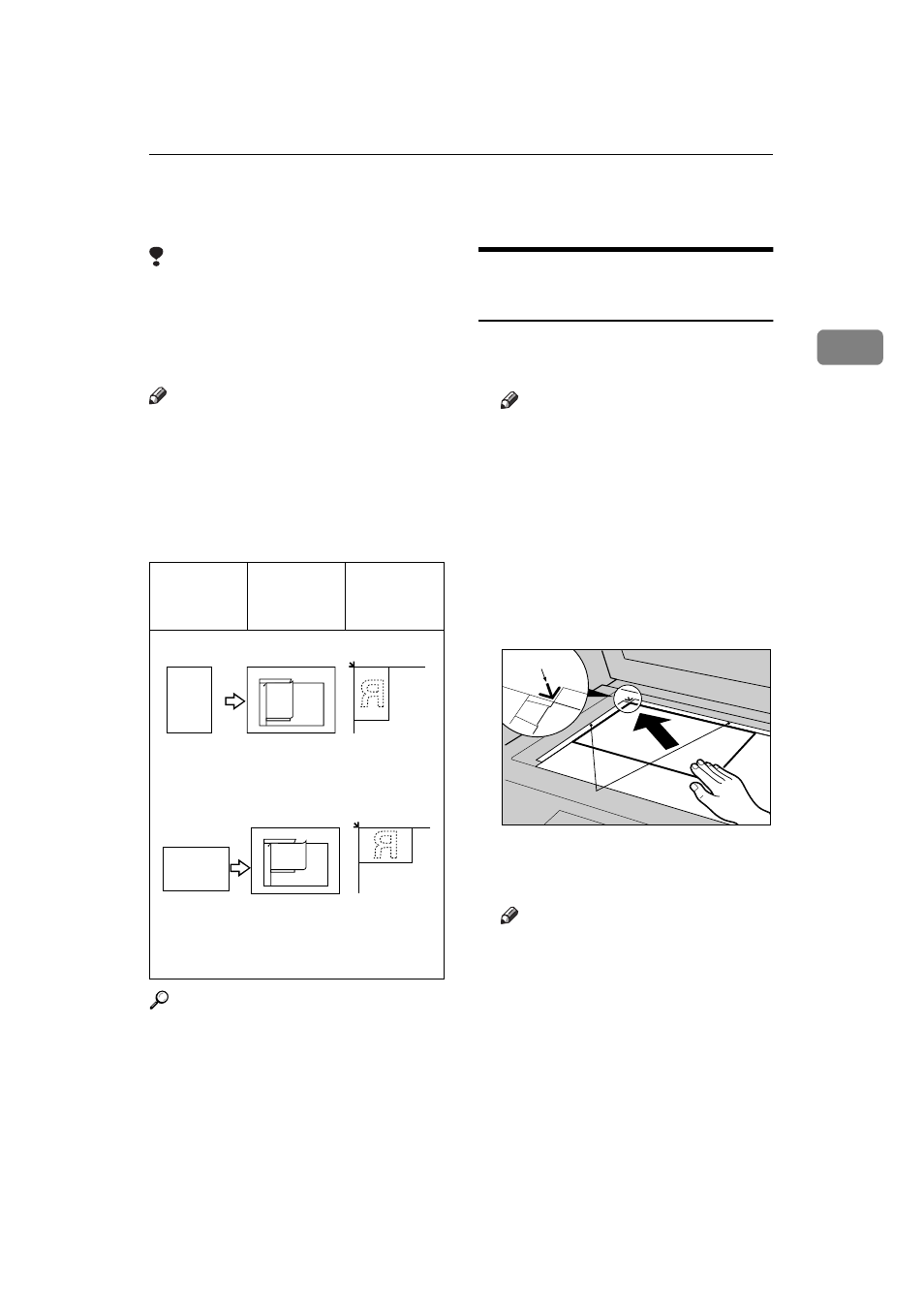

Setting Originals on the
Exposure Glass
A
Lift the platen cover or the docu-
ment feeder.
Note
❒ Be sure to open the platen cover
or the document feeder by more
than 30
°
, otherwise the original
size might not be detected cor-
rectly.
B
Set the original face down on the
exposure glass. The original
should be aligned to the rear left
corner.
1: Reference mark
2: Scale
Note
❒ Start with the first page to be
copied.
C
Lower the platen cover or the doc-
ument feeder.
Originals
Set in the
document
feeder
Set on the
exposure
glass
set1EE
R
R
set2EE
R
R
ND1C01EE
1
2
