9. Control panel
See p.21 “Control Panel”.
10. Standard tray
Copied, printed paper or fax messages
are delivered here.
11. Front cover
Open to access the inside of the machine.
12. Paper tray
Load paper here. See p.111 “ BLoading
Paper”.
13. Paper tray unit (optional)
Load paper here. See p.111 “ BLoading
Paper”, p.19 “External Options”.

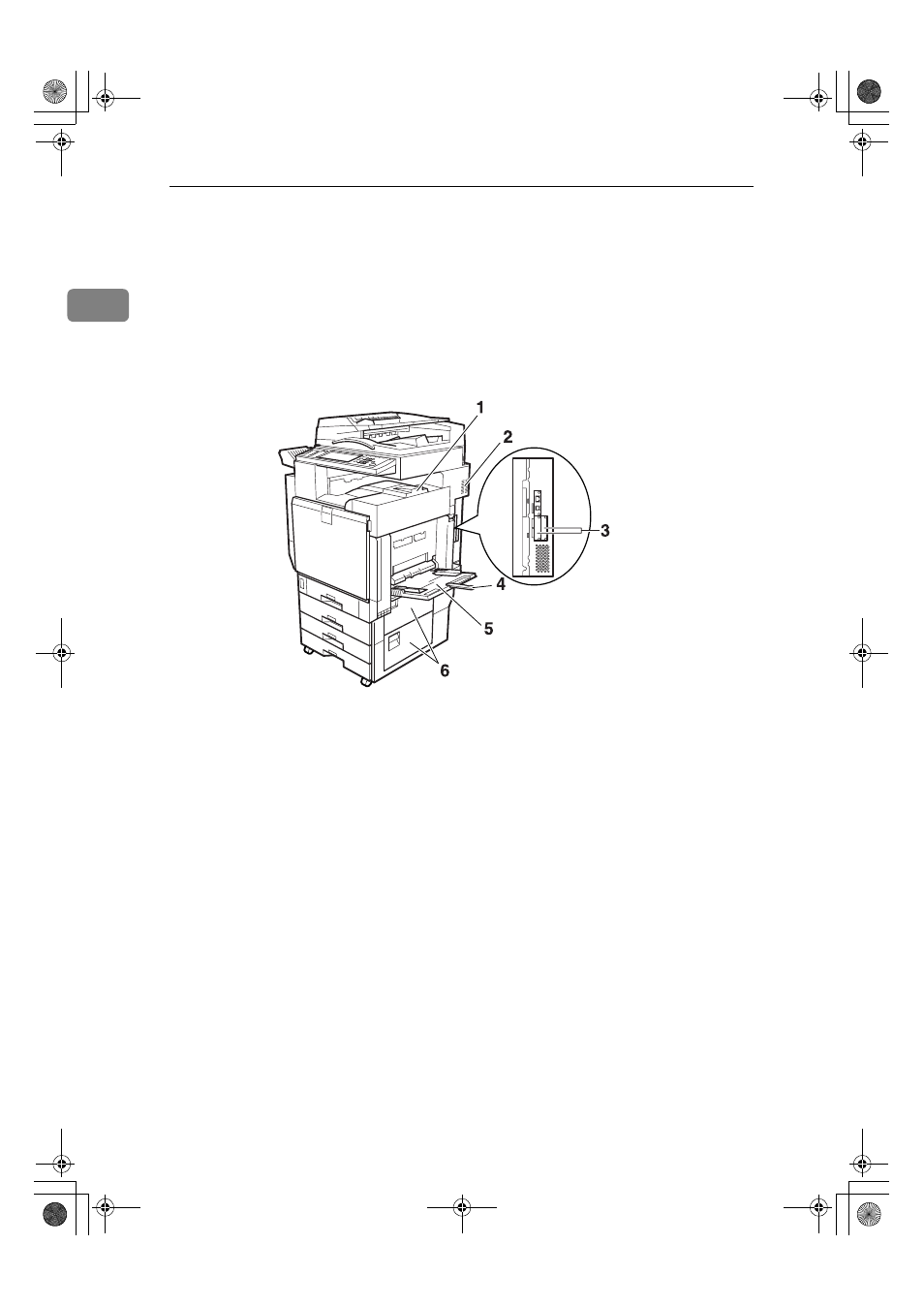

1. Upper right cover
Open this cover to replace the toner car-
tridge.
2. Ventilation holes
Prevent overheating. Do not obstruct the
ventilation holes by placing an object
near it or leaning things against it. If the
machine overheats, a fault might occur.
3. Optional connectors
Use to connect options such as Bluetooth.
4. Bypass tray extension
Pull out this extension to load paper in
the bypass tray when its length is longer
than that of A4
Lsize.
5. Bypass tray
Use to print on thick paper, OHP trans-
parencies, custom size paper, as well as
plain paper.
6. Lower right cover
Open this cover to remove misfed paper.
AFZ024S
