66

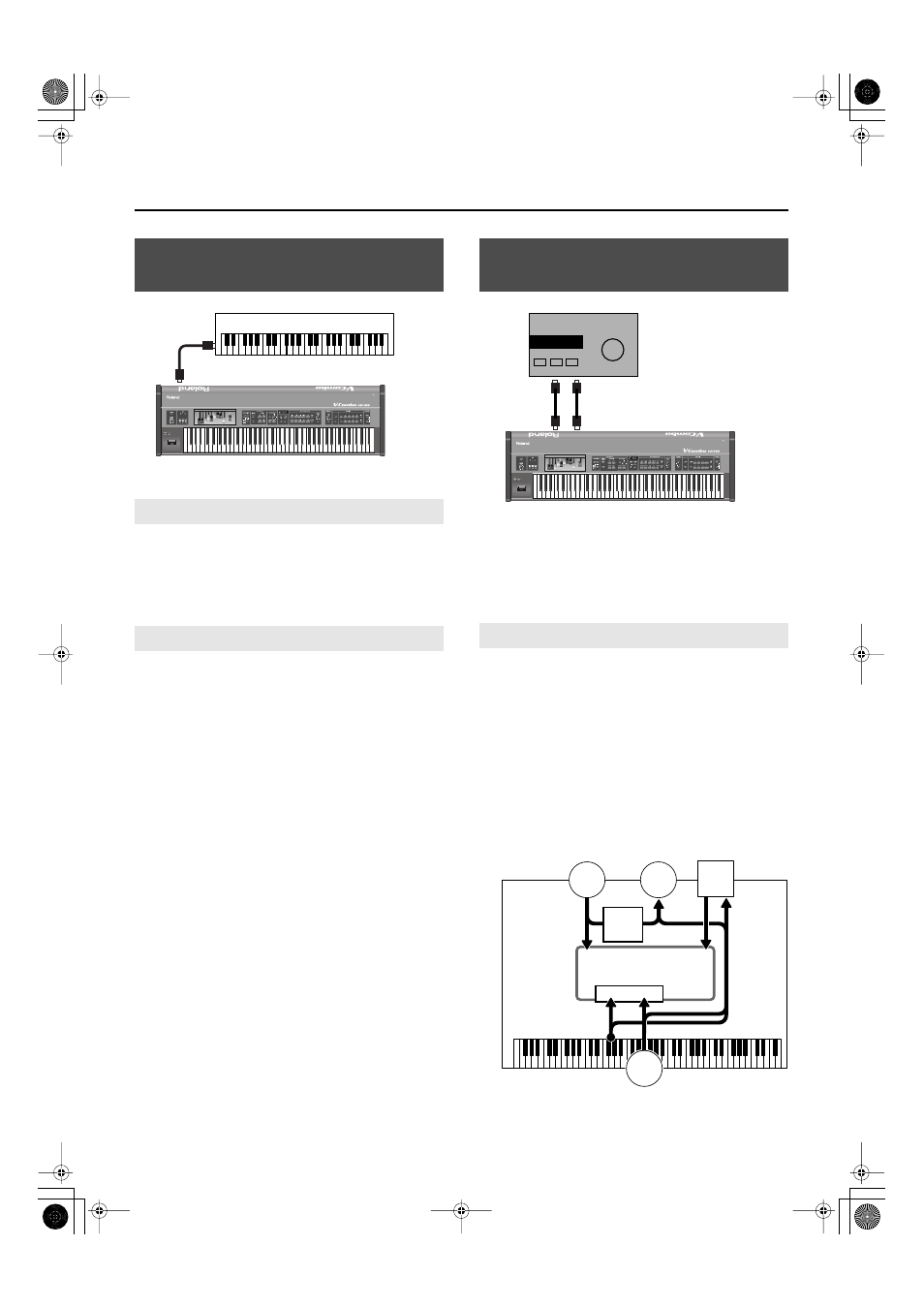

Connecting MIDI Equipment
fig.ConnectMIDIkey.eps
Turn the Function mode setting “Sub Keyboard Function” OFF.
* If “Sub Keyboard Function” is OFF, you can play any desired part of
the organ/ensemble sound generator by setting your MIDI
keyboard to the appropriate MIDI transmit channel (p. 57).
Set the Function mode “Sub Keyboard Function” to Upper (to play
the upper part) or Lower (to play the lower part).
* If “Sub Keyboard Function” (p. 57) is set to Upper (or Lower), MIDI
messages received at the MIDI IN connector will automatically be
converted to the MIDI channel specified for “Upper Organ MIDI
Channel” (or “Lower Organ MIDI Channel”). The routing will be the
same as for the MIDI PEDAL IN connector (p. 65).
fig.ConnectMIDISeq.eps
You can use a MIDI cable (sold separately) to connect a MIDI
sequencer to the VR-700; the sequencer can record your
performance on the VR-700, and the VR-700 can sound the playback
from the sequencer.
If your external MIDI sequencer’s MIDI Thru function is enabled,
change the following Function mode parameters as follows.
• Set “Local Control” to OFF (it will be ON when the power is turned
on)
• Set “MIDI Thru Switch” to OFF (factory setting is ON)
* The “Local Control” setting is not remembered by the VR-700. It will
be ON when you turn on the power.
* If “Sub Keyboard Function” (p. 57) is set to Upper (or Lower), MIDI
messages received at the MIDI IN connector will automatically be
converted to the MIDI channel specified by “Upper Organ MIDI
Channel” (or “Lower Organ MIDI Channel”). The routing will be the
same as for the MIDI PEDAL IN connector (p. 65).
fig.MIDIroute03.eps
Connecting an External MIDI
Keyboard
Playing a Desired Part (Factory Settings)
Playing the Upper Part or Lower Part
MIDI OUT
MIDI IN
VR-700
External MIDI keyboard
Connecting an External MIDI
Sequencer
Local Control Setting
MIDI OUT
MIDI IN
VR-700
MIDI OUT
MIDI IN
MIDI sequencer
VR-700
USB
MIDI
Organ/ensemble
sound generator
MIDI
PEDAL
IN
MIDI
IN
MIDI
OUT
Local Control
MIDI
Thru
Switch
