Connecting MIDI Equipment
* To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the power on all
devices before making any connections.
The VR-700 contains a sound generator for organ sounds and
ensemble sounds, and a sound generator for song playback.
The organ/ensemble sound generator is a multi-part sound
generator; with the factory settings, each part is assigned to the
following MIDI channels.
* MIDI messages received at the MIDI PEDAL IN connector are
automatically converted to the MIDI channel specified by “Pedal
Organ MIDI Channel” (p. 57).

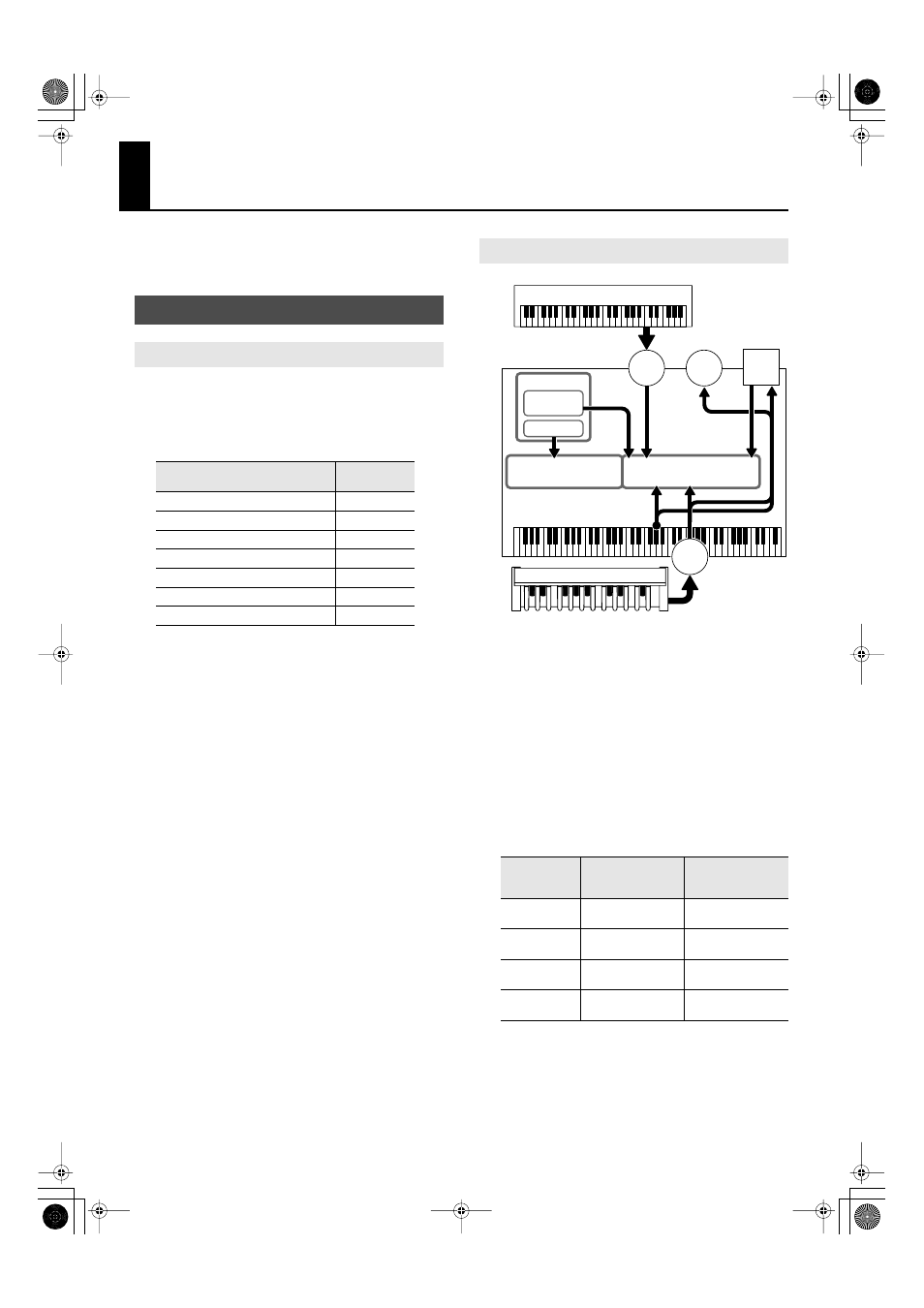

fig.MIDIroute01.eps
Inside the VR-700, MIDI connections are routed as shown in the
illustration.
With the factory settings, MIDI messages received at the MIDI IN
connector or USB MIDI connector will play the corresponding part of
the organ/ensemble sound generator. When a song is played back
on the internal player, it will be sounded by the song playback
sound generator.
* MIDI messages received at the MIDI PEDAL IN connector are
automatically converted to the MIDI channel specified by “Pedal
Organ MIDI Channel” (p. 57).
You can change the MIDI routing by changing the Function mode
setting “MIDI/Player Mode” (p. 57).
The VR-700’s Internal Structure
Sound Generator Section
Organ/ensemble sound generator parts
MIDI channel
(factory setting)
Upper organ 1
Lower organ 3
Pedal organ 2
Ensemble 1 4
Ensemble 2 5
Internal rhythm 10
Spring shock 9
MIDI Routing
MIDI/Player
Mode
Received at the MIDI
IN connector or USB
MIDI connector
Song playback
Mode 1
(factory setting) Organ/ensemble
sound generator Song playback
sound generator
Mode 2
Song playback
sound generator Song playback
sound generator
Mode 3
Organ/ensemble
sound generator Organ/ensemble
sound generator
Mode 4
Song playback
sound generator Song playback
sound generator
VR-700
Pedal keyboard
USB
MIDI
External MIDI keyboard
Player
Internal
rhythm
Song
Song playback
sound generator
Organ/ensemble
sound generator
MIDI
PEDAL
IN
MIDI
IN
MIDI
OUT
Keyboard/Controllers
