64
Using V-LINK to Control Video Equipment
V-LINK ( )is a function that allows you to perform music and video together. By using a V-LINK compatible video device, you can easily
enjoy a variety of video effects that are linked with your performance.
For example, by using the VR-700 in conjunction with the EDIROL Visual Sampler P-10, you can do the following things.
• Use the VR-700’s keys (the leftmost octave) to switch images.
• Use the VR-700’s bend lever to control the image playback speed.
• Use the VR-700’s D Beam controller to control the brightness or hue of the image.
* In order to take advantage of V-LINK between the VR-700 and the P-10, you’ll need to make connections using MIDI cables (sold separately).

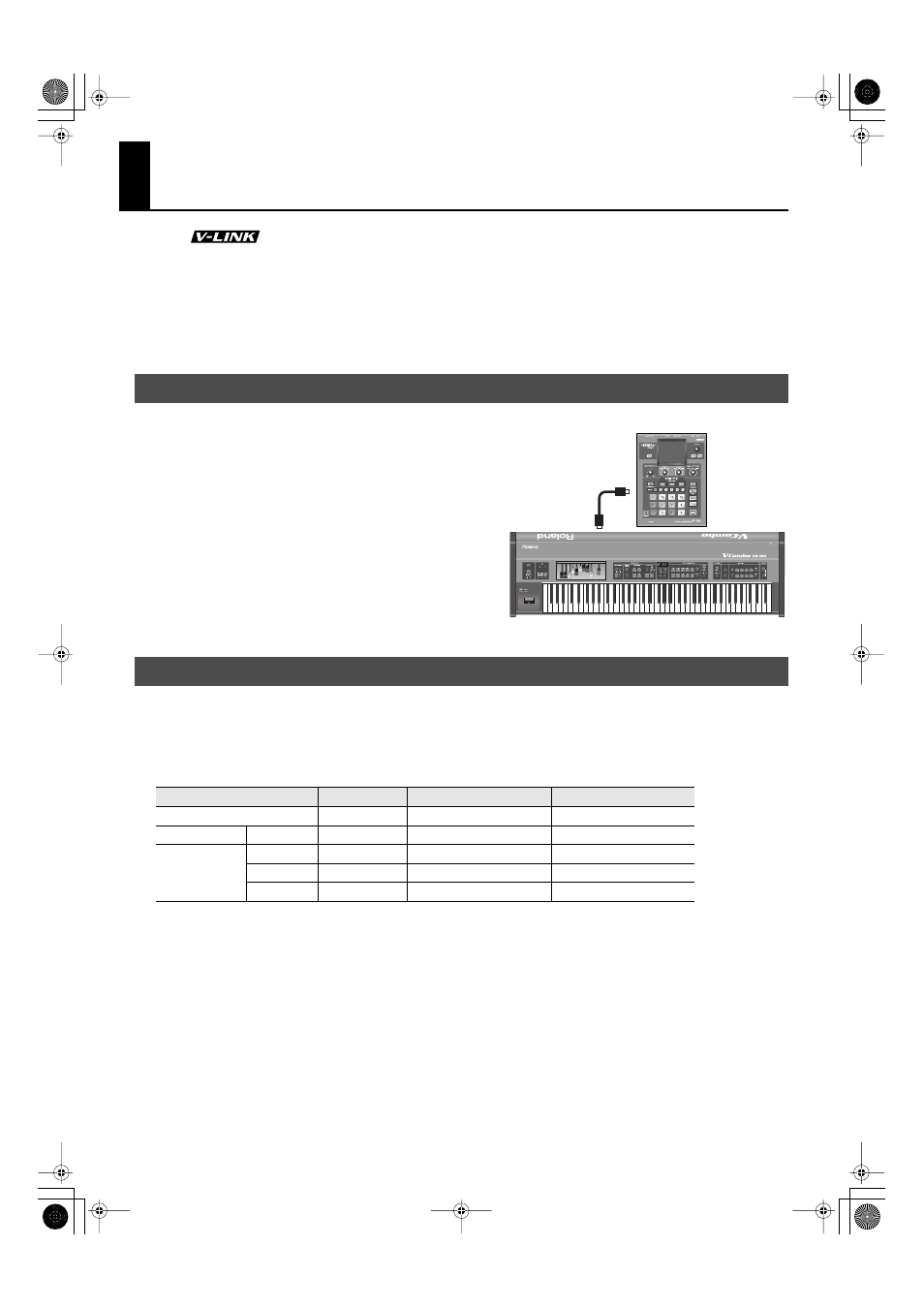

fig.V-LINKConnection.eps
This example explains connections with the EDIROL P-10.
Use a MIDI cable to connect the VR-700’s MIDI OUT connector to the P-10’s
MIDI IN connector.
* When making connections, you must first minimize the volume on all devices
and turn off their power to prevent malfunctions or speaker damage.
* Set the Function mode setting “Transmit Channel” (p. 60) to match the MIDI
receive channel of your video device.
1. Press the [V-LINK] button.
The V-LINK function will be turned on, and the [V-LINK] button will light.
Operations on the VR-700
Operating the VR-700’s keyboard and controllers will control the image accordingly.
* When V-LINK is on, the lowest 12 keys (one octave) will not produce sound.
2. To turn V-LINK off, press the [VLINK] button once again.
The V-LINK function will turn off, and the [V-LINK] button will go out.
Connection Example
Turning V-LINK On/Off
Keyboard/Controller V-LINK function Transmitted MIDI message Description
Keys (leftmost octave) Clip (1–12) Program Change Switch images.
Bender lever [BENDER] on Playback Speed Pitch Bend Controls the playback speed.
D Beam controller
[PITCH] on Playback Speed Pitch Bend Controls the playback speed.
[FILTER] on Color Cb CC #74 Controls the hue and brightness.
[VOLUME] on Video Fader CC #11 Controls the video fader.
MIDI OUT
MIDI IN
EDIROL P-10
VR-700
