Appendix A Device-Specific Information
NI 6124/6154 User Manual A-8 ni.com
NI 6154 I/O Connector Pinout

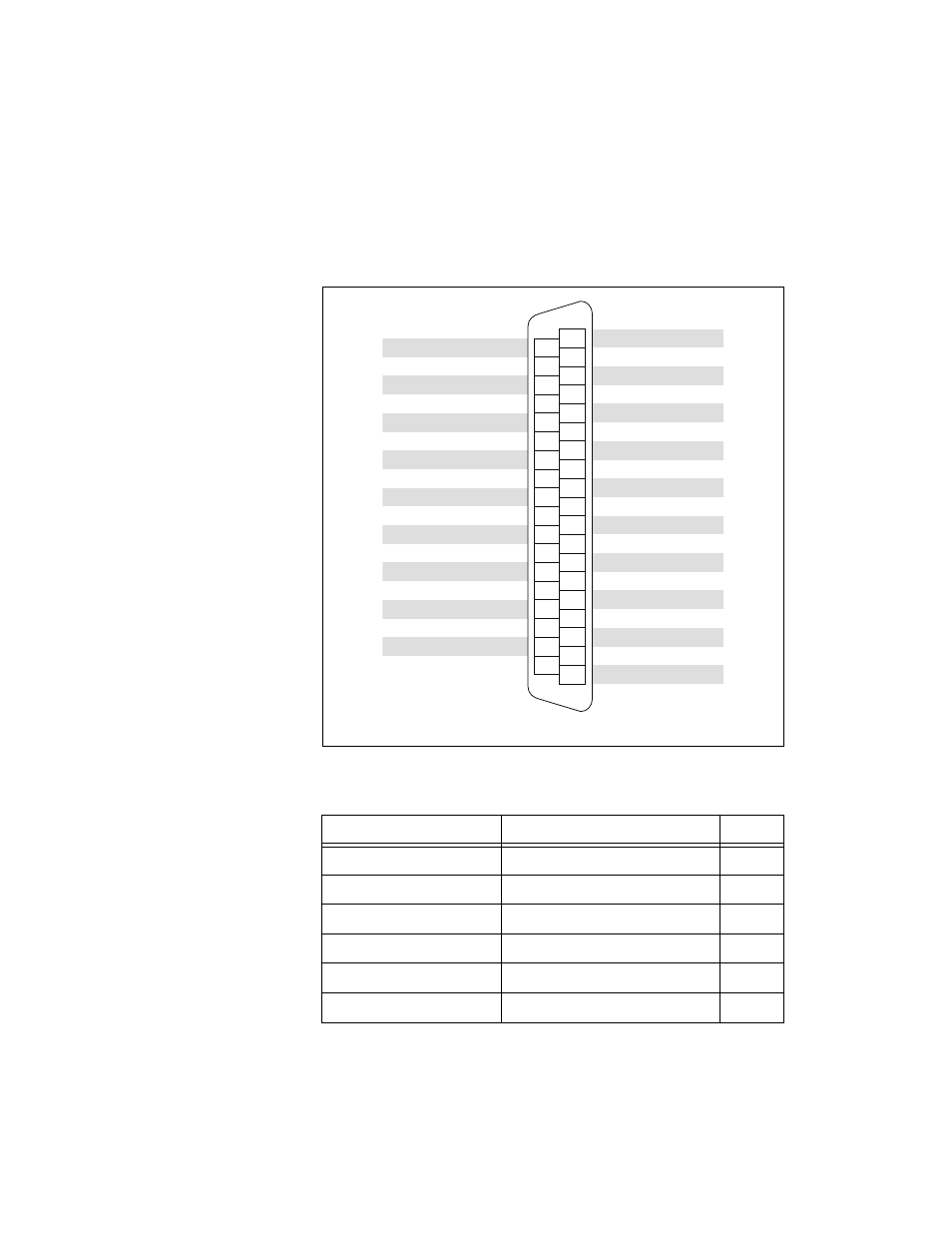

Figure A-3 shows the pin assignments for the 37-pin I/O connector on the
NI 6154.
Figure A-3. NI 6154 Pinout
Table A-2. NI 6154 Device Default NI-DAQmx Counter/Timer Pins
Counter/Timer Signal Default Pin Number (Name) Port
CTR 0 SRC 13 (PFI 0) P0.0
CTR 0 GATE 32 (PFI 1) P0.1
CTR 0 AUX 33 (PFI 2) P0.2
CTR 0 OUT 17 (PFI 6) P1.0
CTR 0 A 13 (PFI 0) P0.0
CTR 0 Z 32 (PFI 1) P0.1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
AI 0–
NC
AI 1+
AI 2–
NC
AI 3+
AO 0–
NC
AO 1+
AO 2–
NC
AO 3+
PFI 0/P0.0 (Input)
D GND
PFI 3/P0.3 (Input)
D GND
PFI 6/P1.0 (Output)
D GND
PFI 9/P1.3 (Output)
AI 0+
AI 1–
NC
AI 2+
AI 3–
NC
AO 0+
AO 1–
NC
AO 2+
AO 3–
NC
PFI 1/P0.1 (Input)
PFI 2/P0.2 (Input)
PFI 4/P0.4 (Input)
PFI 5/P0.5 (Input)
PFI 7/P1.1 (Output)
PFI 8/P1.2 (Output)
NC = No Connect
