Installation / 27

P0881594 Issue 01

MICS-XC Norstar-Companion Installer Guide

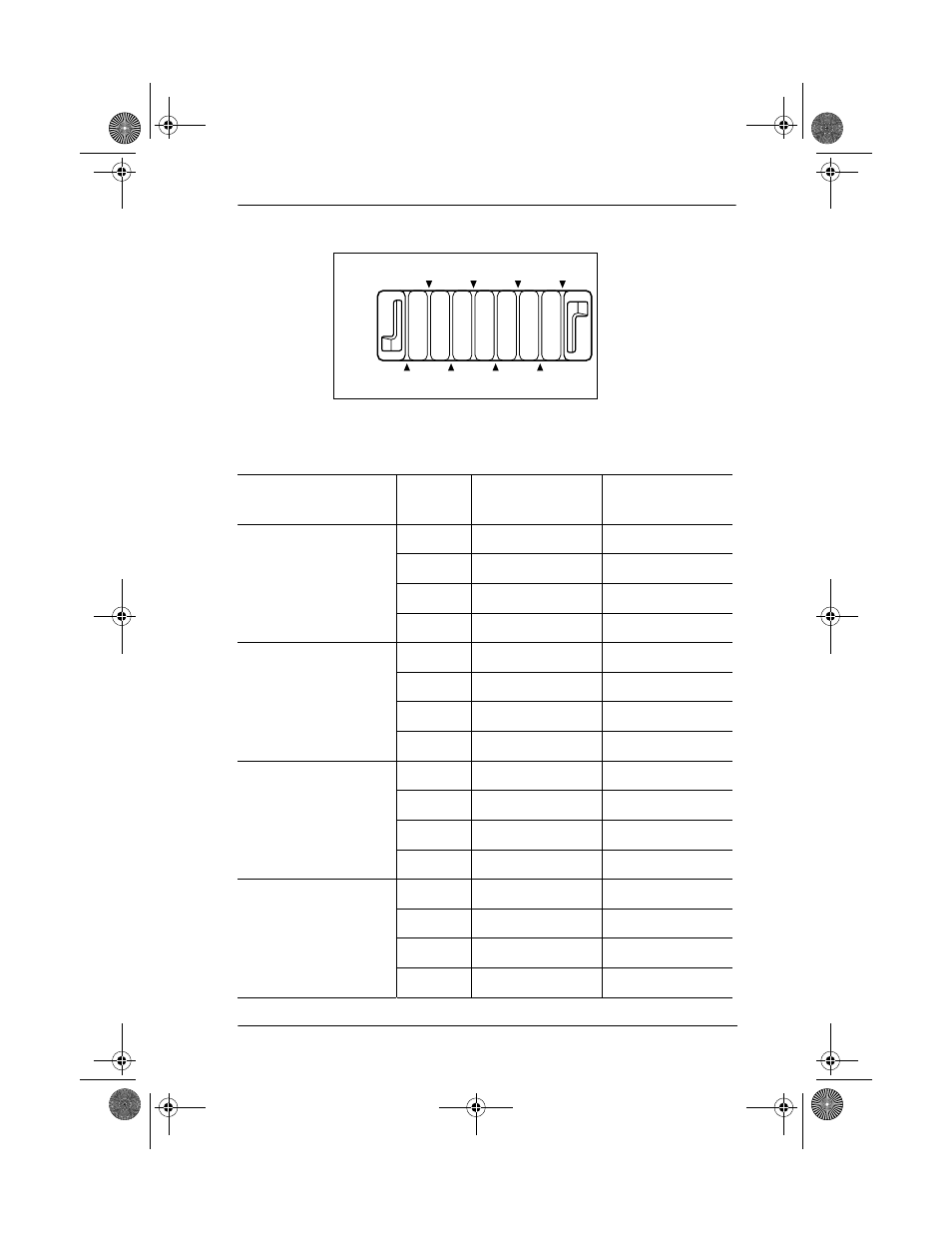

Input connector pinout

Input wiring

Connector

Pin

Signal

Output

connector

IBIX1

1, 2

TCM 1

OBIX1

3, 4

TCM 2

OBIX2

5, 6

TCM 3

OBIX3

7, 8

TCM 4

OBIX4

IBIX2

1, 2

TCM 5

OBIX5

3, 4

TCM 6

OBIX6

5, 6

TCM 7

OBIX7

7, 8

TCM 8

OBIX8

IBIX3

1, 2

TCM 9

OBIX9

3, 4

TCM 10

OBIX10

5, 6

TCM 11

OBIX11

7, 8

TCM 12

OBIX12

IBIX4

1, 2

TCM 13

OBIX13

3, 4

TCM 14

OBIX14

5, 6

TCM 15

OBIX15

7, 8

TCM 16

OBIX16

IBIXn

Pin 3

Pin 1

Pin 2

Pin 4

Pin 6

Pin 8

Pin 5

Pin 7
