Adding and replacing DC power supplies 41
Installing a DC Power Supply in an Ethernet Routing Switch 8000 Series Chassis

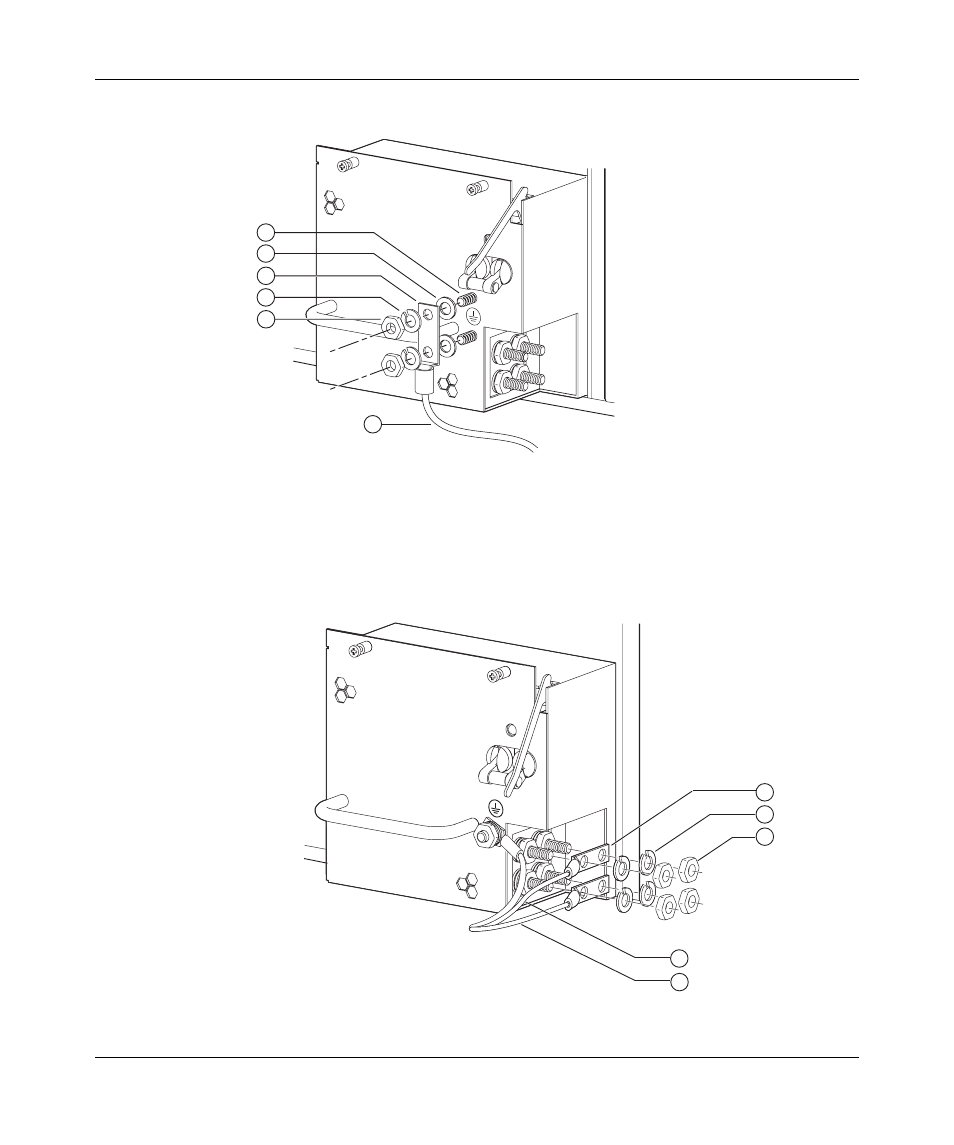

Figure 17 Attaching the earth ground lead to the ground studs (8005)
11 Attach the positive voltage lead to the positive terminal on the power supply,
inserting a lock washer between the crimp lug and each hex nut ( Figure 18 ).
Figure 18 Attaching the voltage leads to the power supply terminals
-DC
+DC
11401FA
3
4
5
2
1
1 = Grounding stud
2 = Flat washer
3 = Crimp lug 4 = Lock washer
5 = Hex nut
6 = Earth ground lead
6
-DC
10300FA
-DC
+DC
4
5
1 = Two-hole crimp lug
2 = Lock washer
3 = Hex nut 4 = Positive lead wire
5 = Negative lead wire
3
2
1
