Adding and replacing DC power supplies 35
Installing a DC Power Supply in an Ethernet Routing Switch 8000 Series Chassis

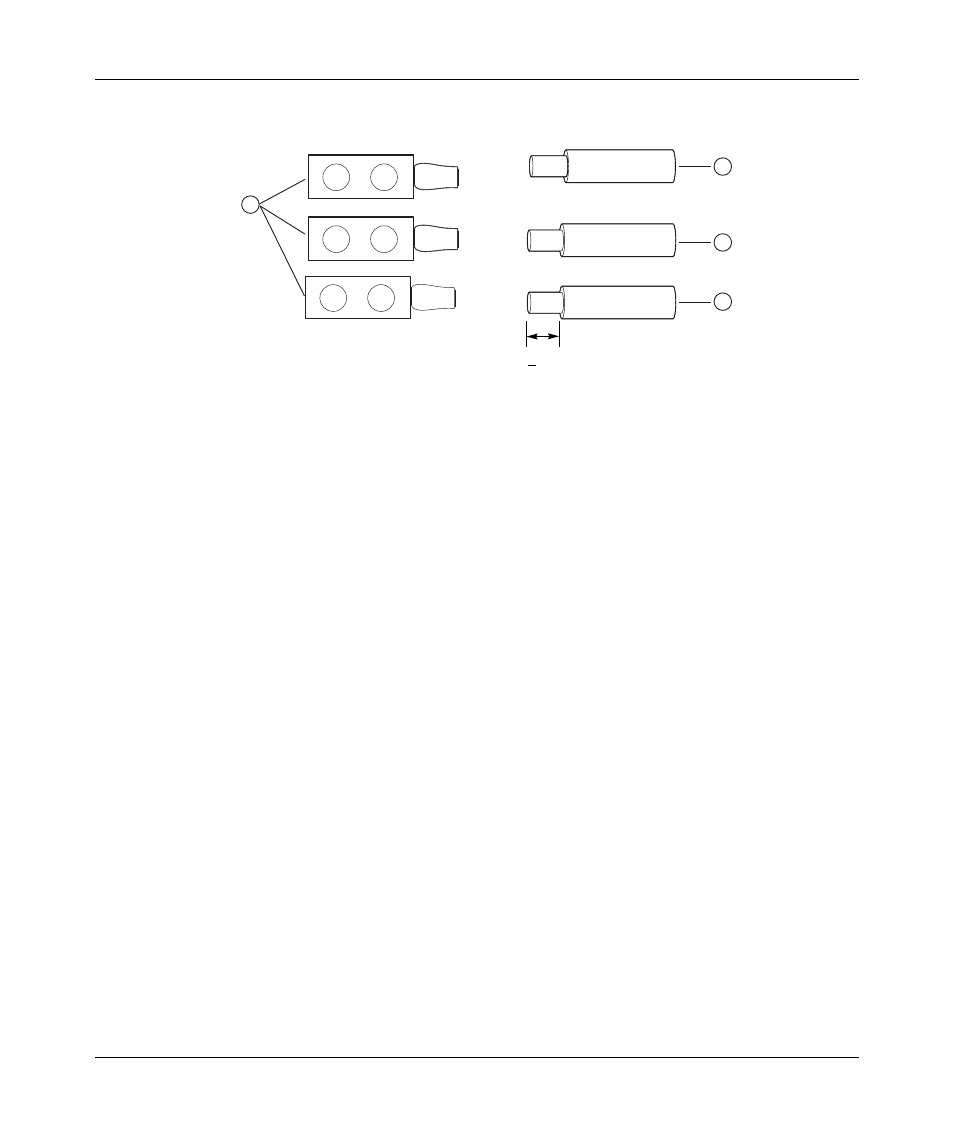

Figure 9 Cable stripping requirements for 8005DC
2 Crimp the lugs onto the cables using a standard crimping tool.
Failure to properly crimp the lugs onto the cables constitutes a safety hazard.
3 If necessary, use a heat gun to shrink the tubing around the cable.
EA
0.81 in. (2.1 cm) 3 places >
1
2
3
4
1 = Two-hole crimp lug
2 = Ground lead wire 3 = Positive lead wire
4 = Negative lead wire
