28 Adding and replacing DC power supplies
313070-E Rev 00
Removing the bottom bezel (8010co chassis)
To access the 8010co chassis power supplies, you must remove the bottom front
bezel.
To remove the bottom front bezel:
1 Using a Phillips screwdriver, loosen the two captive screws that secure the
bezel to the chassis (
Figure 3 ).
2 Pull the top of the bezel forward and then lift the bezel from the two tabs on
the bottom of the chassis.

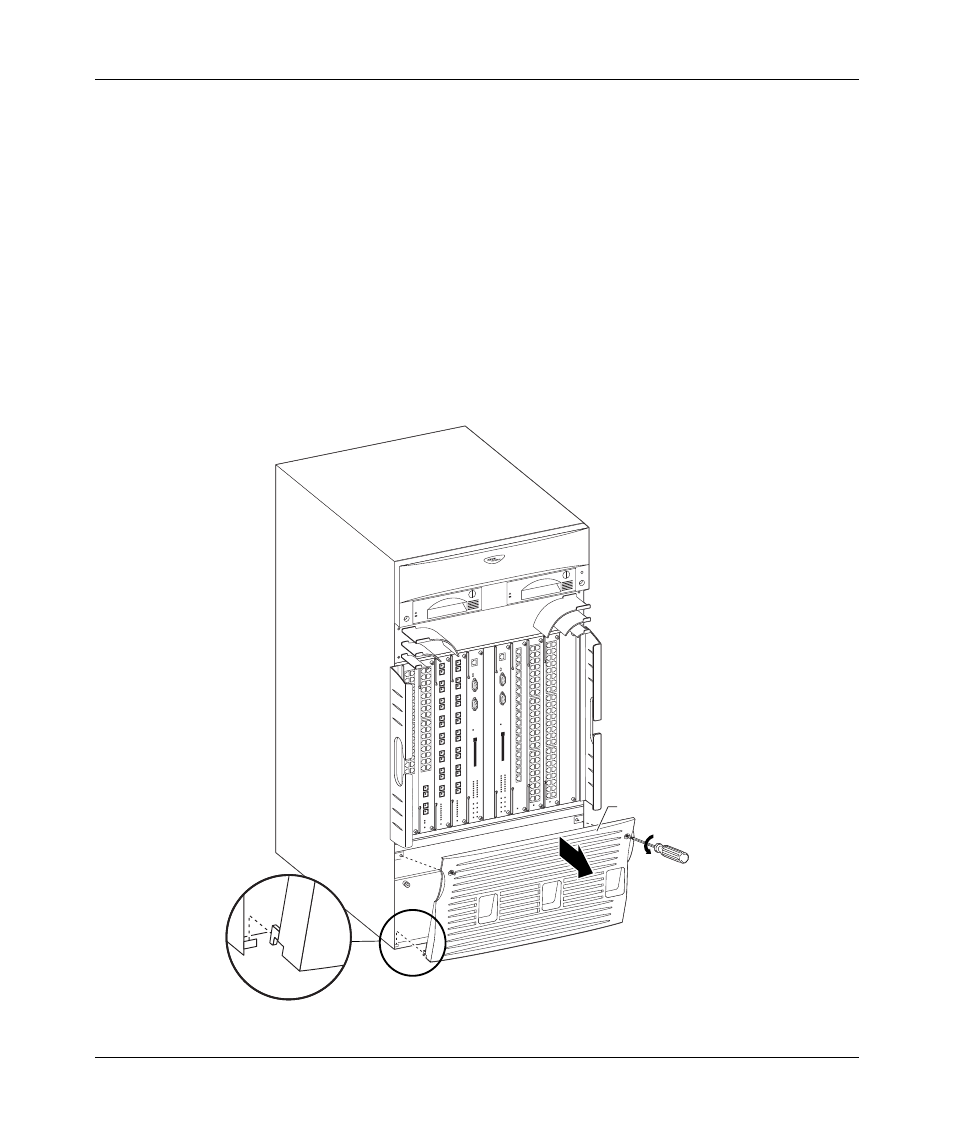

Figure 3 Removing the bottom front bezel from the 8010co chassis
Fail Pass
Fail Pass
Bottom bezel
10363FABIPnew
