Adjustments and Settings for Recording :
Setting Time Data
A
d
ju
stm
ents and S
e
tti
ngs f
o
r
Rec
o
rdi
n
g
In the unit, there is a video signal delay in the camera,
which is required or the process of converting video
images taken with the image-shooting element from the
progressive signals to the interlace signals. Since time is
required for making the 2:3 pull-down from the 24P frame,
there is a video signal delay in the camera. When
recording from a device that can record images without a
delay and the unit is connected in parallel, it is necessary
to synchronize the time code. To set this timing, open the
the TC VIDEO SYNCRO item.
Set by referring to the connection example.
Setting of the TC VIDEO SYNCRO item

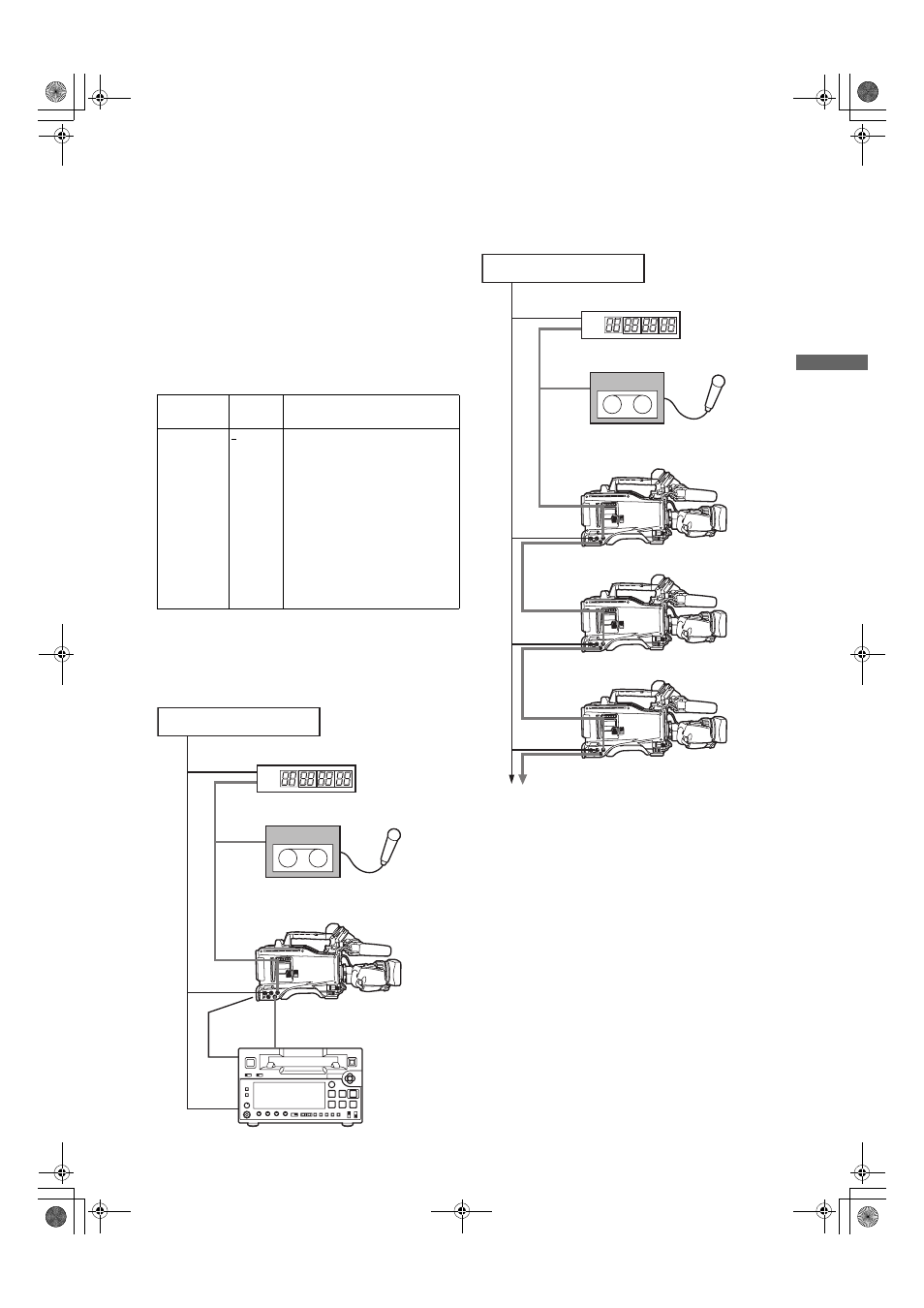

Example 3:
When the unit and an external device are locked to the
external time code generator, which is connected
externally, and when simultaneous recording is made
by using the TC OUT output signals.
Example 4:
When the unit and an external device are locked to the
external time code generator and when several units
of the camera are connected in a cascade
configuration.
Item
Variable
range
Remarks
TC VIDEO
SYNCRO
0
1
2
3
For setting to correct the time code
according to the delay of video
signals.
0: Do not correct.
1: To delay the time code to be input
according to the timing of the
video images.
2: To forward the time code to be
output according to the timing of
the video images.
3: To delay the time code to be input
and forward the time code to be
output, respectively, according to
the timing of the video images.
TCG
TC OUT
TC OUT
TC IN
REF IN
TC IN
TC IN
GENLOCK IN
VIDEO IN
SDI IN
HD SDI IN
AJ-HPX2000
DAT
Reference video signal
External time code generator
Device that records images without a
delay
Settings of the TC
VIDEO SYNCRO
item: 1
MON OUT
or
VIDEO OUT
VTR etc.
TCG
TC OUT
TC OUT
TC IN
TC IN
GENLOCK IN
AJ-HPX2000
TC IN
AJ-HPX2000
GENLOCK IN
GENLOCK IN
DAT
TC OUT
TC IN
AJ-HPX2000
TC OUT
Reference video signal
External time code generator
Device that records images without a delay
Settings of the TC
VIDEO SYNCRO
item: 1
2nd unit and later
Settings of the TC
VIDEO SYNCRO
item: 0
1st unit
Settings of the TC
VIDEO SYNCRO
item: 0
