‹ Note
Ensure that the polarities are used correctly for a power
supply from an external source.

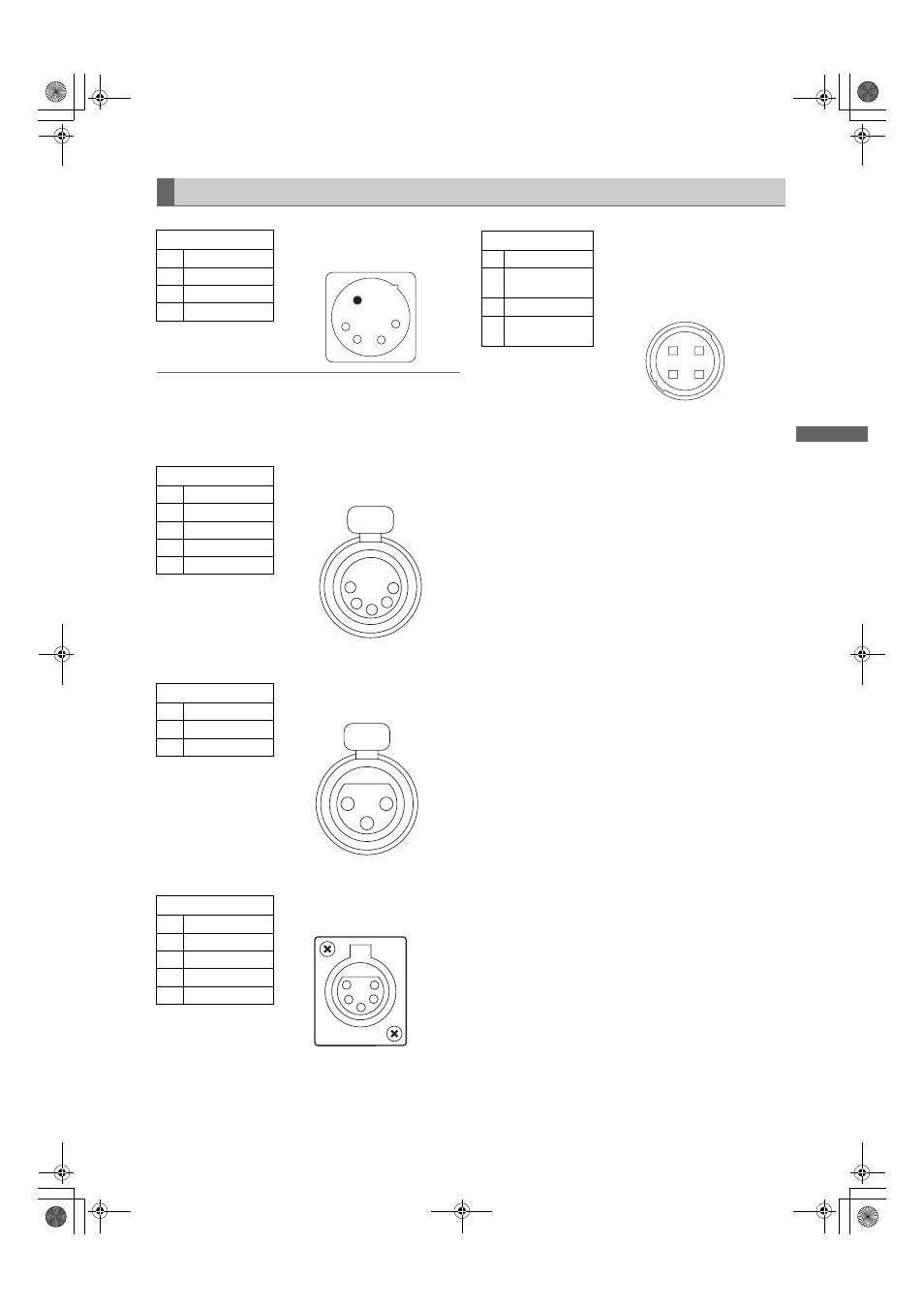

Connector Signals
DC IN
1 GND
2 NC
3 NC
4 +12V
FRONT MIC IN
1 GND
2 L CH IN (H)
3 L CH IN (C)
4 R CH IN (H)
5 R CH IN (C)
AUDIO IN
1 GND
2 AUDIO IN(H)
3 AUDIO IN(C)
AUDIO OUT
1 GND
2 L CH OUT (H)
3 L CH OUT (C)
4 R CH OUT (H)
5 R CH OUT (C)
1
2 3
4
Matsushita part number K1AA104H0038
Maker part number
HA16RX-4P SW1
(Hirose Denki)
PUSH
1 5
2
3
4
Matsushita part number K1AB105B0002
Maker part number
NC5FBH
(NEUTRIK)
PUSH
1
3
2
Matsushita part number K1AB103A0011
Maker part number
HA16PRM-3SG
(Hirose Denki)
5
4
3
2
1
Matsushita part number K1AA105H0016
Maker part number
HA16RD-5P(76)
(Hirose Denki)
DC OUT
1 GND
2
R TALLY
(Open collector)
3 REC START SW
4
+12V OUT
(Max. 1.5 A)
1
2 3
4
Matsushita part number K1AY104J0001
Maker part number
HR10A-7R-4SC(73)
(Hirose Denki)
Connector at the cable side
Maker part number
HR10A-7R-4P(73)
(Hirose Denki)
