104 Preparation Preparing for Audio Input

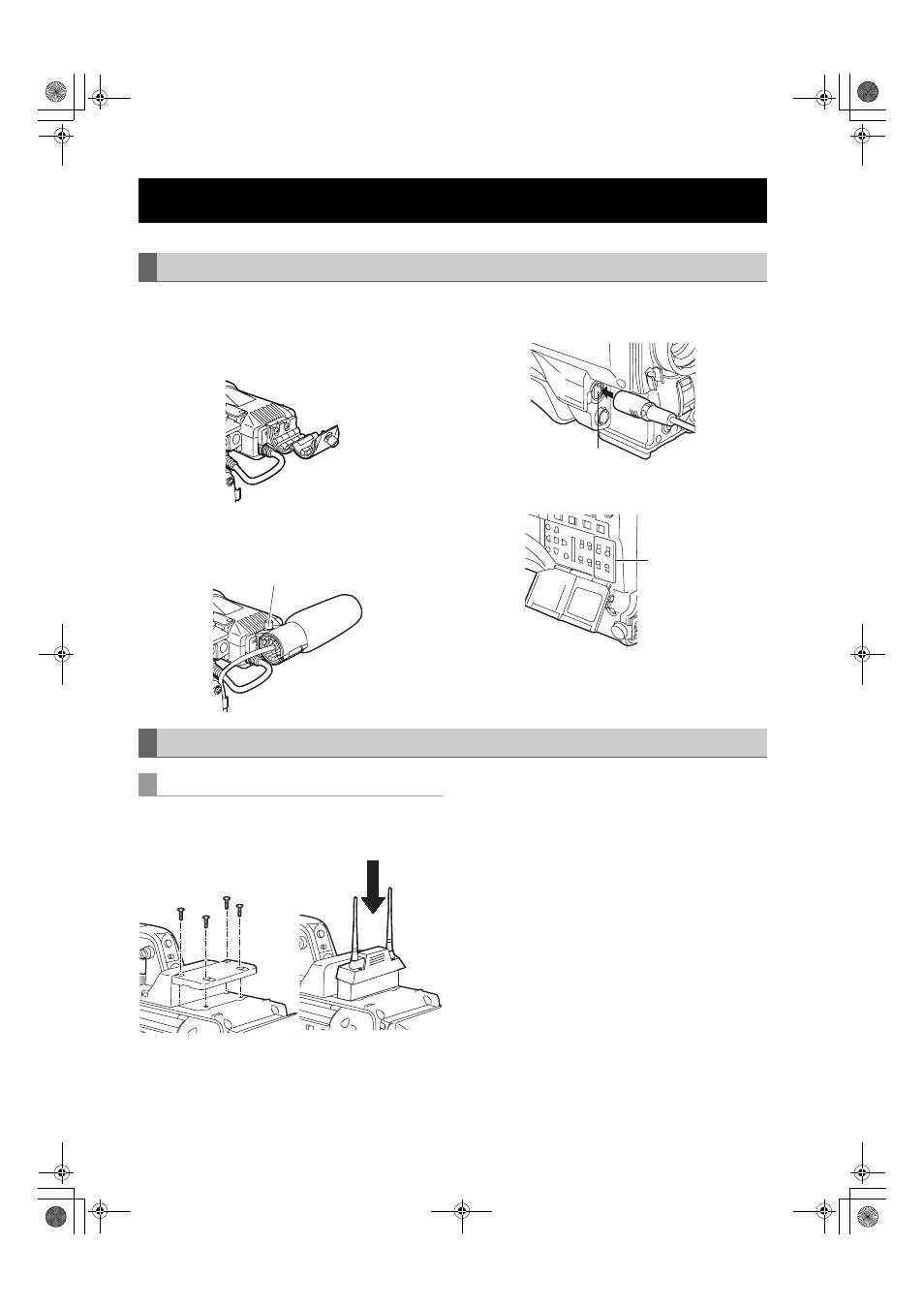

Take the following steps to prepare the camera for connecting audio input devices.
AJ-HPX2000 can be equipped with the AJ-MC900G stereo
microphone kit (an extra-cost option).
1
Open the microphone holder.
2
Mount the microphone and tighten the clamping
screw. The microphone must be attached with the UP
mark on the microphone facing up.
3
Connect the microphone cable to the MIC IN jack on
the camera.
4
Set the AUDIO IN switch to [FRONT] depending on
the audio channel to be recorded.
1
Remove the cover to insert the wireless receiver and
secure it with the screws.
2
Set the AUDIO IN switch to [W.L.] depending on the
audio channel to be recorded.
Preparing for Audio Input
When Using the Front Microphone
Clamping Screw
MIC IN Jack
AUDIO IN
Switch
When Using a Wireless Receiver
When Using the Unislot Wireless Receiver
