144 Maintenance and Inspections : Maintenance

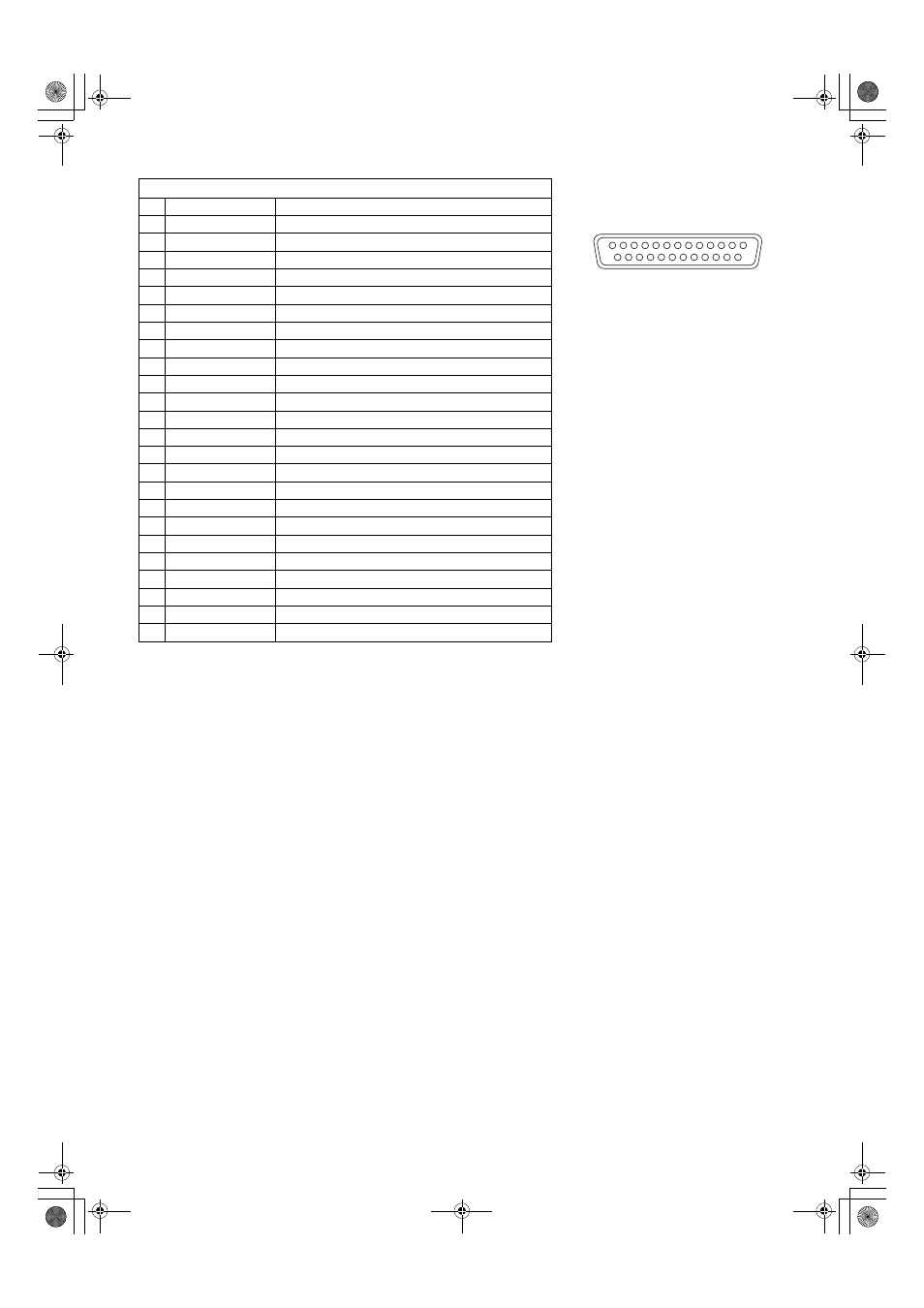

Unislot Interface
1 CH-1 SHIELD GND
2 CH-1 HOT Audio input from the wireless receiver: HOT
3 CH-1 COLD Audio input from the wireless receiver: COLD
4 GND GND
5 +12V UNREG Power supply to the wireless receiver
6 RX ON Power supply remote output to the wireless receiver
7 RF WARN RF warning input from the wireless receiver
8 RM5 Not used
9 RM4 Not used
10 SPARE 1 Not used
11 SPARE 2 Not used
12 EXT CLK Not used
13 CLK SHIELD Not used
14 CH-2 SHIELD Not used
15 CH-2 HOT Not used
16 CH-2 COLD Not used
17 +5.6V Power supply to the wireless receiver
18 VIDEO OUT Not used
19 VIDEO RET Not used
20 VIDEO EN Not used
21 RM 1 (RM CLK) Not used
22 RM 2 (RM DATA) Not used
23 RM 3 (RM WR) Not used
24 RM +5V Not used
25 RM GND Not used
13 1
14 25
Matsushita part number K1GB25A00010
Maker part number
HDBB-25S(05)
(Hirose Denki)
