Powerware 9335 User Manual
Page 85

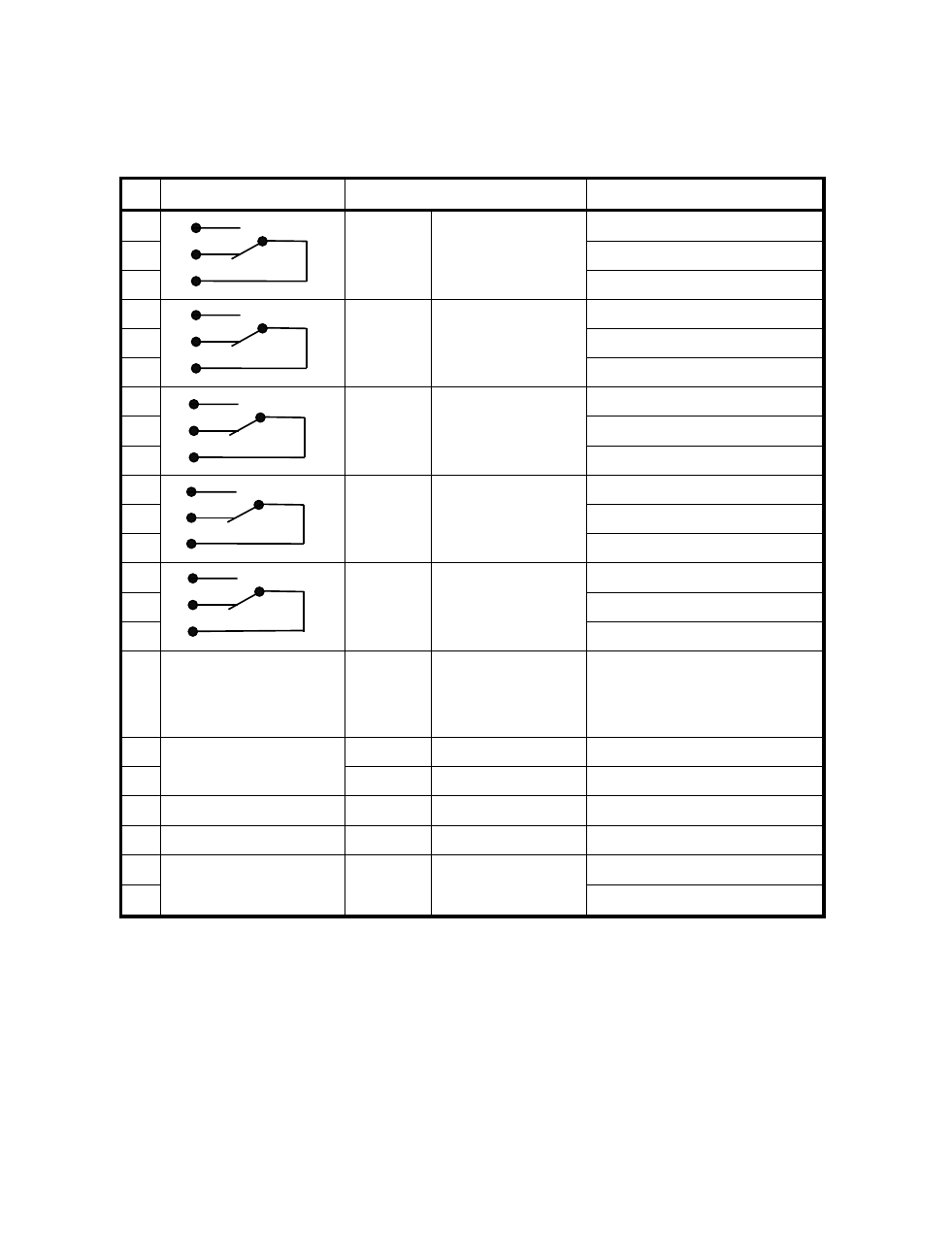

Table H. Definition of pin connections on JD2 (25 pin DB-25P/F)
Pin Contact
Signal
Function
1
Mains
failure
2
ALARM MNS
Mains
present
3
Common
4
Load on inverter
5
Message LD-INV
6
Common
7
Battery
low
8
Alarm BATT_LOW
Battery
OK
9
Common
10
Load on Mains (BYPASS mode)
11
Message LD_MNS
12
Common
13
Common Alarm
14
Alarm
COMMON_ALARM No Alarm Condition
15
Common
16
-
19
NC
Not Connected
20
For future use
21
For future use
22
PS_12
GND
23
PS_12
+ 12V (Imax = 100 mA)
24
Not
Connected
25
Not
Connected
Contacts are rated at 60 volts maximum DC or 30 volts RMS AC, and 500 mA.
maximum current and should be supplied by a LVLE source in compliance with UL 1778
Powerware 9335 (80 kVA and 120 kVA) Installation and Operation
A-7
164201396 REV A 07/11/2003
