10-2 Powerware 9335 (80 kVA and 120 kVA) Installation and Operation
164201396 REV A 071103

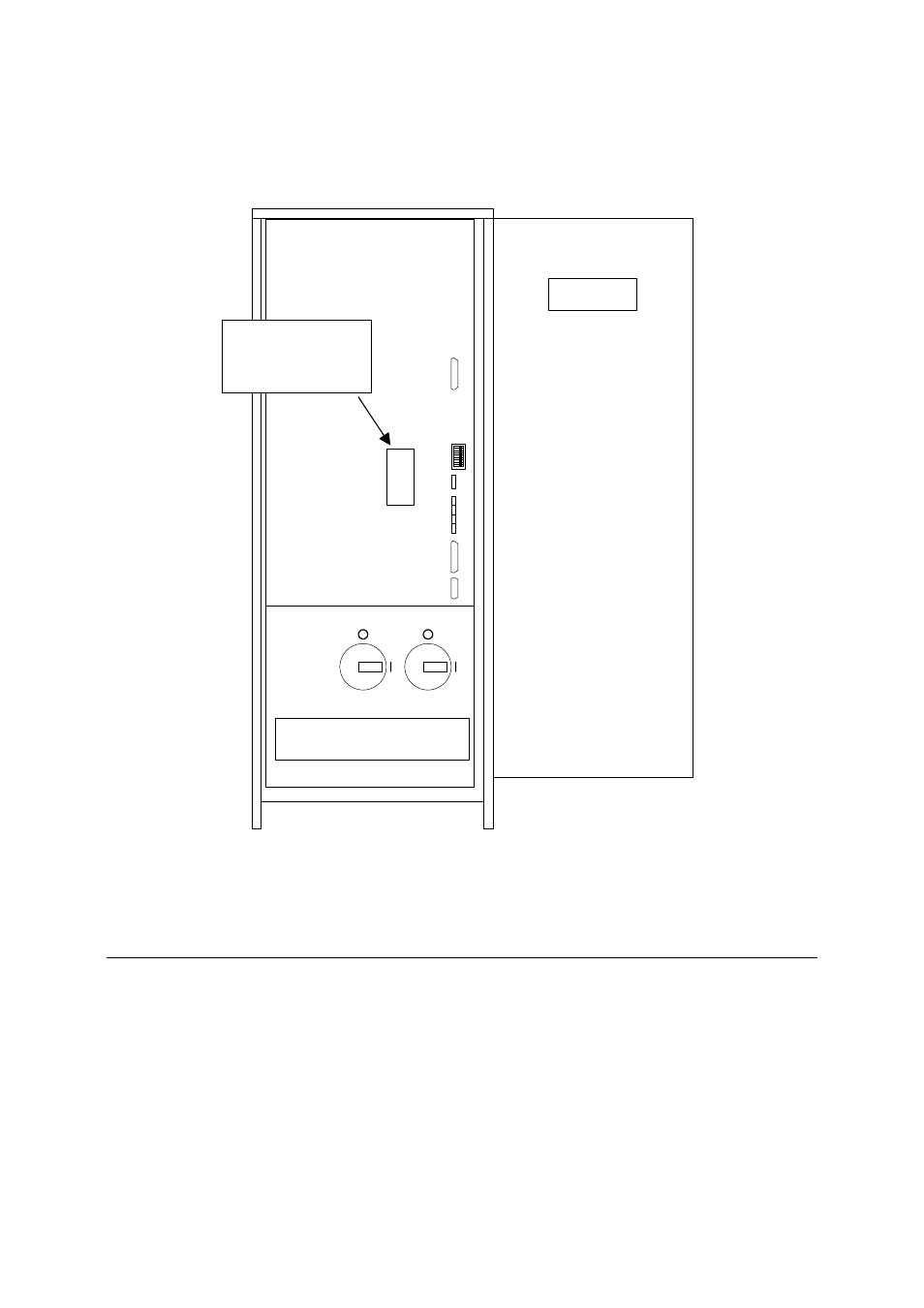

Figure 10–1. X–Slot Location on Front of Powerware 9335 UPS Cabinet
10.2 Single-Port Serial Card
To establish communications between the UPS and a computer, connect your computer
to the UPS communication port using the supplied communication cable.
When the communication cable is installed, power management software installed on
your computer can exchange data with the UPS. Powerware supplies monitoring
software with each UPS. See instructions packaged with the software for installation
and operation. The software polls the UPS for detailed information on the status of the
Control Panel
X2
X3
X4
X1
SW1-1
SW2-9
JD8
JD2
JD1
IA1 IA2
X–Slot location
for insertion of
X–Slot Cards
