Powerware 9335 (80 kVA and120 kVA) Installation and Operation 11-1
164201396 REV. A 071103
11.1 Generator ON Facility
The generator ON facility must use a normally open contact that closes to indicate that a
generator is running and supplying input power to the UPS. When used, this facility
disables the UPS static bypass and prevents the UPS from transferring the load into the
generator power supply. The user may also elect prevention of battery charging while
on generator input. Both or either of these features may be selected via the control
panel. (See section 7.3.8, Set Up)

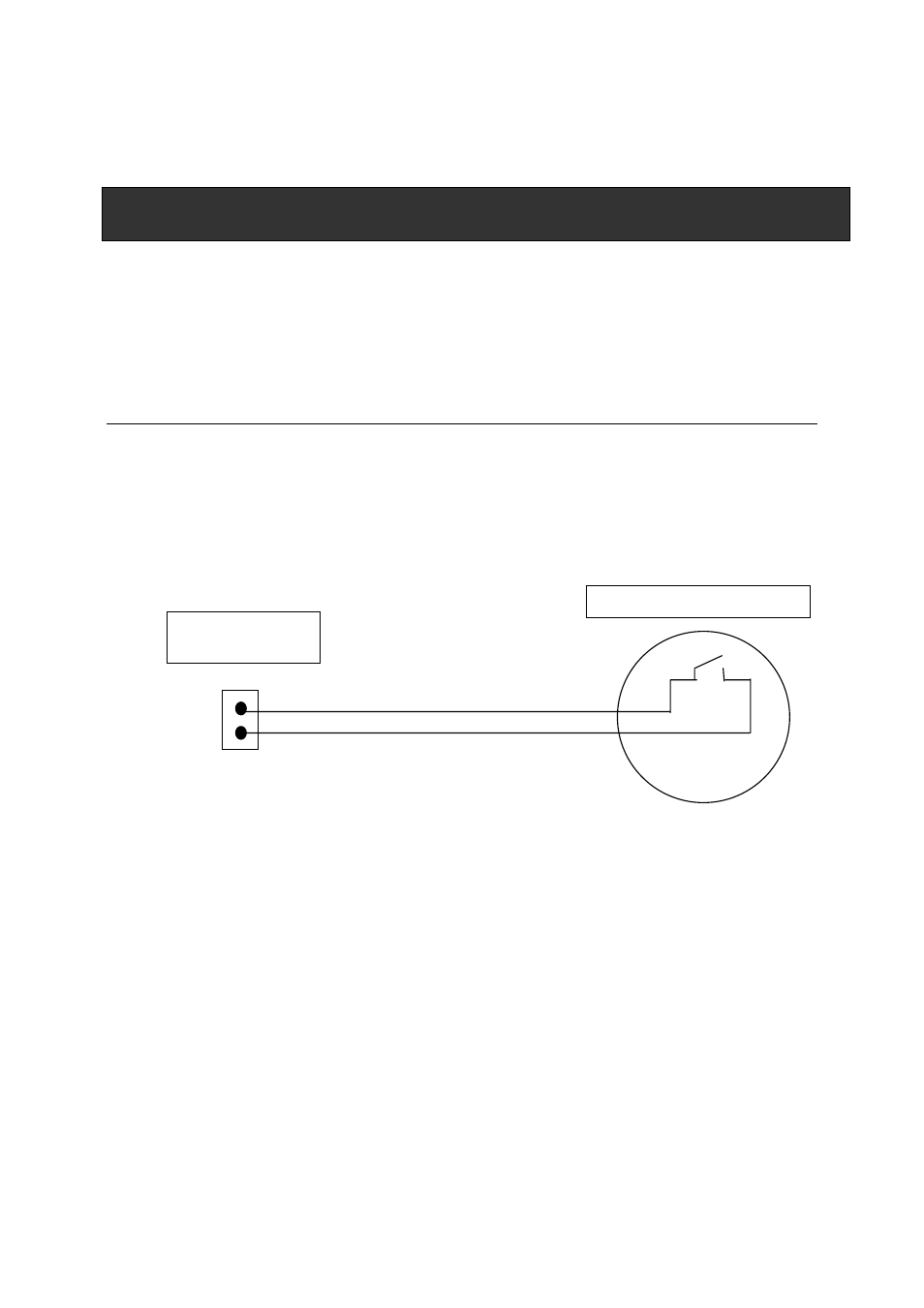

Figure 11–1. Generator ON Connection
11
Options
UPS Generator
port (X2)
Generator alarm panel
