Promise Array Management
46
Create a RAID Server
The Message Server relays data and commands between the Monitoring Utility
on this computer and the Message Agent on the RAID PC. In order for your
monitoring PC to communicate with the Message Server, you must create a
RAID Server.

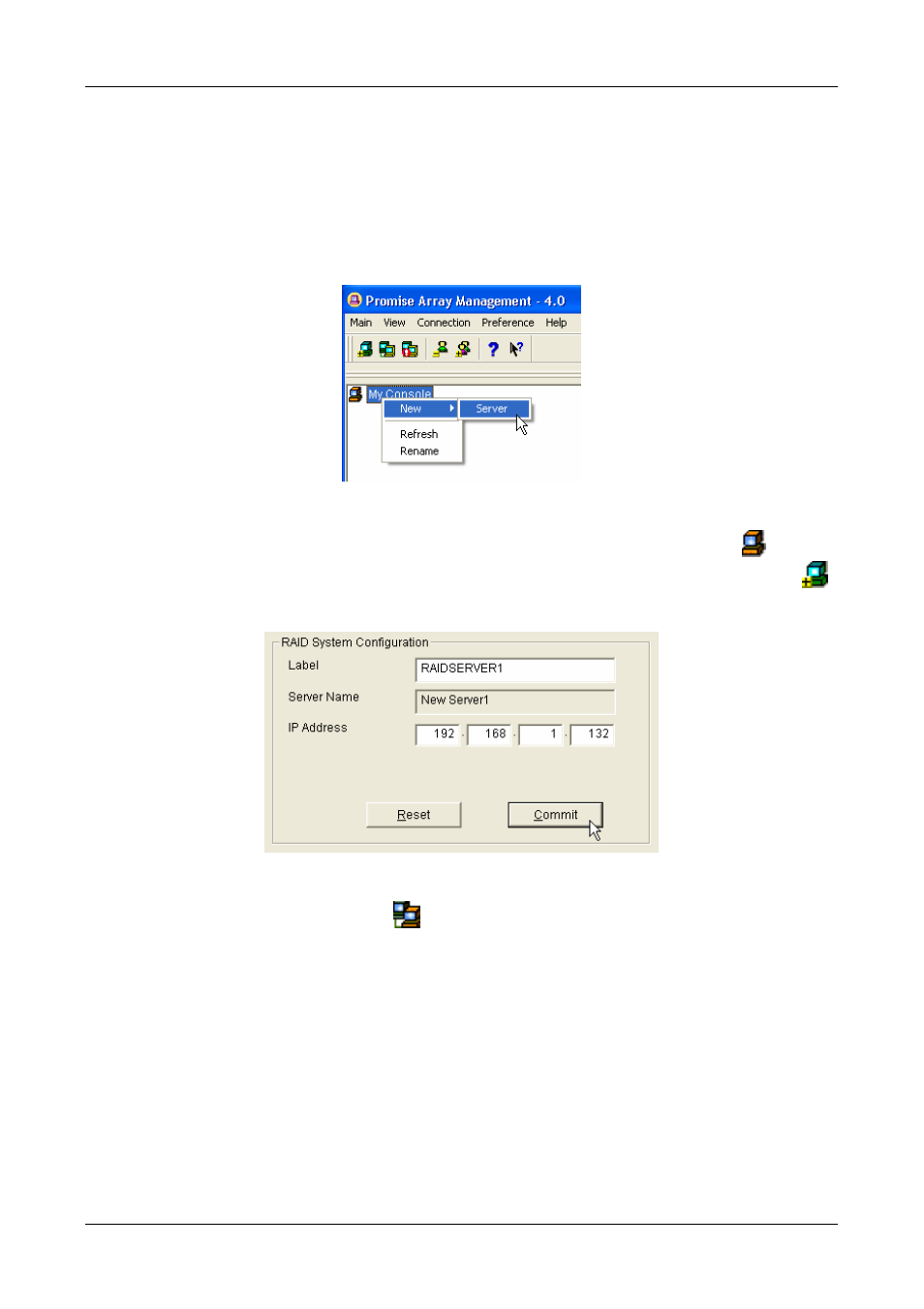

Figure 42. Create a New Server.
1. The first time you run Remote PAM, right-click on the MyConsole icon
and select New > Server from the popup menu. Or click the New Server
icon in the Toolbar. A RAID Server icon appears.
Figure 43. Input the Server's IP address.
2. Click on the RAID Server icon. In Information View (above) type in the
IP address of the computer where the Message Server software is installed.
If the Message Server software is installed on the monitoring PC, you can
use the default 127.0.0.1 IP address.
3. Click Commit. A list of networked RAID PCs appears as shown in Figure 43,
above.
