Chapter 5: RAID Monitoring and Maintenance
45
Remote PAM
Log-in
The RAID Server remains under the My Console icon until deleted. It continues
to work as long as the IP address is correct.

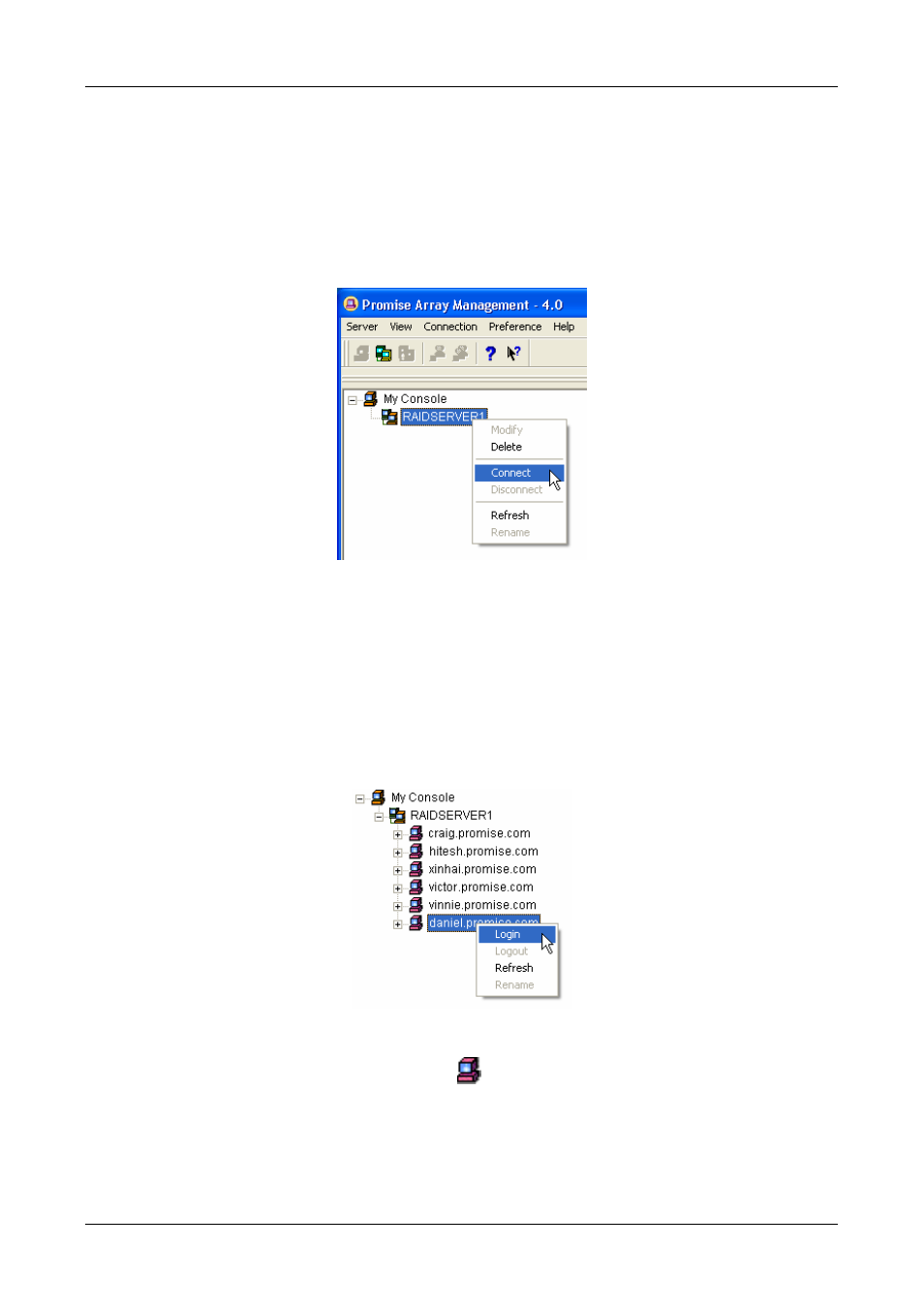

Figure 40. Connect to the Message Server.
If PAM not connected to an existing RAID Server:
• Right-click on a RAID Server icon and select Connect from the popup
menu.
• Or right-click on the RAID Server icon and click the Connect icon in the
Toolbar.
The Login list of networked RAID PCs appears.
Figure 41. List of RAID PCs on the network.
1. Right click on the RAID Machine icon in Tree View. Select Login from
the popup menu (see above). The Login dialog box appears.
2. In the Login dialog box, type your Username and Password, and click OK.
