Promise Array Management
30
Tree View
Local PAM
The Monitor window is the user interface for PAM. It has three views: Tree View,
Object View and Information View which were introduced in Chapter 3.
The Tree View displays all of the elements of your RAID system. Use it to
navigate to specific components.

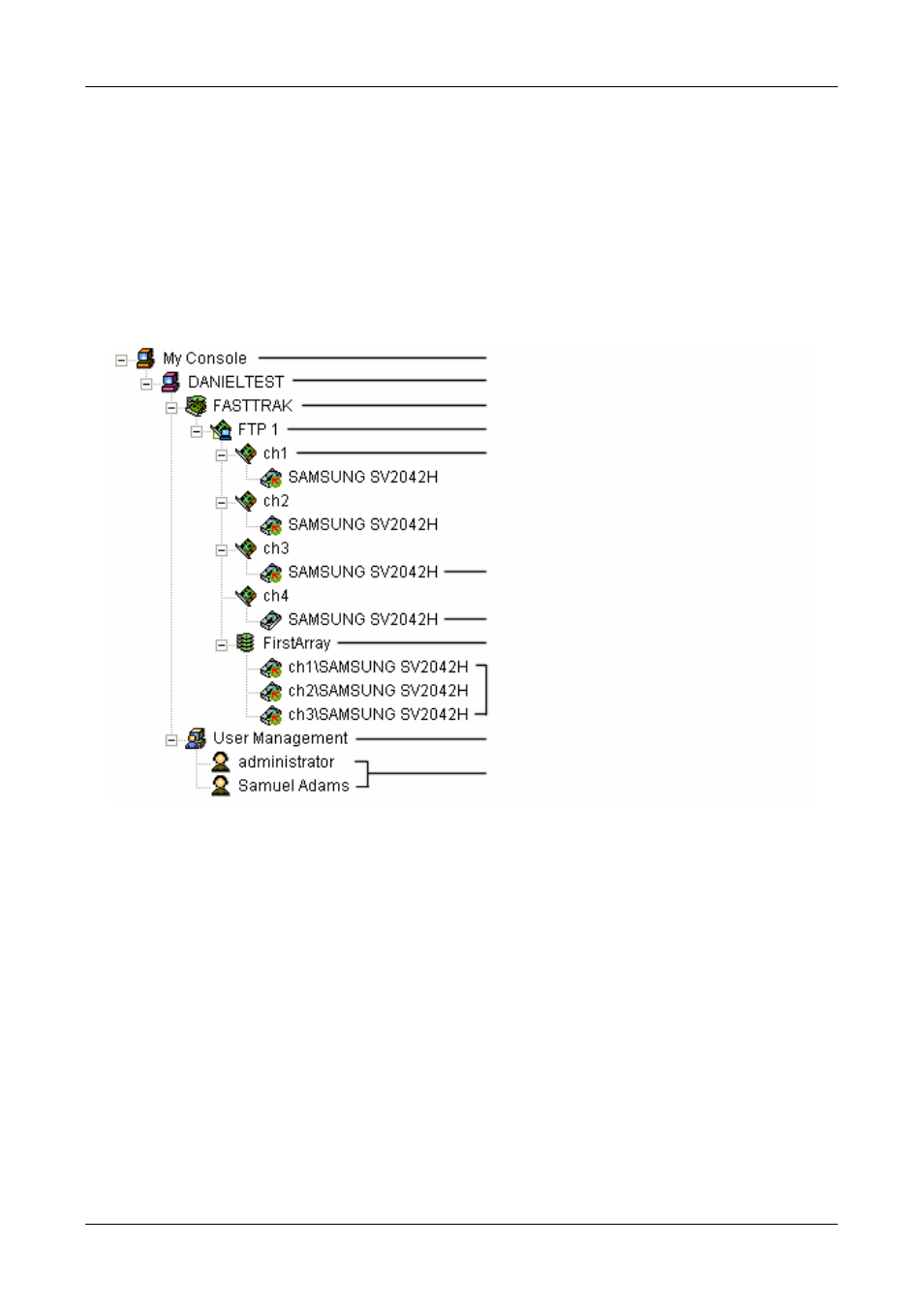

Figure 30. An example of a RAID system in Tree View on Local PAM.
Remote PAM adds a RAID Server icon to connect with the Message Server PC
in order to monitor arrays over a network.
PAM Software
RAID Machine (PC with FastTrak)
RAID System (FastTrak Card)
Controller
Channel 1
Assigned Drive on Channel 3
Unassigned Drive on Channel 4
Array
Drives Assigned to Array
User Management
Users
