Introduction
32
Model 3224 G.SHDSL IpDSLAM User Manual
5 • Maintenance
Introduction
This chapter describes replacing a Model 3224 power supply. If you require more help, refer to chapter 6,
“Contacting Patton for assistance”
Replacing a power supply
Model 3224 IpDSLAM power supplies are hot-swappable, so a defective supply can be replaced without deac-
tivating the IpDSLAM. Do the following to replace a malfunctioning power supply:
Note
You will need a flat-tip screwdriver to perform the following
procedure.

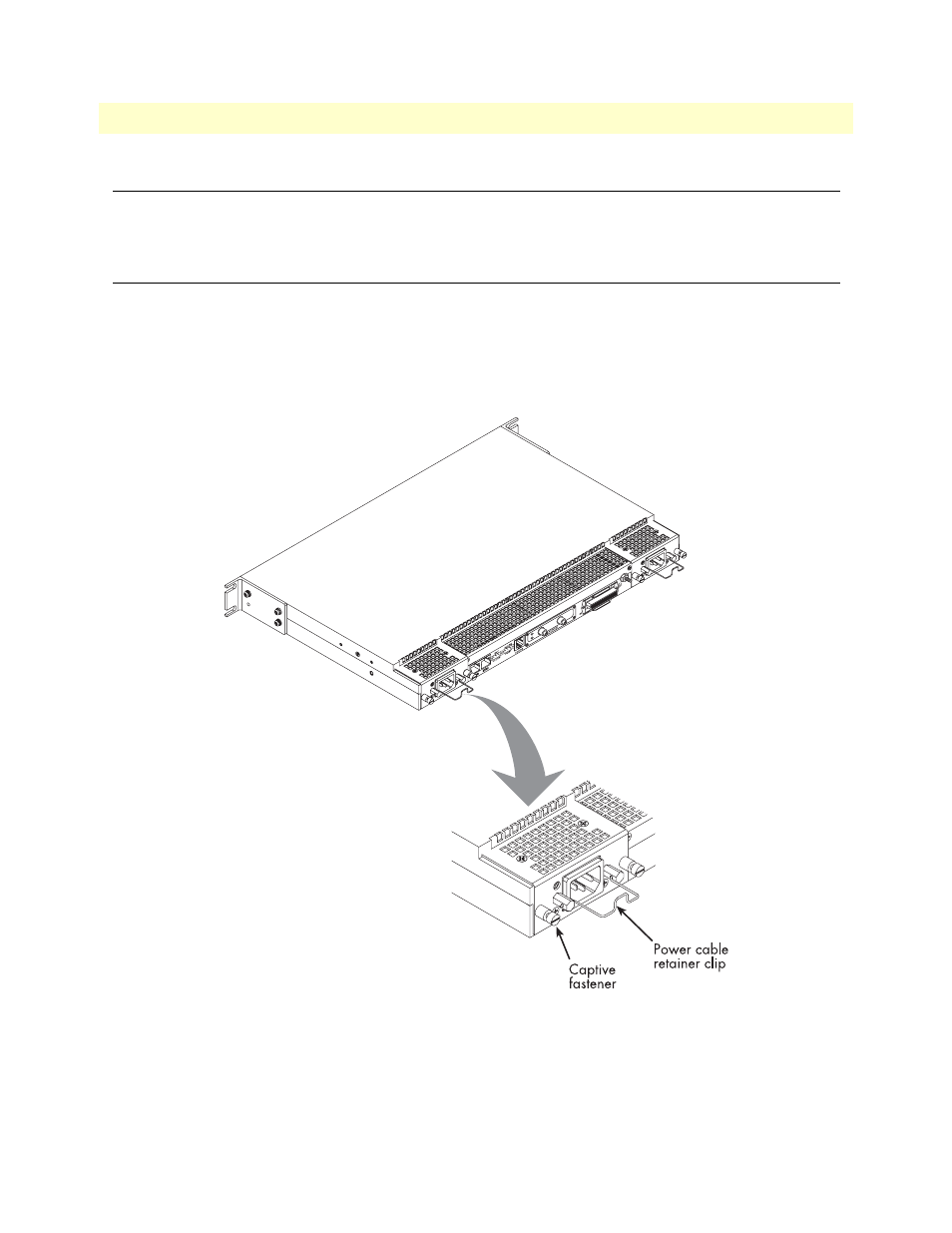

Figure 15. Captive fasteners and power cable retainer clip locations
1. At the malfunctioning power supply, rotate the power cable retaining clip (see
) so it is no longer
attached to the power cord.
2. Disconnect the power cable plug from the malfunctioning power supply.
