Cable installation 21
Model 3224 G.SHDSL IpDSLAM User Manual 2 • Hardware installation
Connecting the Ethernet ports
The IpDSLAM has two 10/100 Ethernet interfaces for connection to your LAN (see figure 9 ). The Ethernet
port will autosense the correct speed of the local LAN and automatically negotiate half- or full-duplex opera-
tion. This section describes connecting the IpDSLAM to the Ethernet LAN via an Ethernet hub, switch, or
workstation.

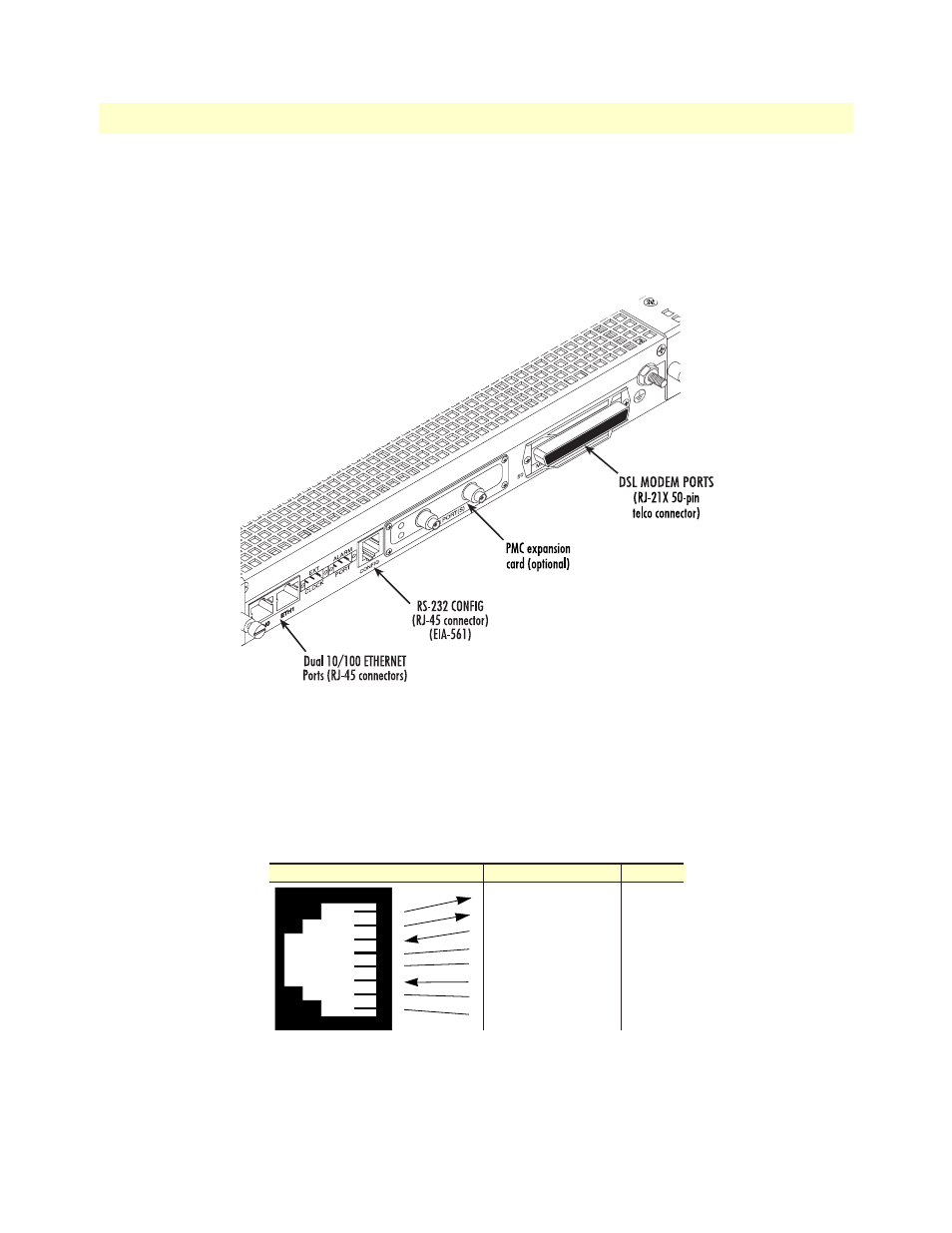

Figure 9. Model 3224 network and configuration ports
Connecting the 10/100Base-T Ethernet ports to an Ethernet switch or hub
The 10/100Base-T Ethernet ports (see
figure 9 ) are designed to connect to an Ethernet switch or hub. The
Ethernet RJ-45 pin and signal definitions for the IpDSLAM or for a NIC card in a workstation/PC are shown
in
figure 10 . Connect a straight-through CAT-5 cable (one wired as shown in figure 10 ) between the IpD-
SLAM and the hub/switch.
Figure 10. Straight-through RJ-45-to-RJ-45 Ethernet cable diagram
RJ-45 Jack
(TX+) Transmit Data +
(TX-) Transmit Data -
(RX+) Receive Data +
4
5
(RX-) Receive Data -
7
8
1
2
3
4
5
6
7
8
Direction Signal Name
3
1
2
6
Output
Output
Input
Input
