Model 3224 IpDSLAM overview 8
Model 3224 G.SHDSL IpDSLAM User Manual 1 • Introduction
Model 3224 IpDSLAM overview
The Model 3224 (see figure 1 ) connects up to 24 G.SHDSL devices to multiple WAN and Ethernet uplink
ports with completely flexible routing and packet filtering. The IpDSLAM combines dual-redundant, remov-
able power supplies, an IP firewall, a router, and a centralized management system into an ultra-sleek 1U chas-
sis. The subscriber side connects to compatible G.SHDSL modems for data rates up to 4.6 Mbps over a single
pair of copper wires. Expandable via optional industry standard PMC cards, the IpDSLAM provides numerous
different types of uplink options.
Each 4.6-Mbps G.SHDSL port requires only a single twisted pair (2-wires) for full-duplex data transmission at
ranges in excess of 5 km. The TC-PAM line encoding ensures spectral compatibility within existing voice/data
bundles. The entire system can be managed through SNMP/HTTP-based management screens from any
HTML browser.

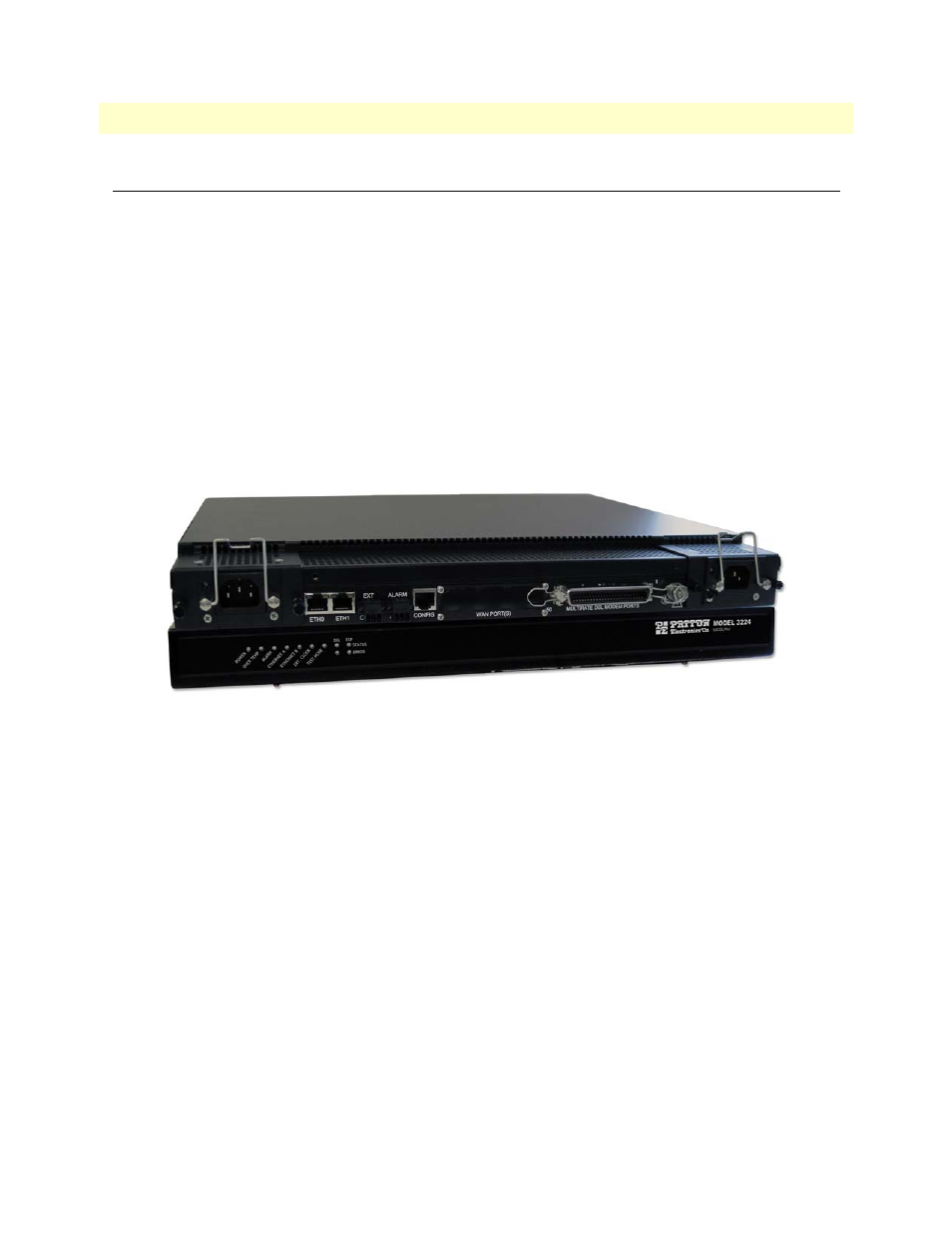

Figure 1. Model 3224 IpDSLAM
