Cable installation 19
Model 3224 G.SHDSL IpDSLAM User Manual 2 • Hardware installation
1. Connect the earth ground of the AC source to the grounding stud on the IpDSLAM as described in the
section “Grounding the Model 3224—AC and DC Power Supplies” on page 16.
2. Install a power cable into an IEC-320 connector (see figure 6 on page 17).
3. Rotate the power cable retainer clip so it secures the power cable plug in the IEC-320 connector as shown
in figure 7 .

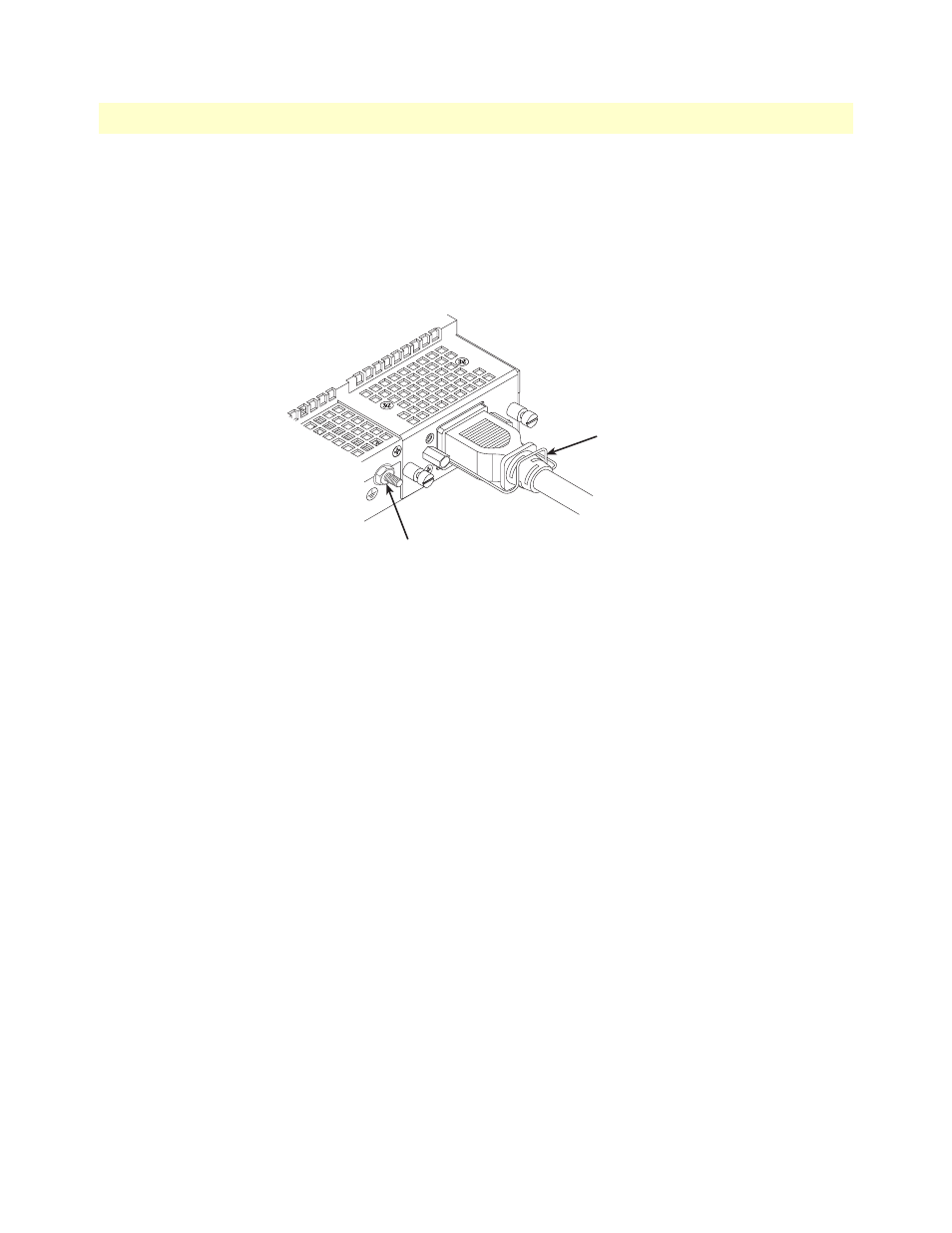

Figure 7. Power cable retainer clip
4. Repeat steps 2 and 3 to install the remaining power cable.
Power cable
retainer clip
Grounding stud
