2. Configuring the desired IP address 26
Model 3224 G.SHDSL IpDSLAM User Manual 3 • Initial configuration
3. Open a Telnet connection to the default LAN IP address of the IpDSLAM (192.168.200.10).
Log into the unit using the following:
login: admin
password:
Connecting and logging in via the Console port
1. To access the configuration via the console port, connect the DB9-RJ45 adapter to the DB-9 serial port
on the PC or dumb terminal. Use the RJ45 straight-through cable between the adapter and the console
port on the IpDSLAM. (see
figure 14 ).

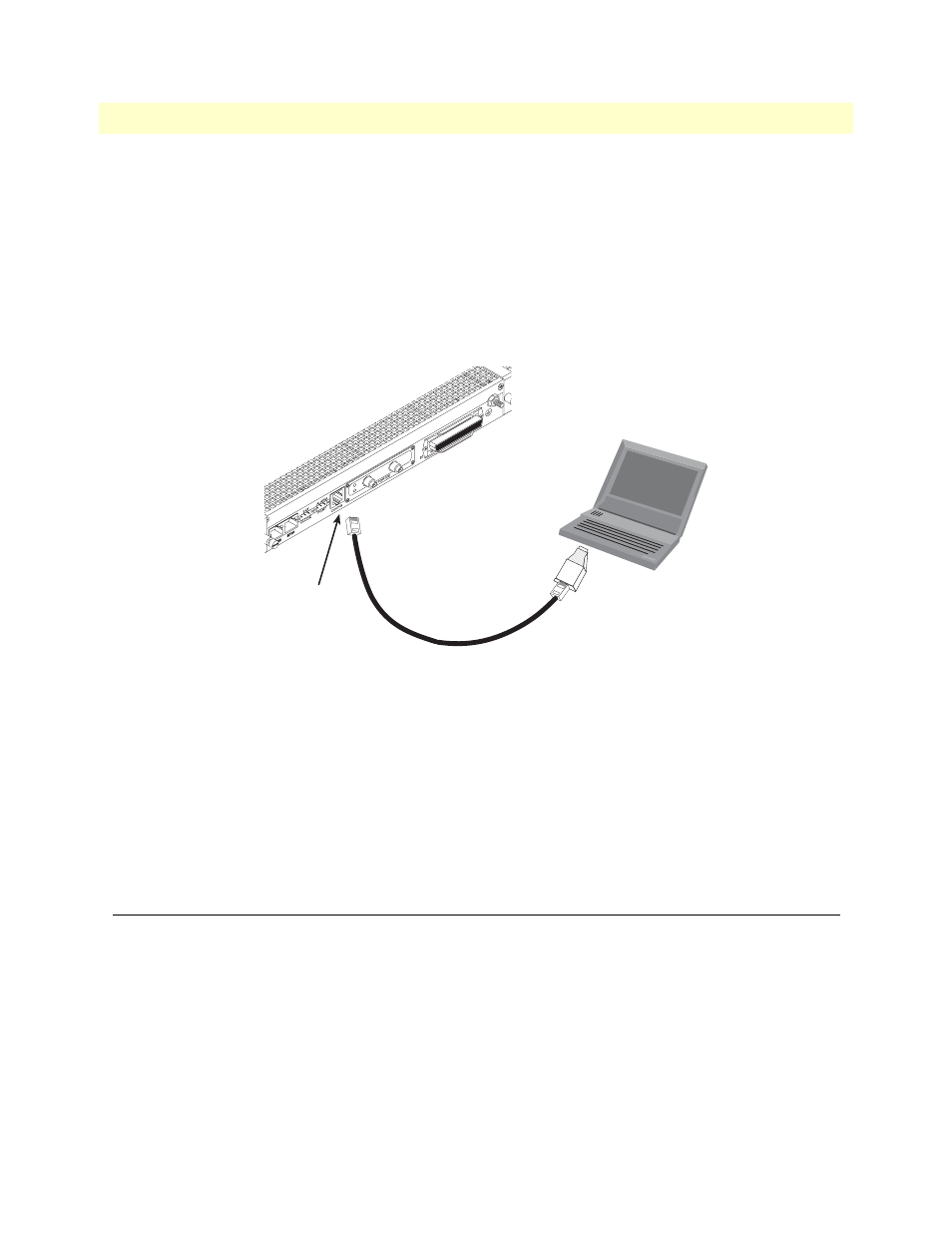

Figure 14. Connecting the IpDSLAM to your laptop PC via the console port
2. Do NOT connect the device to the Ethernet LAN now.
3. On the PC, start a HyperTerminal session at 19200 bps, 8 data bits, 1 stop bit, no flow control, and no
parity.
4. Log into the unit using the following:
login: admin
password:
2. Configuring the desired IP address
PC
Connect to Console port
Model 3224
192.168.200.10
DB-9 serial port
RJ45 to DB-9 adapter
