Utility Options 64
Model 2160 Series Getting Started Guide 4 • Web configuration
Upgrade
You can update the firmware of Model 2160 using the Upgrade function. Click Upgrade in the Utility menu.

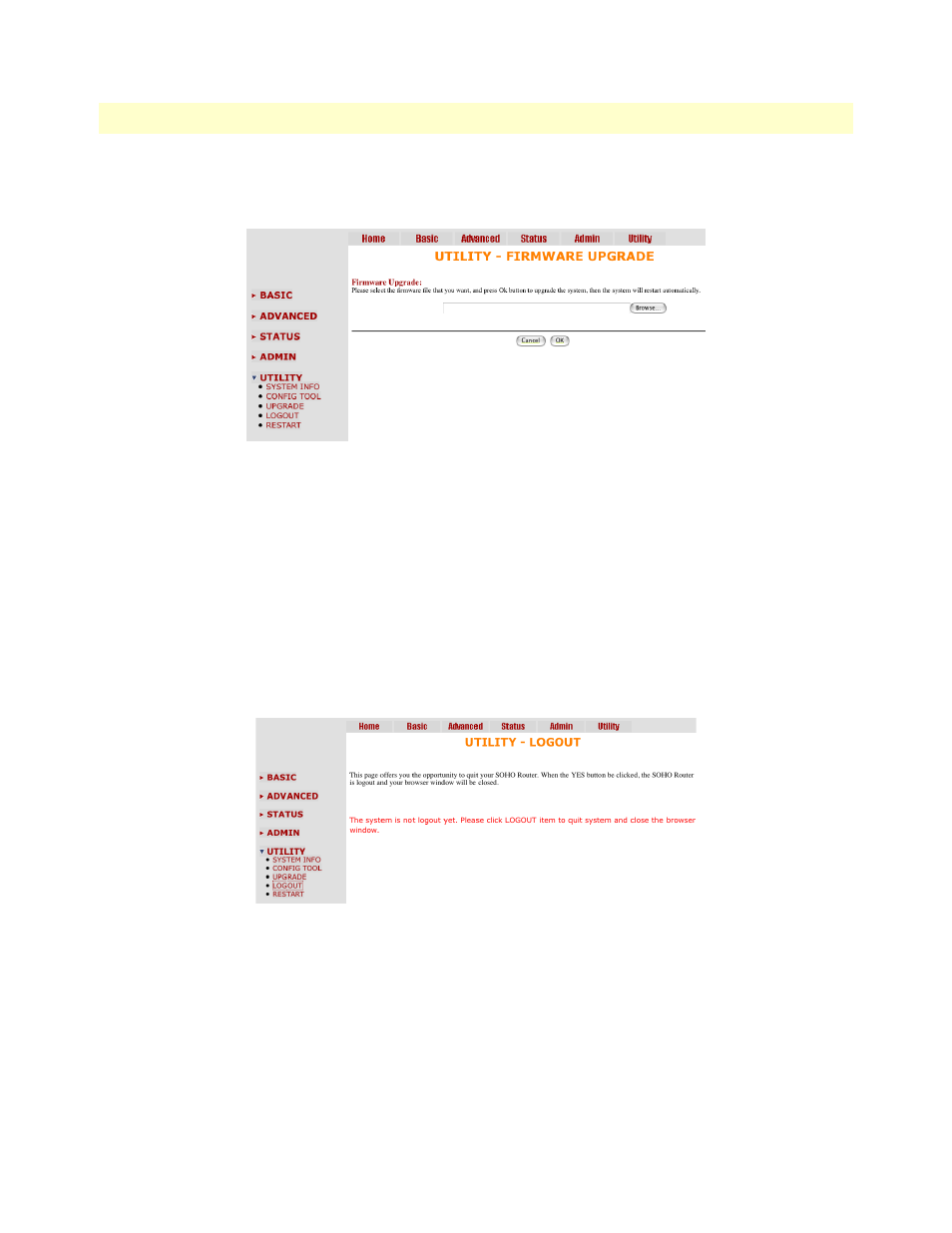

Figure 42. Upgrade page
Type the path and file name of the Firmware file you wish to upload to the Model 2160 in text box. Or, you
can also click Browse to locate the file. Click OK to begin the upgrade process. The system will reboot auto-
matically after finishing. (Firmware upgrades will only take effect after the system reboots).
After the firmware upgrade process is complete, click System Info in the Utility menu to verify your current
firmware version number.
Logout
To exit the Model 2160 Web Management Interface securely, click Logout in the Utility menu. You have to
log in with your password again after you log out. This is recommended after you finish a management session
for security reasons.
Figure 43. Logout page
